Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1996
>>
Aerostar AWD V6-245 4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Distribution Relay
Power Distribution Relay

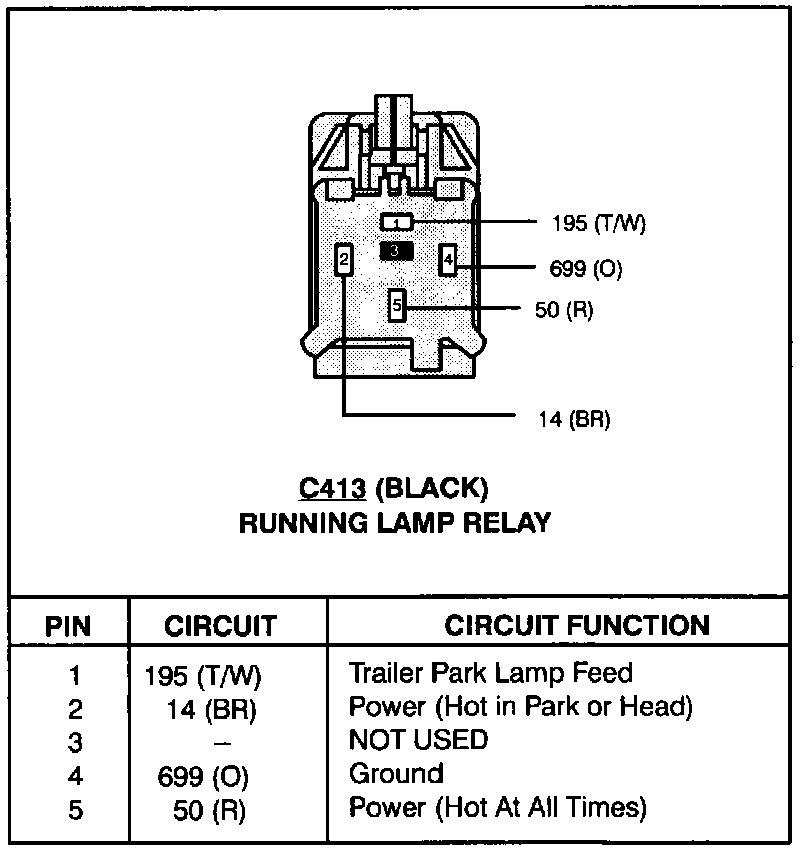

Running Lamp Relay:
