Front

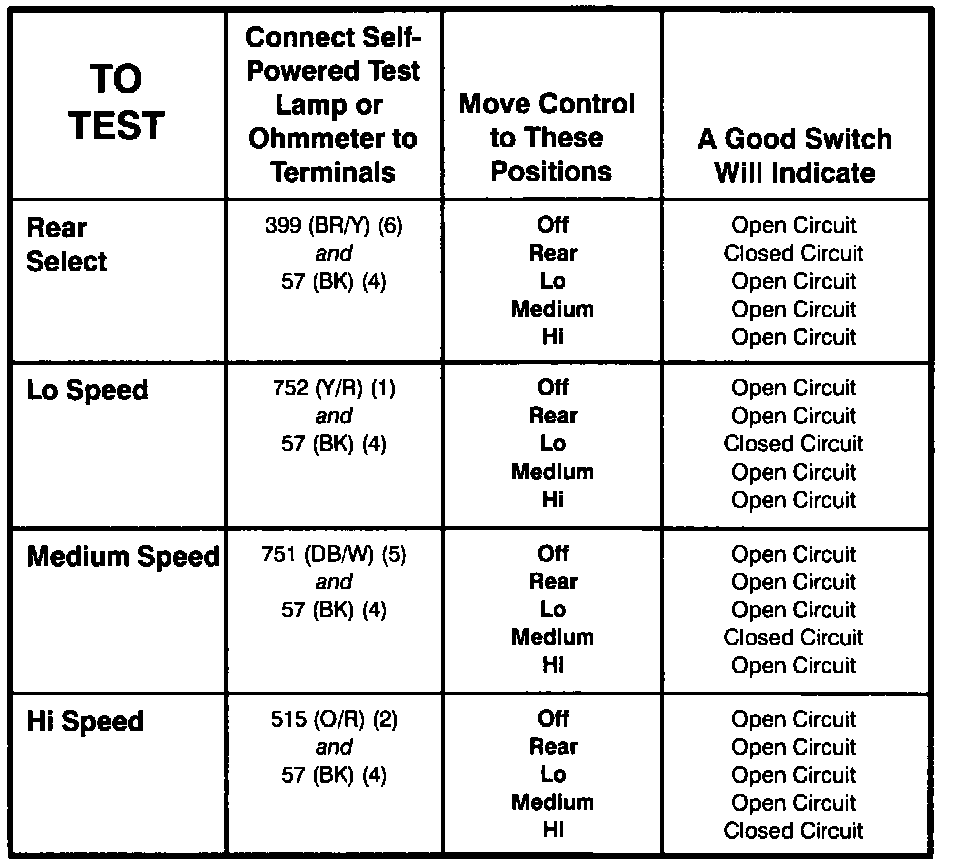

Front Auxiliary Blower Motor Switch - Component Testing Procedure:

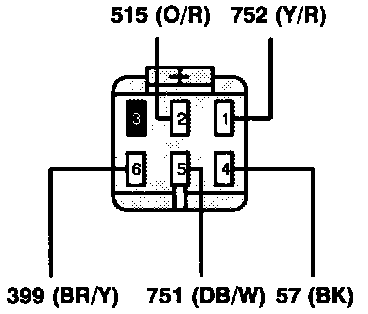

Front Auxiliary Blower Motor Switch - Terminal Locations:

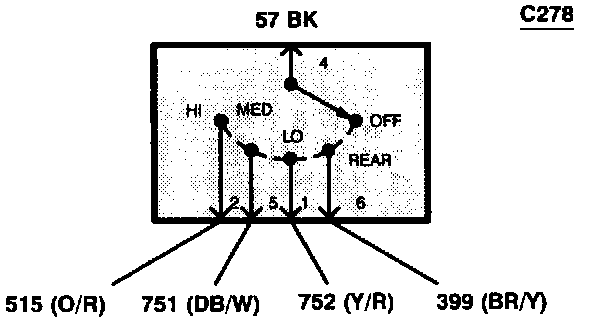

Front Auxiliary Blower Motor Switch - Schematic:
