Engine Compartment Views

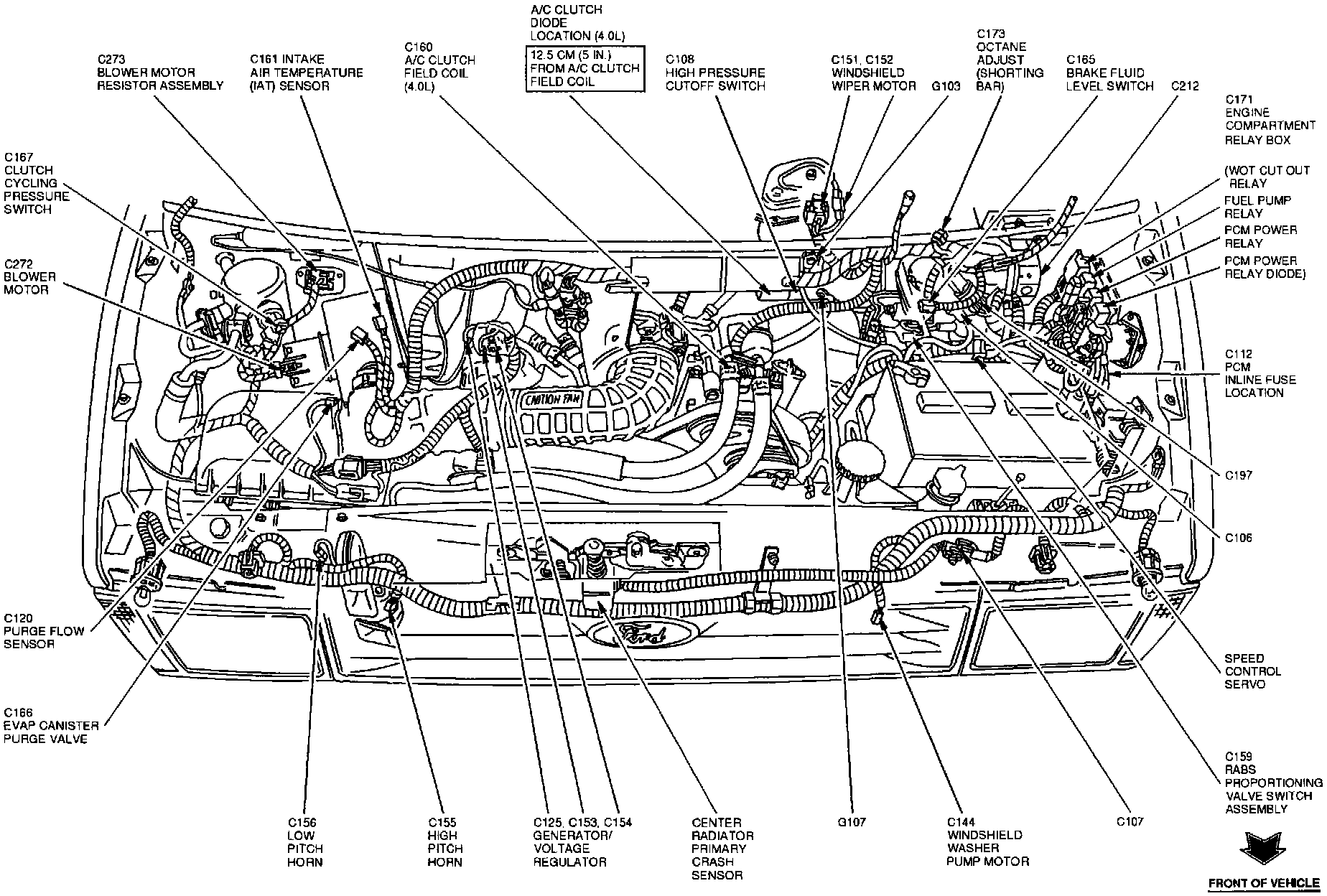

Engine Compartment View:

A/C CLUTCH DIODE
A/C CLUTCH FIELD COIL
BLOWER MOTOR
BLOWER MOTOR RESISTOR ASSEMBLY
BRAKE FLUID LEVEL SWITCH
CENTER RADIATOR PRIMARY CRASH SENSOR
CLUTCH CYCLING PRESSURE SWITCH
ENGINE COMPARTMENT RELAY BOX
EVAPORATIVE CANISTER PURGE VALVE
FUEL PUMP RELAY
GENERATOR/VOLTAGE REGULATOR
HIGH PITCH HORN
HIGH PRESSURE CUTOFF SWITCH
INTAKE AIR TEMPERATURE SENSOR
LOW PITCH HORN
OCTANE ADJUST (SHORTING BAR)
PCM POWER INLINE FUSE
PCM POWER RELAY
PCM POWER RELAY DIODE
PURGE FLOW SENSOR
REAR ANTI-LOCK BRAKE SYSTEM PROPORTIONING VALVE SWITCH ASSEMBLY
SPEED CONTROL SERVO
WIDE OPEN THROTTLE CUT OUT RELAY
WINDSHIELD WASHER PUMP MOTOR
WINDSHIELD WIPER MOTOR

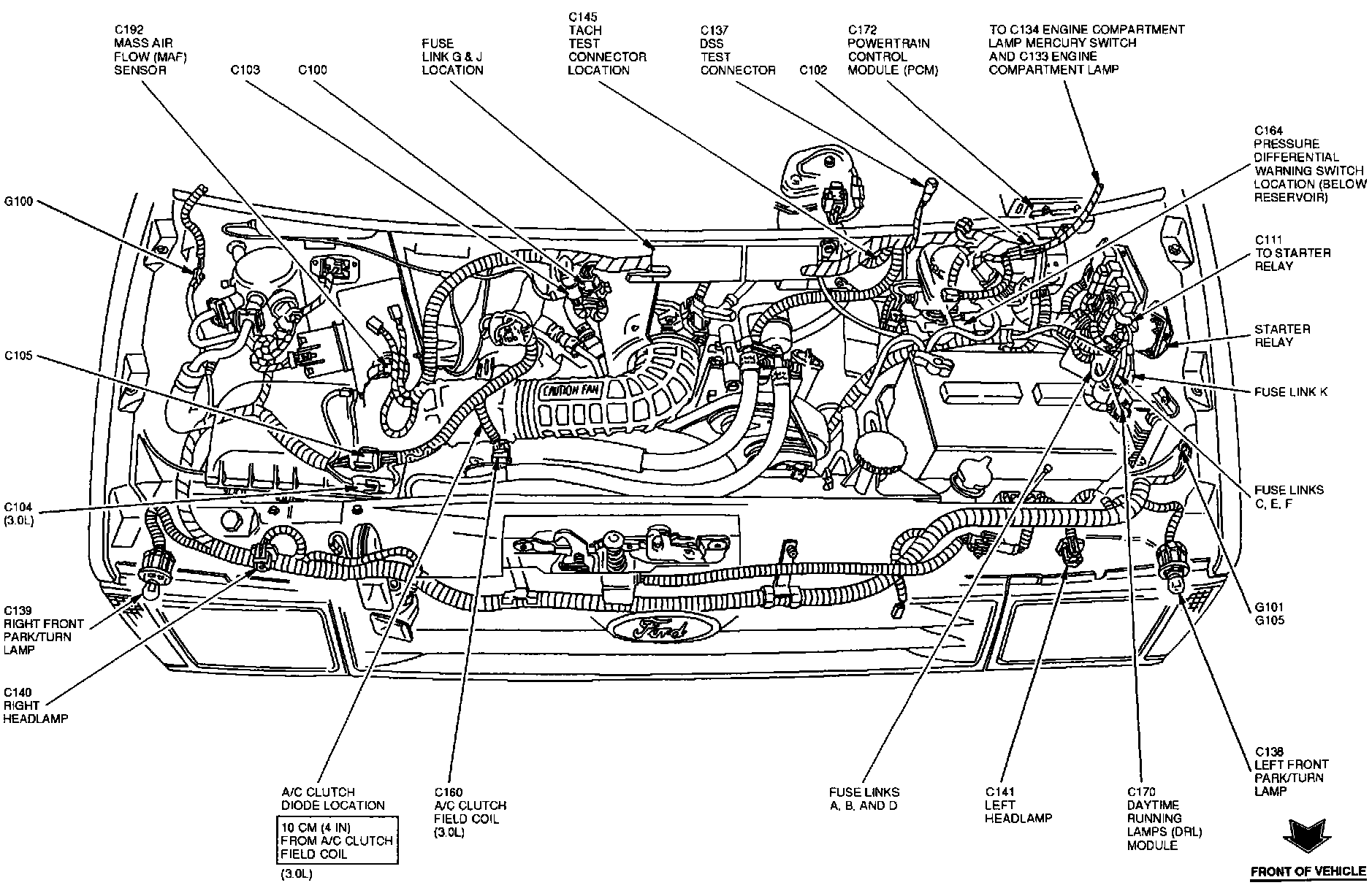

Engine Compartment View:

DAYTIME RUNNING LAMPS MODULE
DIFFERENTIAL SPEED SENSOR TEST CONNECTOR
ENGINE COMPARTMENT LAMP
ENGINE COMPARTMENT LAMP MERCURY SWITCH
FUSE LINK G & J
FUSE LINK K
FUSE LINKS A,B AND D.
FUSE LINKS C,E AND F
LEFT FRONT PARK/TURN LAMP
LEFT HEADLAMP
MASS AIR FLOW SENSOR
POWERTRAIN CONTROL MODULE
PRESSURE DIFFERENTIAL WARNING SWITCH
RIGHT FRONT PARK/TURN LAMP
RIGHT HEADLAMP
STARTER RELAY
TACHOMETER TEST CONNECTOR
