Electrical Diagrams

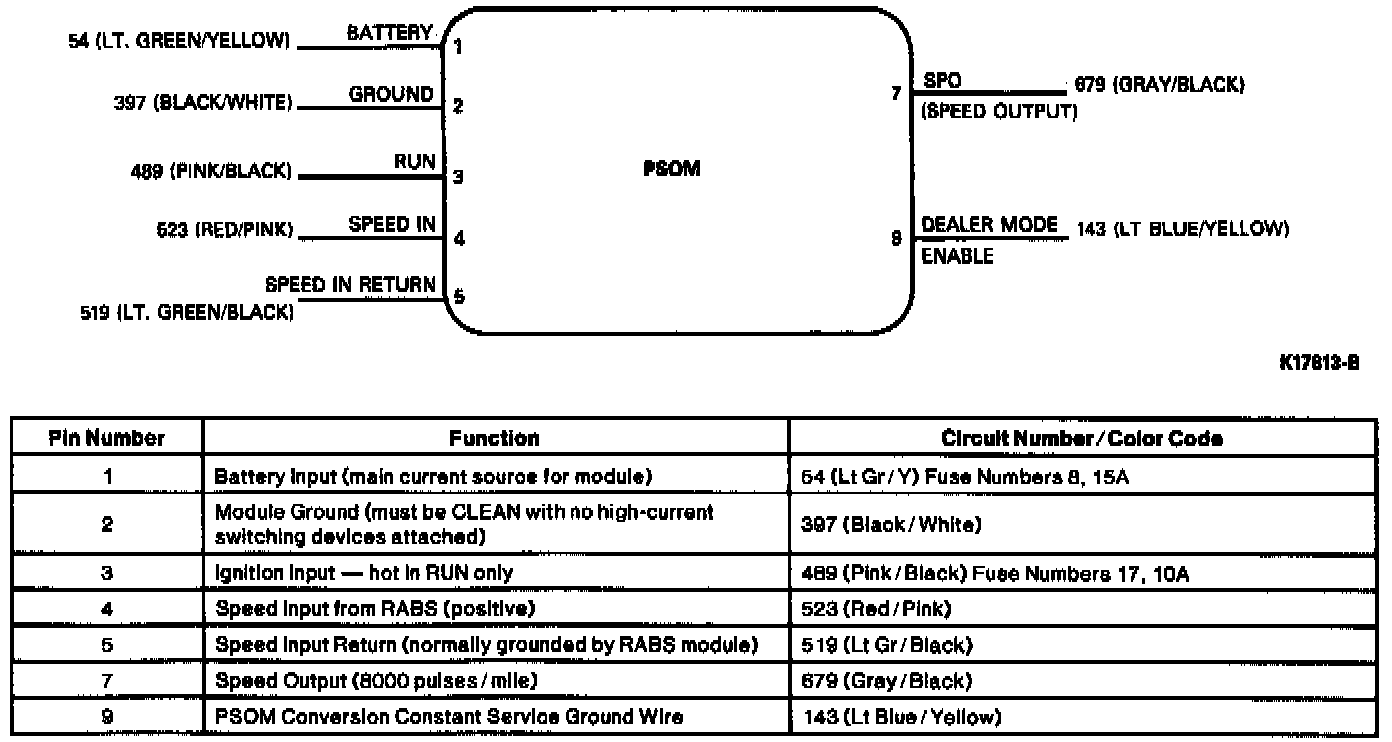

Block Wiring Diagram, Programmable Speedometer/Odometer Module.:

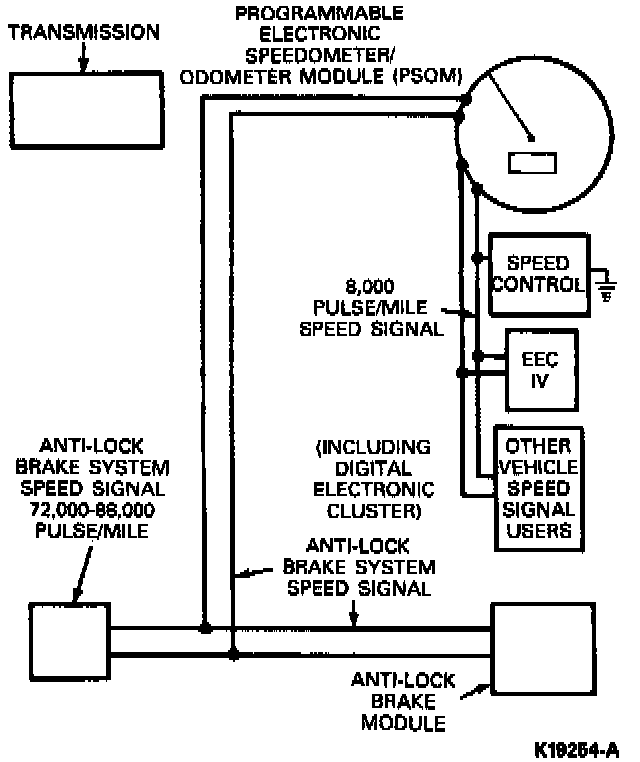

System Block Diagram, PSOM.:
