Power Window Switch: Testing and Inspection

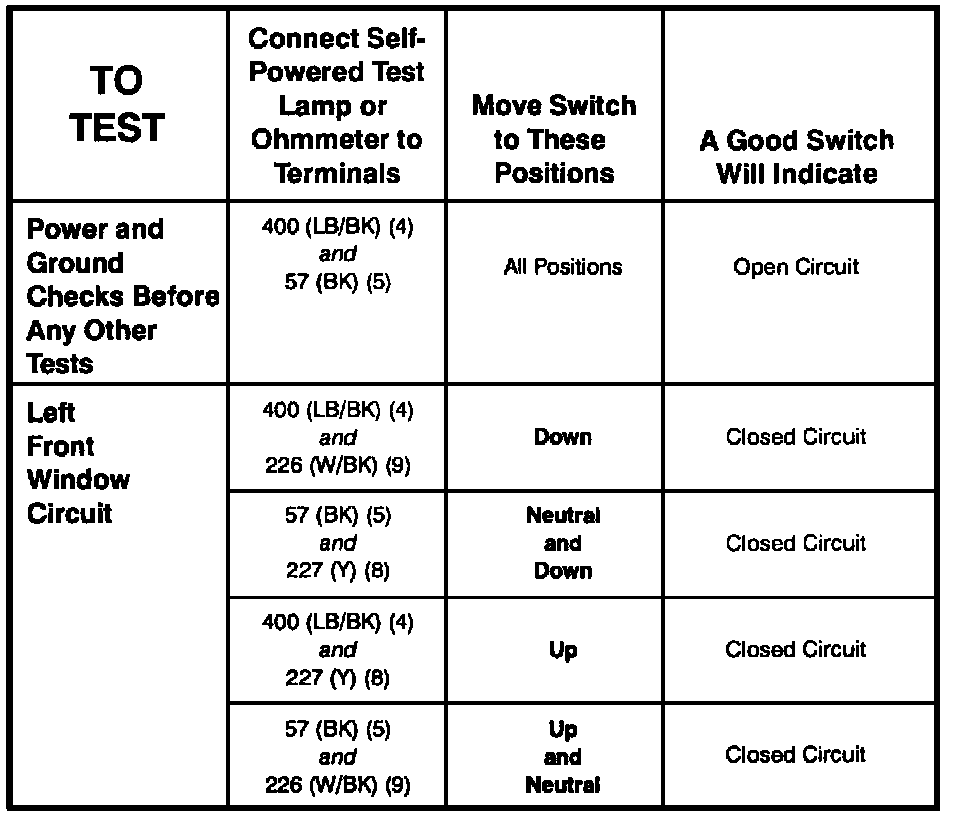

Master Window/Door Lock Switch - Component Testing Procedure (Part 1 Of 2):

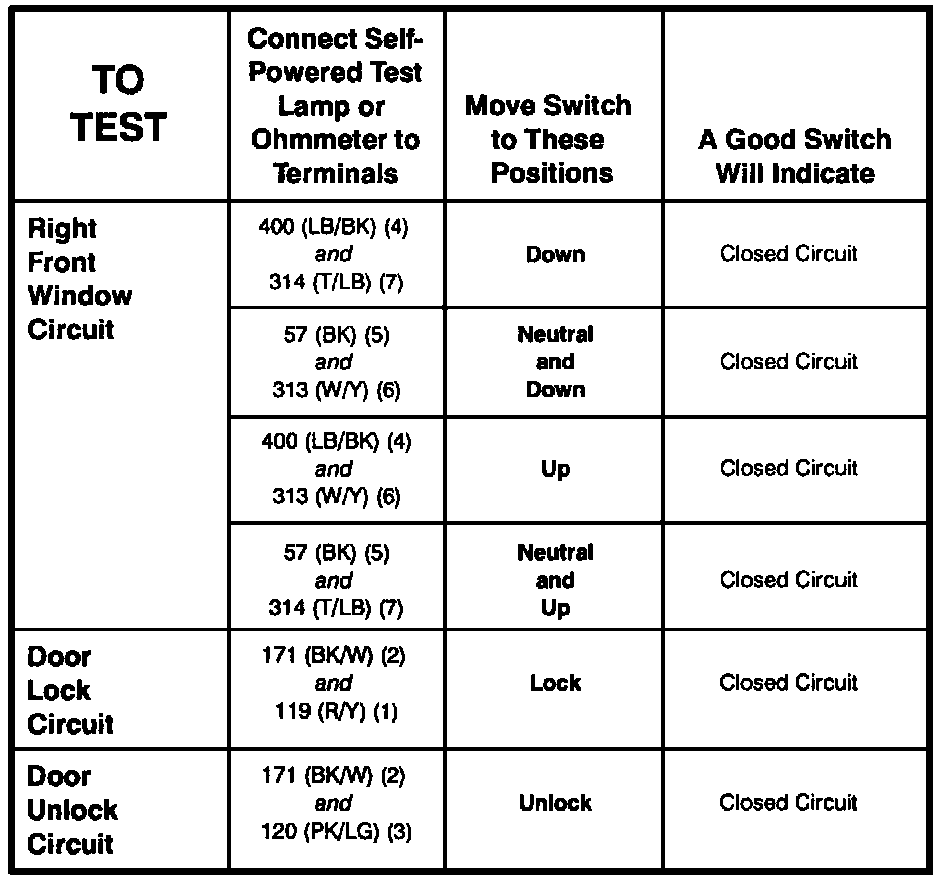

Master Window/Door Lock Switch - Component Testing Procedure (Part 2 Of 2):

Master Window/Door Lock Switch - Terminal Locations:

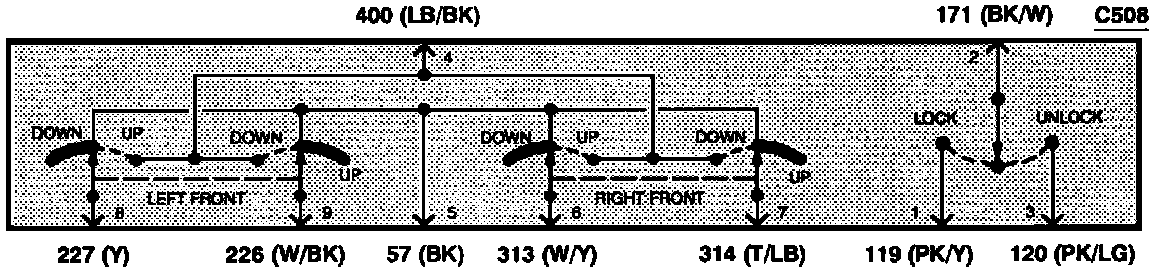

Master Window/Door Lock Switch - Schematic:
