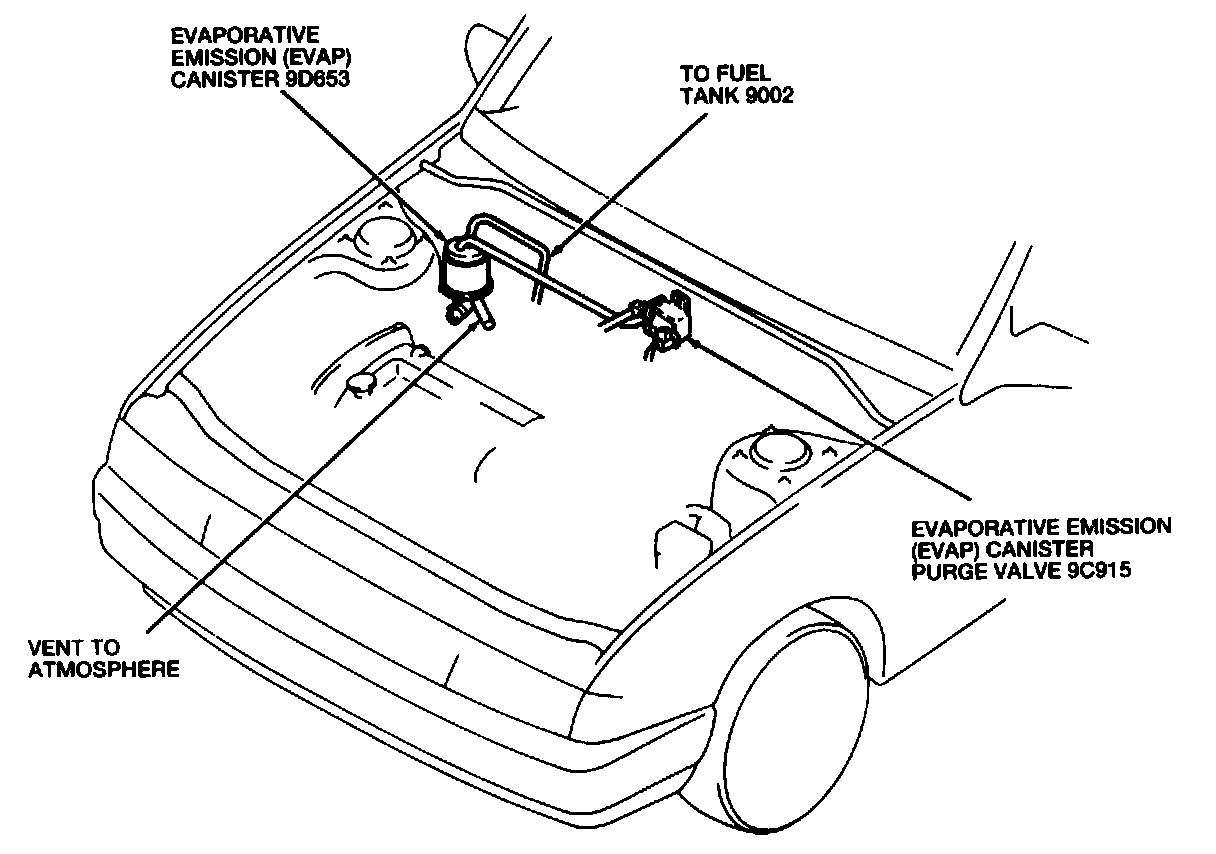

Evaporative Emissions System: Locations

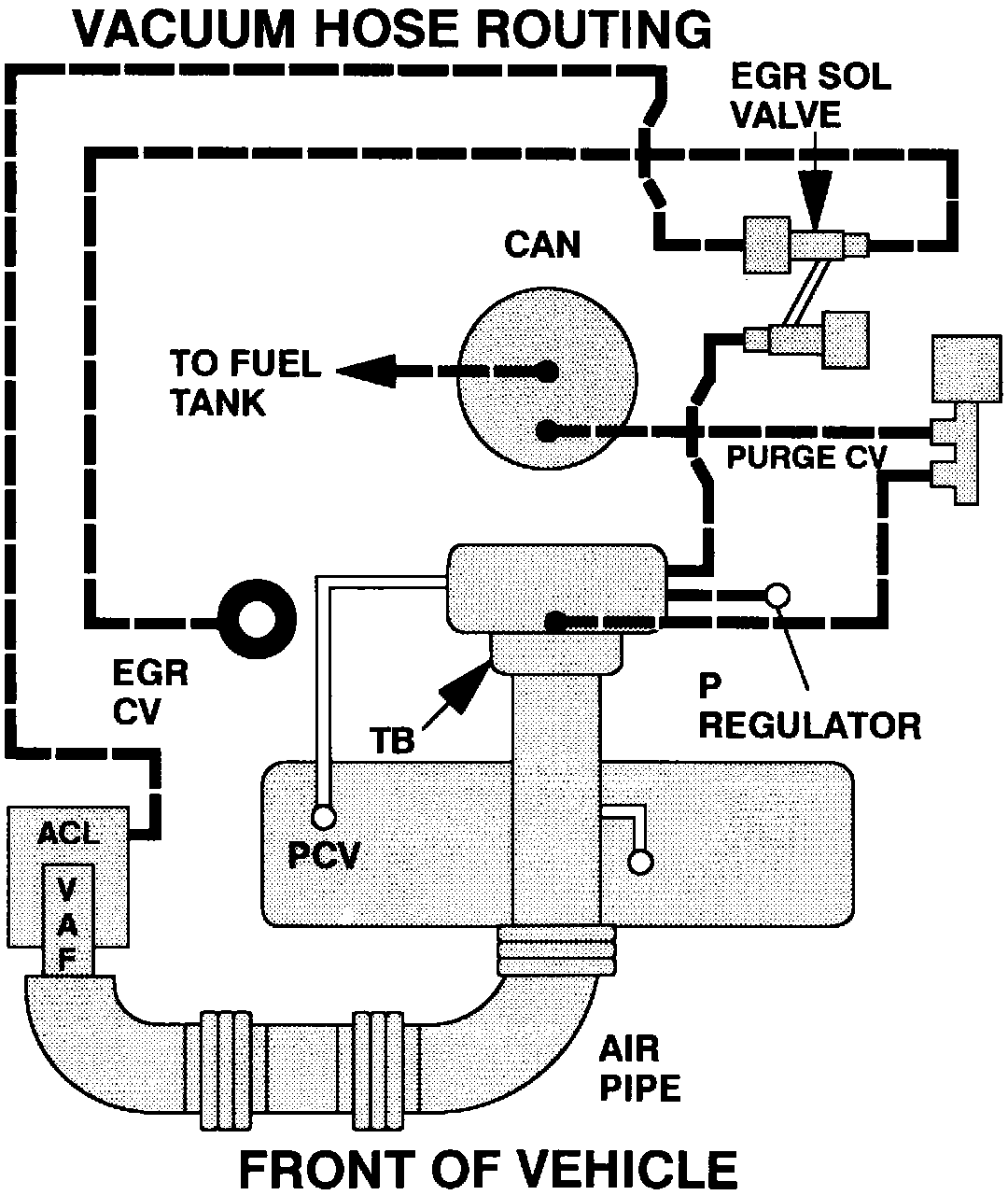

Vacuum Distribution:

Mounted on the RH side of the bulkhead, in the engine compartment.

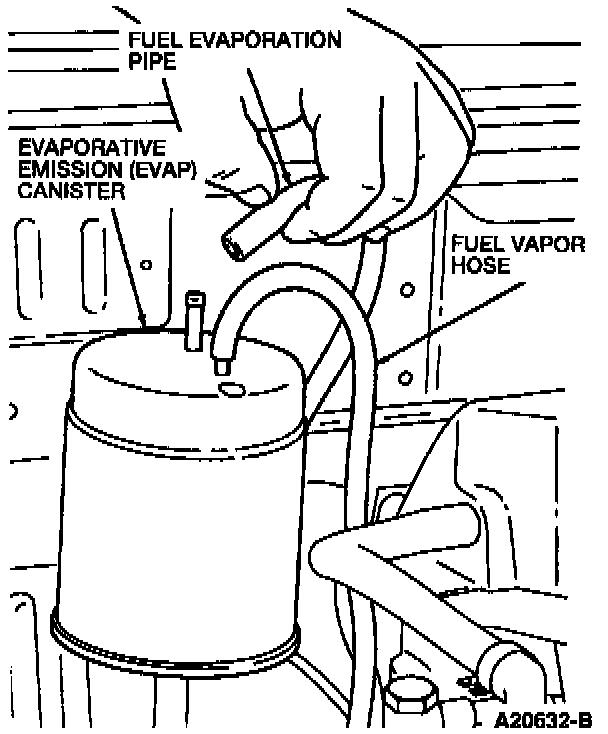

Evaporative Emission Canister:

1. Disconnect the fuel evaporation pipe from the Evaporative Emissions (EVAP) canister.
2. Disconnect the evaporative emission hose from the EVAP canister.

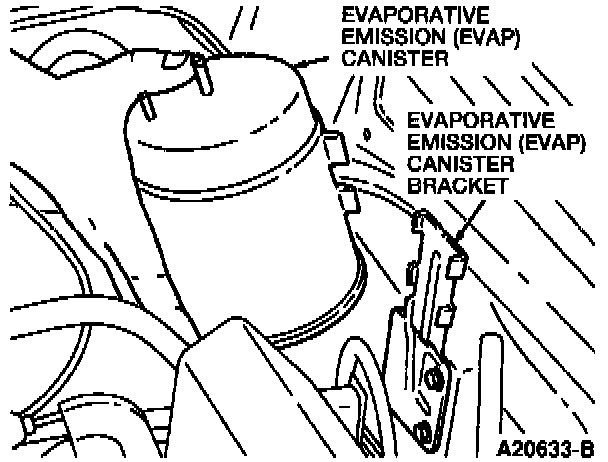

Evaporative Emission Canister:

3. Slide the EVAP canister up and out of the EVAP canister bracket.
4. To install, reverse the removal procedure.
