A: Speed Control Inoperative

Test A: Speed Control Inoprative.:





Test A1 - A5.

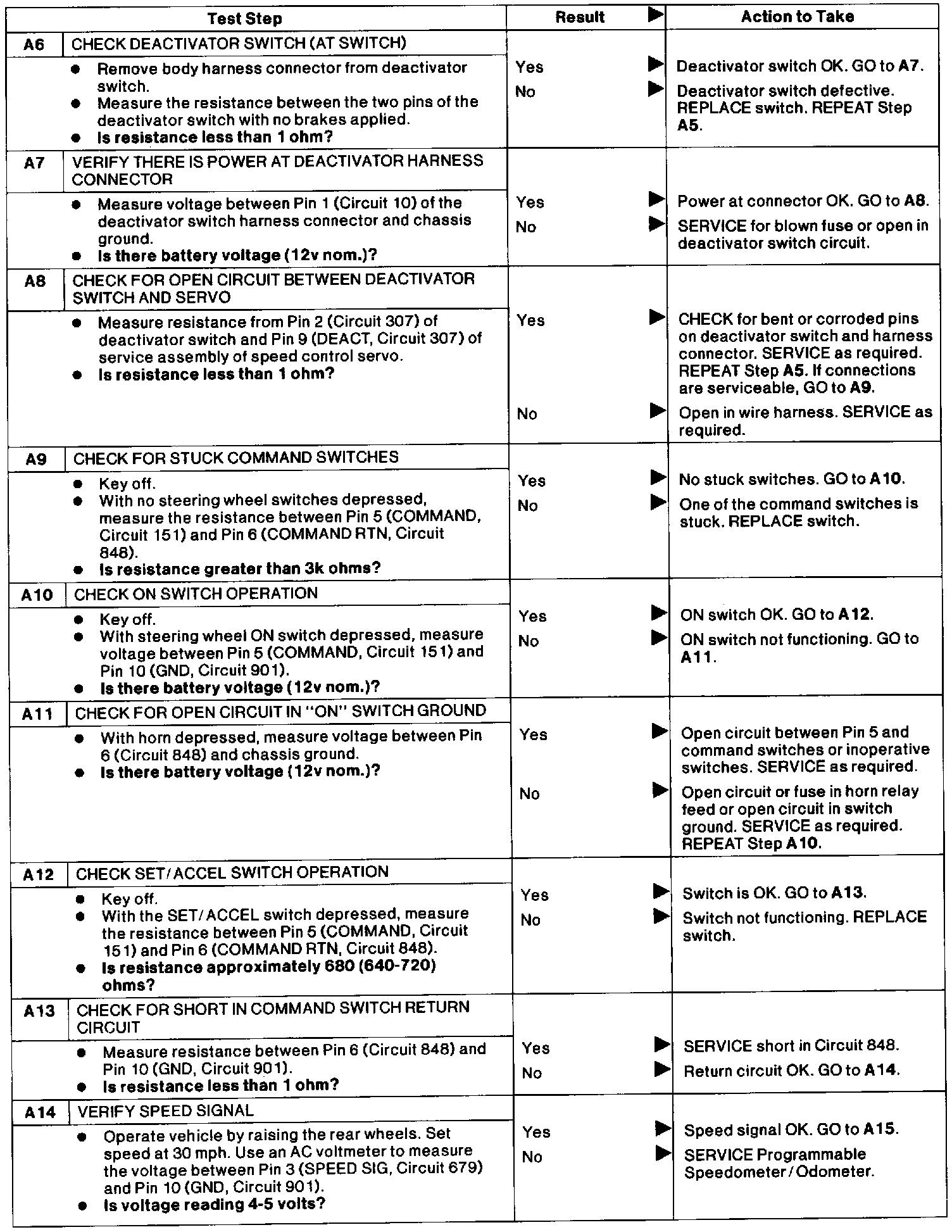

Test A: Speed Control Inoprative.:





Test A6 - A14.

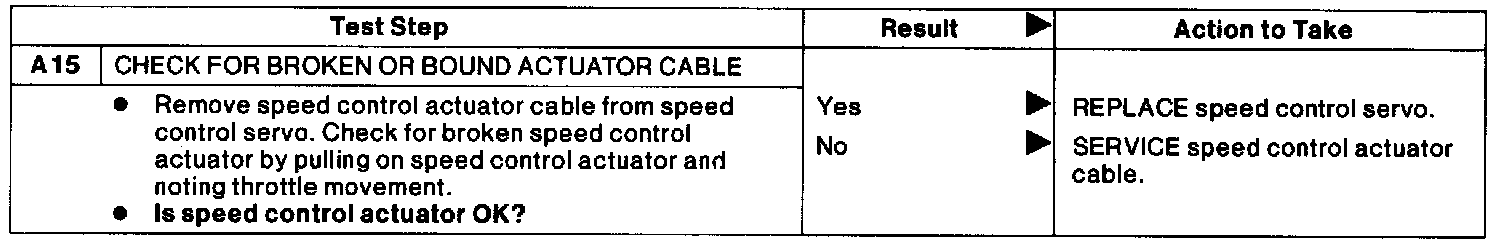

Test A: Speed Control Inoprative.:





Test A15.
