Bronco Full Size V8-351 5.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
Electronic Brake Control Module
Electronic Brake Control Module

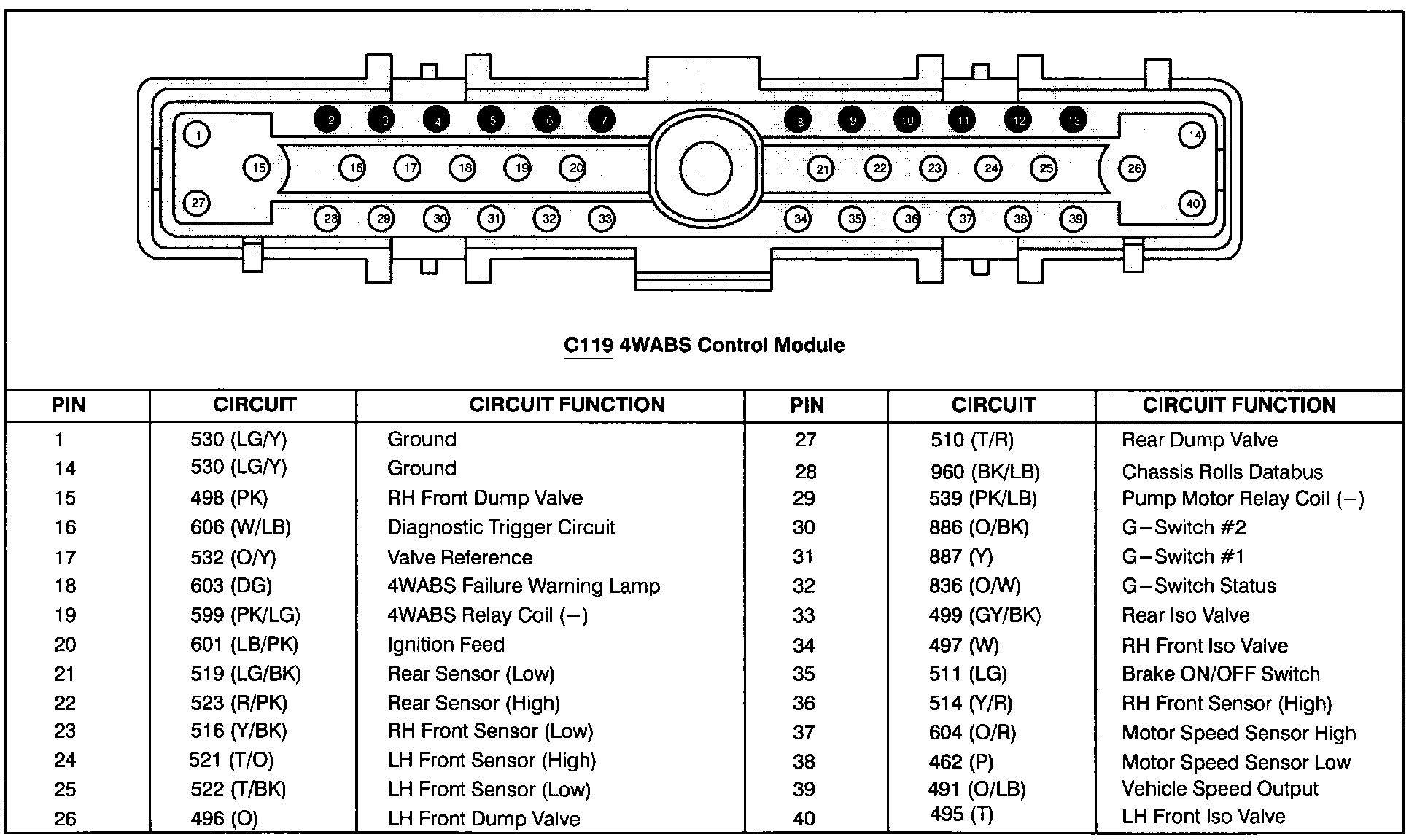

4 Wheel Anti-Lock Brake System Control Module:
