Home
>>
Ford
>>
1996
>>
Bronco Full Size V8-351 5.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
System Diagram
System Diagram

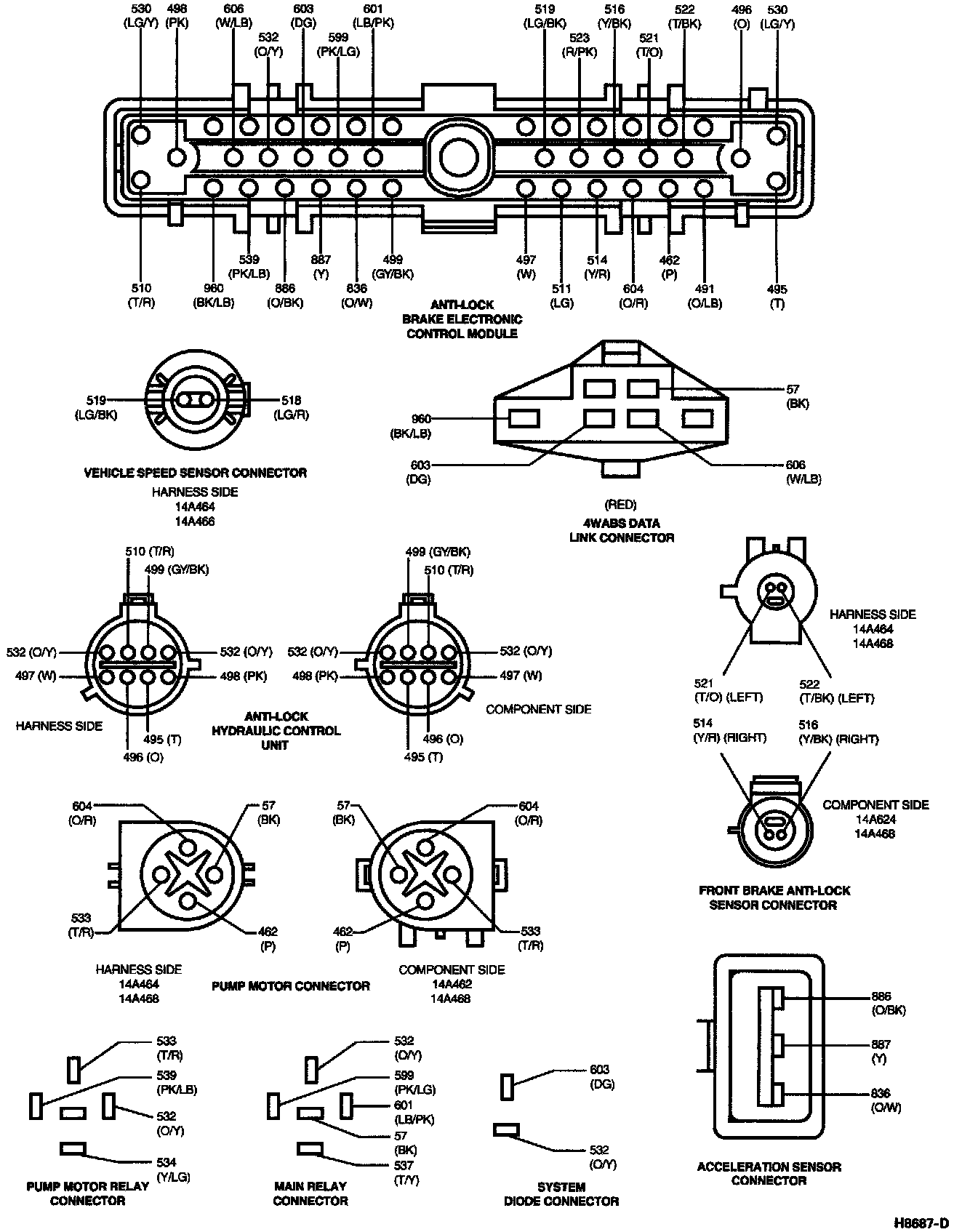

4WABS Connector Views:
