Power Door Lock Switch
>>
Master/Left
>>
With Remote/Keyless Entry
With Remote/Keyless Entry

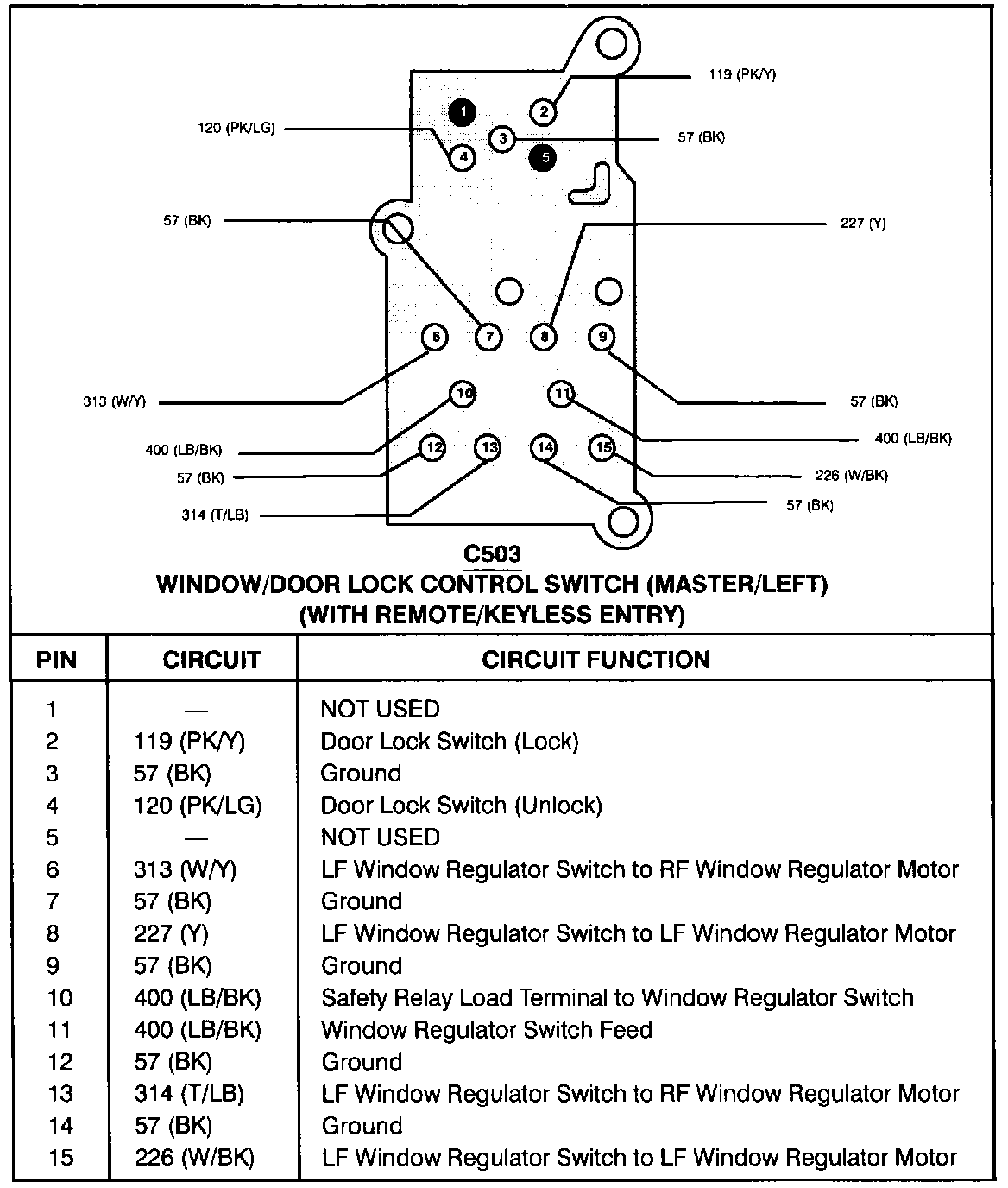

Window/Door Lock Control Switch (Master/Left) (With Remote Keyless Entry):
