Home >> Ford >> 1996 >> Bronco Full Size V8-351 5.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Door Lock Switch >> Master/Left >> Without Remote/Keyless Entry

Without Remote/Keyless Entry

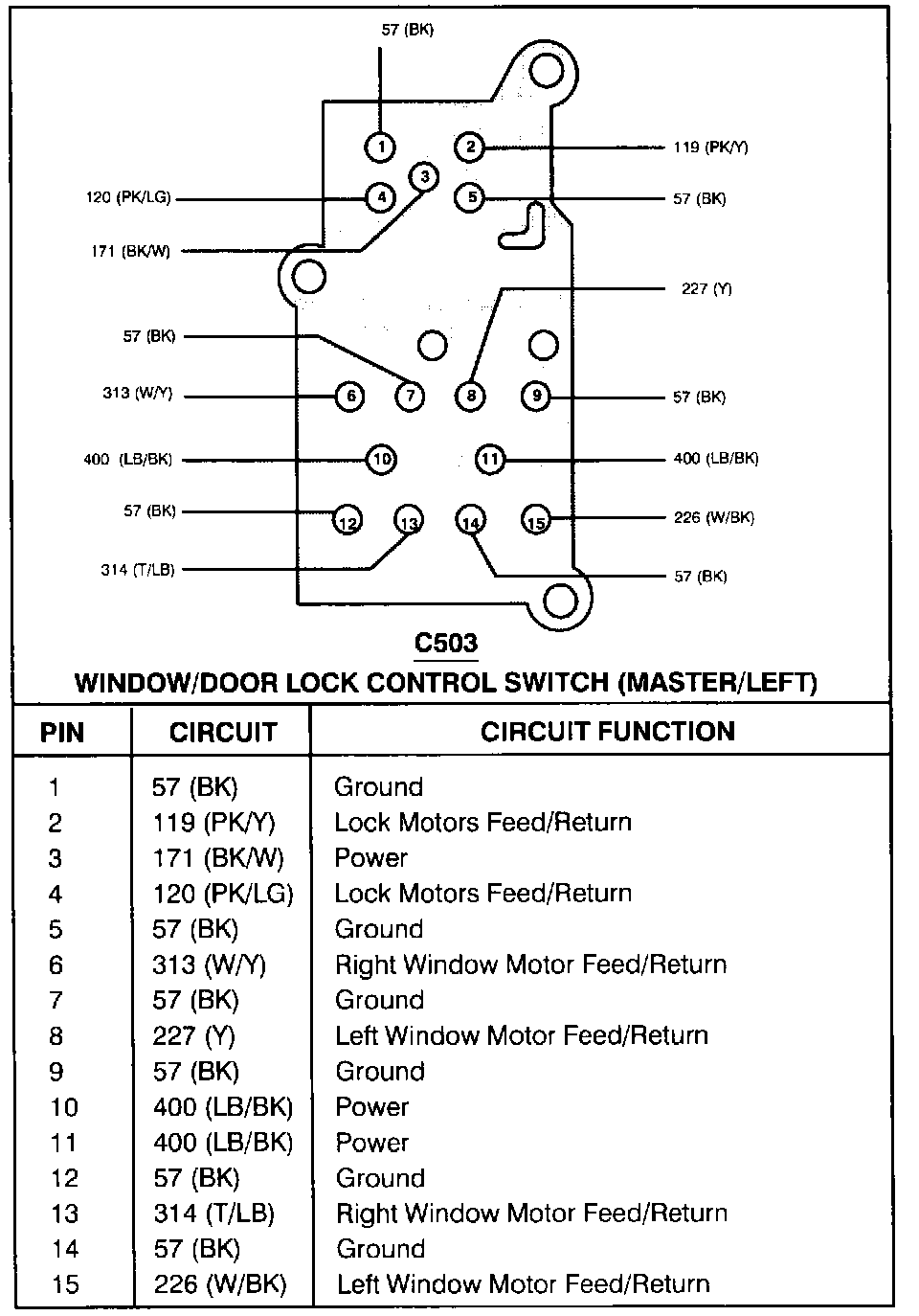

Window/Door Lock Control Switch (Master/Left):
