Radio Jumper (Premium Sound only)
Radio Jumper (Premium Sound only)
Radio Jumper (C257):

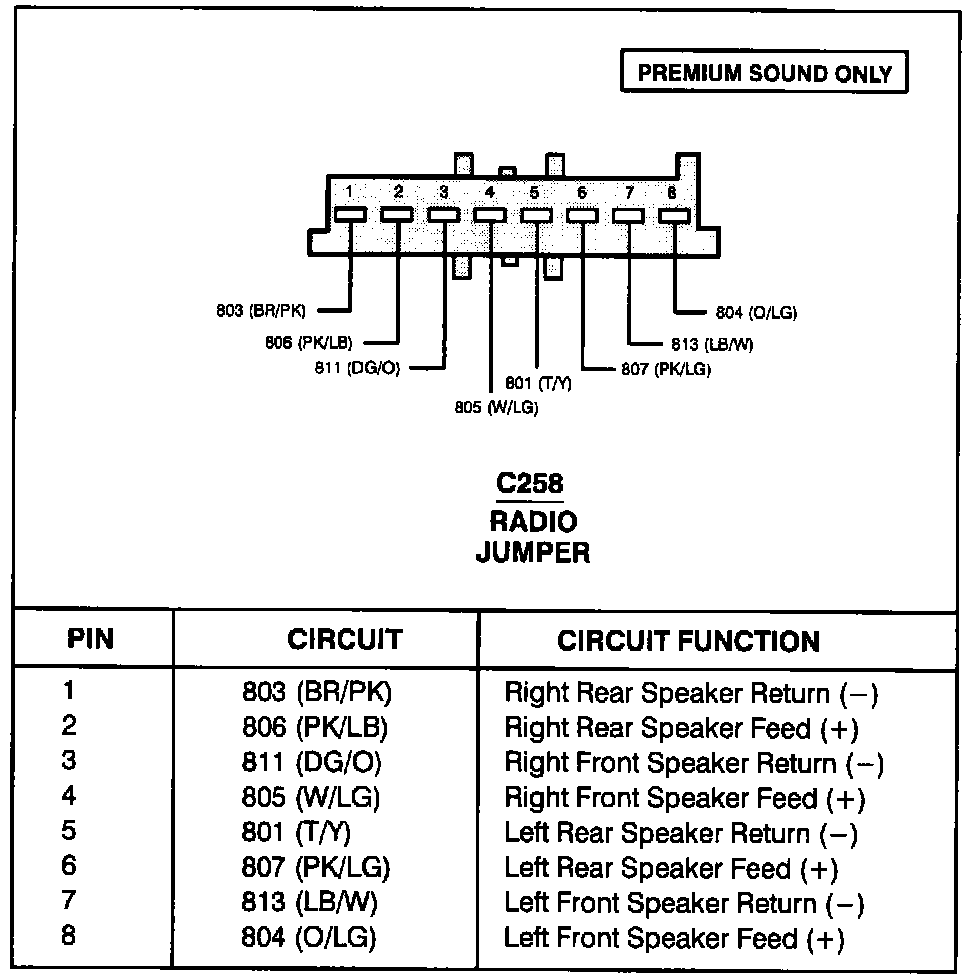

Radio Jumper (C258):
