Fuse 3

Fuse 3 - protects the following circuits:
^ Horn Relay
^ Daytime Running Lamps
^ Multi-Function Switch
^ Speed Control

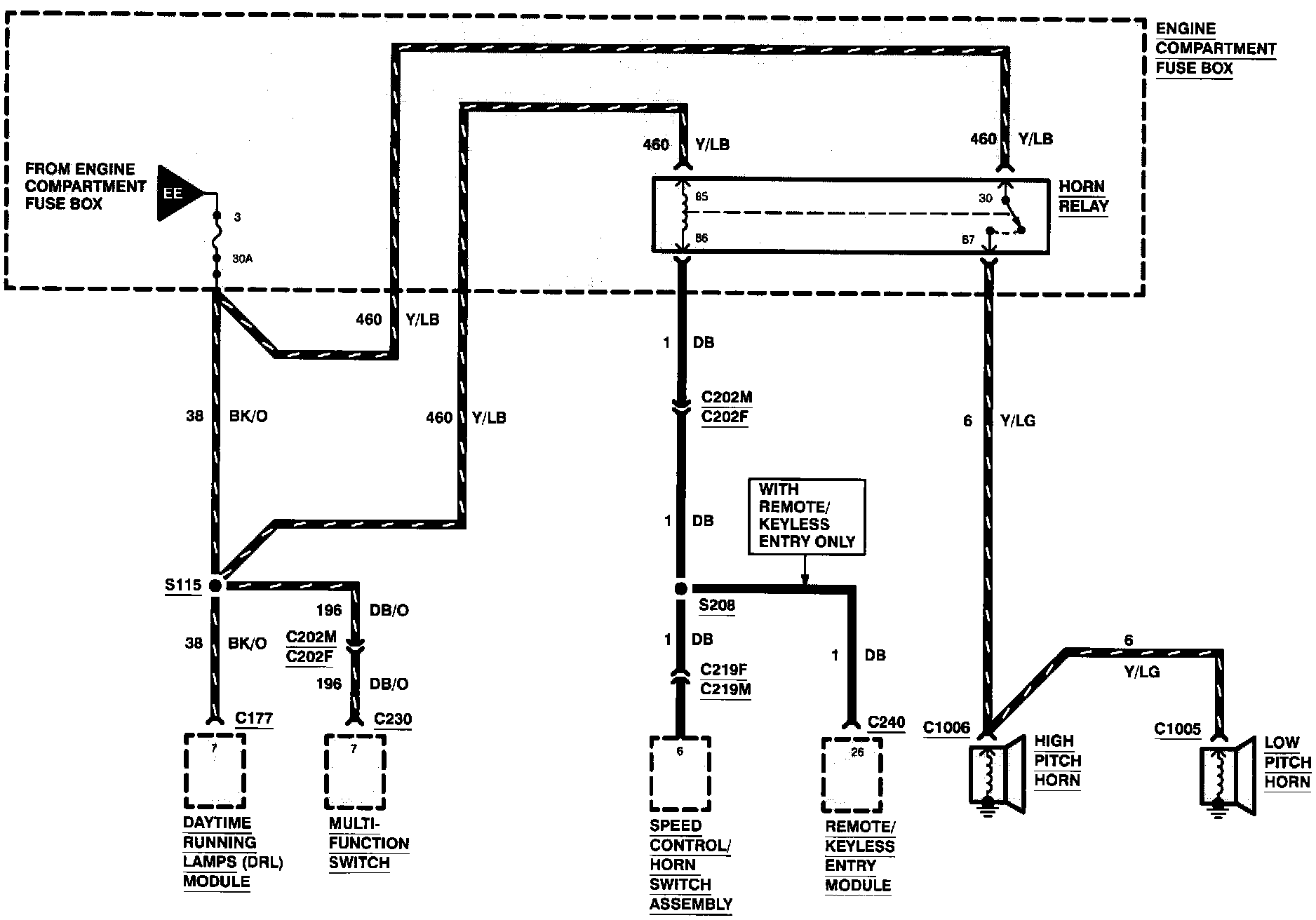

Power Distribution:




Power Distribution:




Power Distribution:
