Function Selector Switch

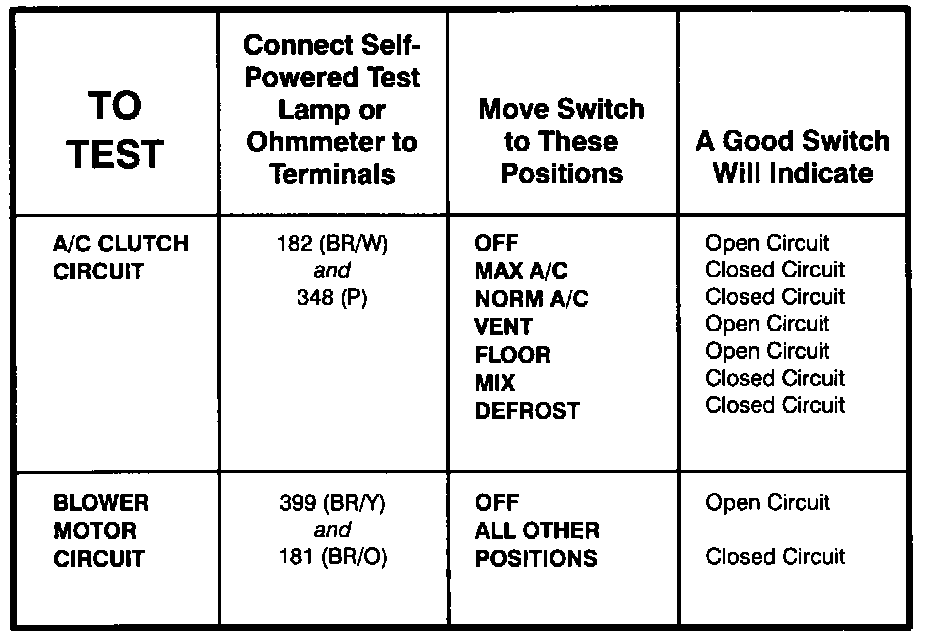

A/C Heater Control Assembly - Component Testing Procedure:

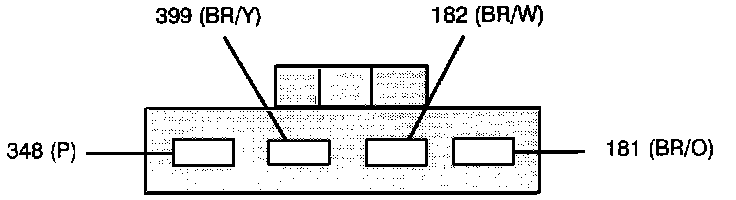

A/C Function Selector Switch - Terminal Locations:

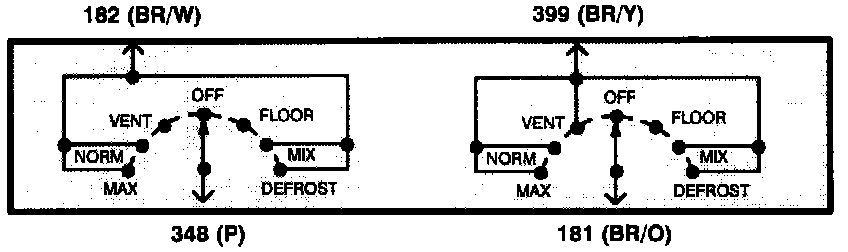

A/C Heater Control Assembly - Schematic:
