Heater Control Assembly
Heater Control Assembly

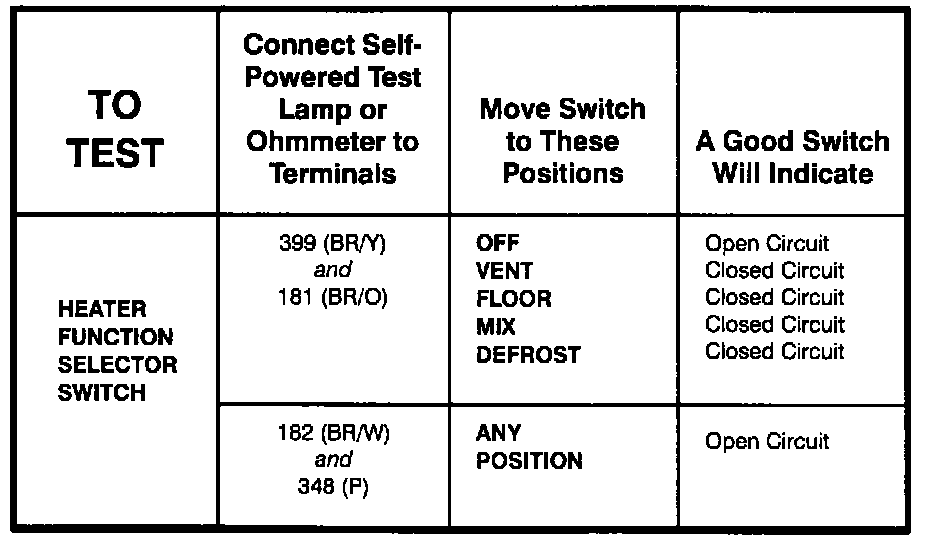

Heater Control Assembly - Component Testing Procedure:

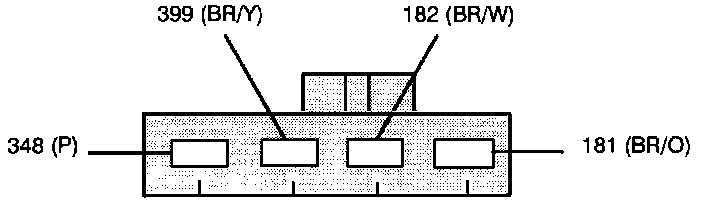

Heater Function Selector Switch - Terminal Locations:

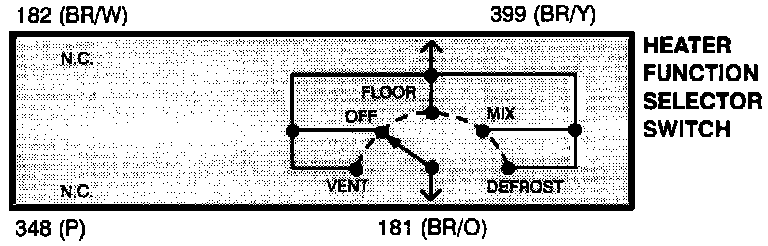

Heater Function Selector Switch - Schematic:
