Caster and Camber

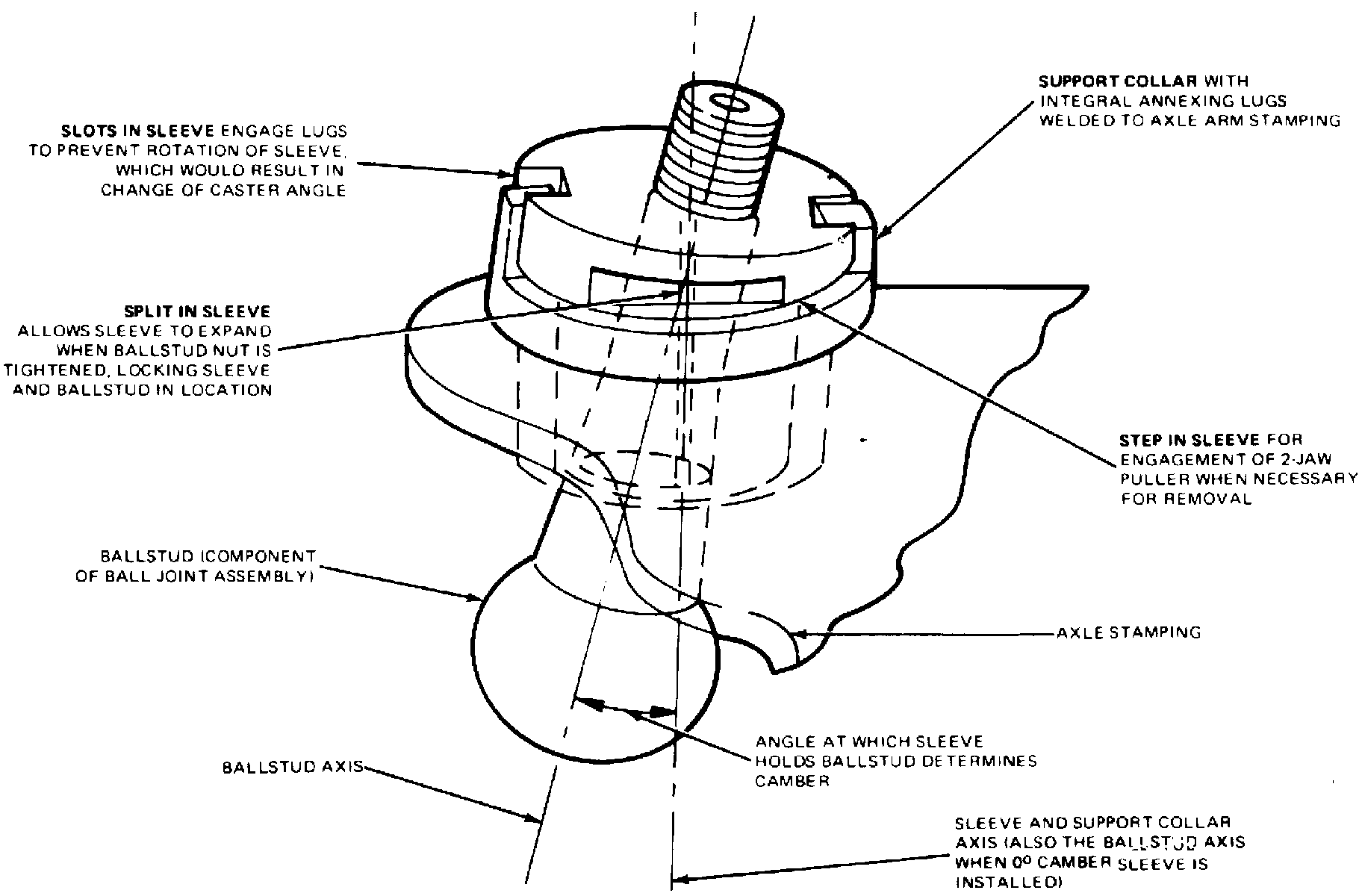

Fig. 1 Camber Adjustment:

The camber angle may be adjusted by means of mounting sleeves placed on the upper ball joint, Fig. 1. Four sleeves are available in 1/2 degree camber increments to allow a 3 degree range of adjustment from -1 1/2 degrees to +1 1/2 degrees.

NOTE: the caster angle is designed into the axle and is not adjustable.
