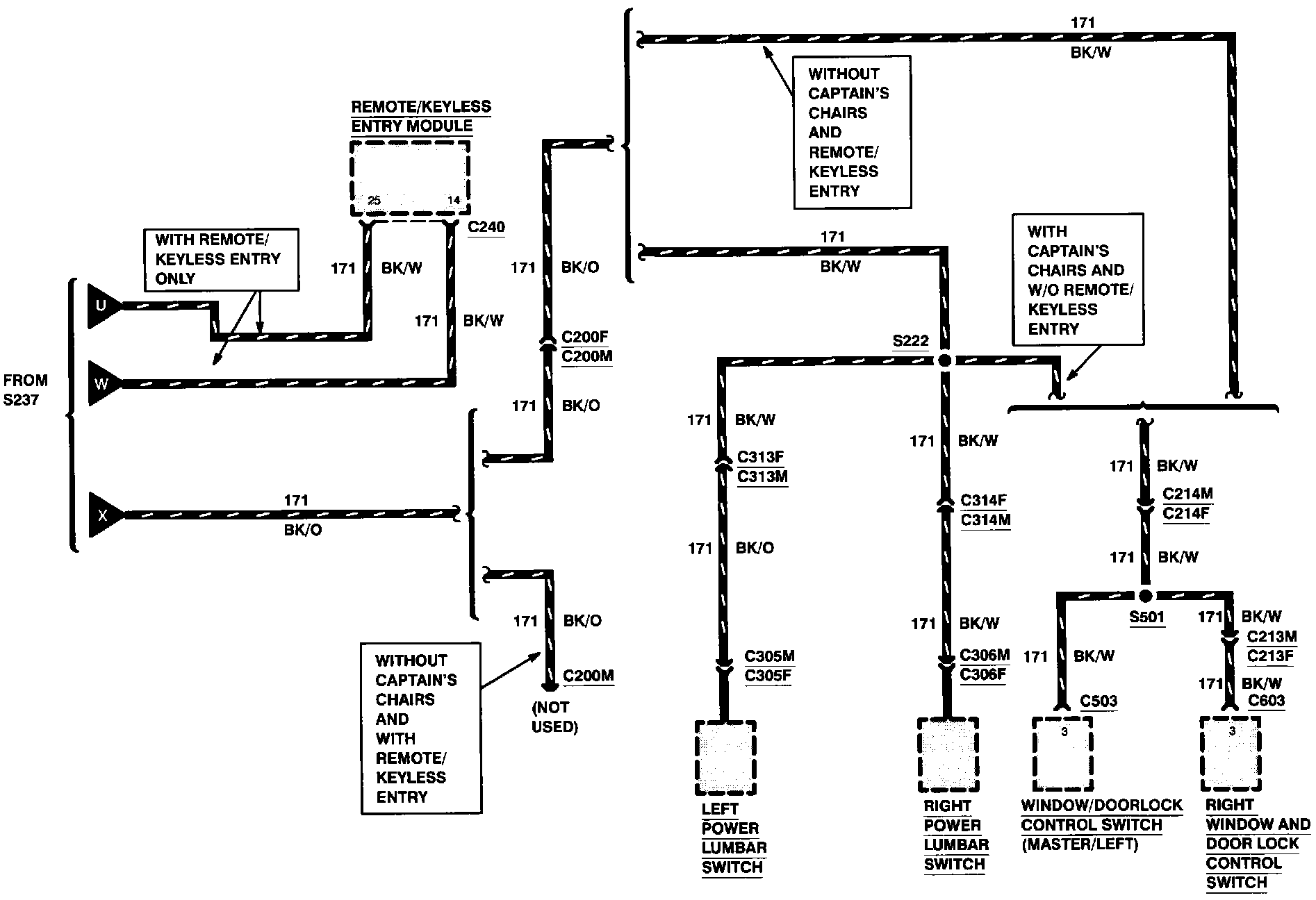

Circuit Breaker 12
Circuit Breaker 12 - protects the following circuits:^ Power Door Lock
^ Power Tailgate Window
^ Electronic Shift Control
^ Power Lumbar Seats
Power Distribution:
Power Distribution:
Power Distribution:
Power Distribution:
^ Power Door Lock
^ Power Tailgate Window
^ Electronic Shift Control
^ Power Lumbar Seats
