Fuse 4

Fuse 4 - protects the following circuits:
^ Exterior Lamps
^ Remote/Keyless Entry
^ Warning Chime
^ Instrument Illumination

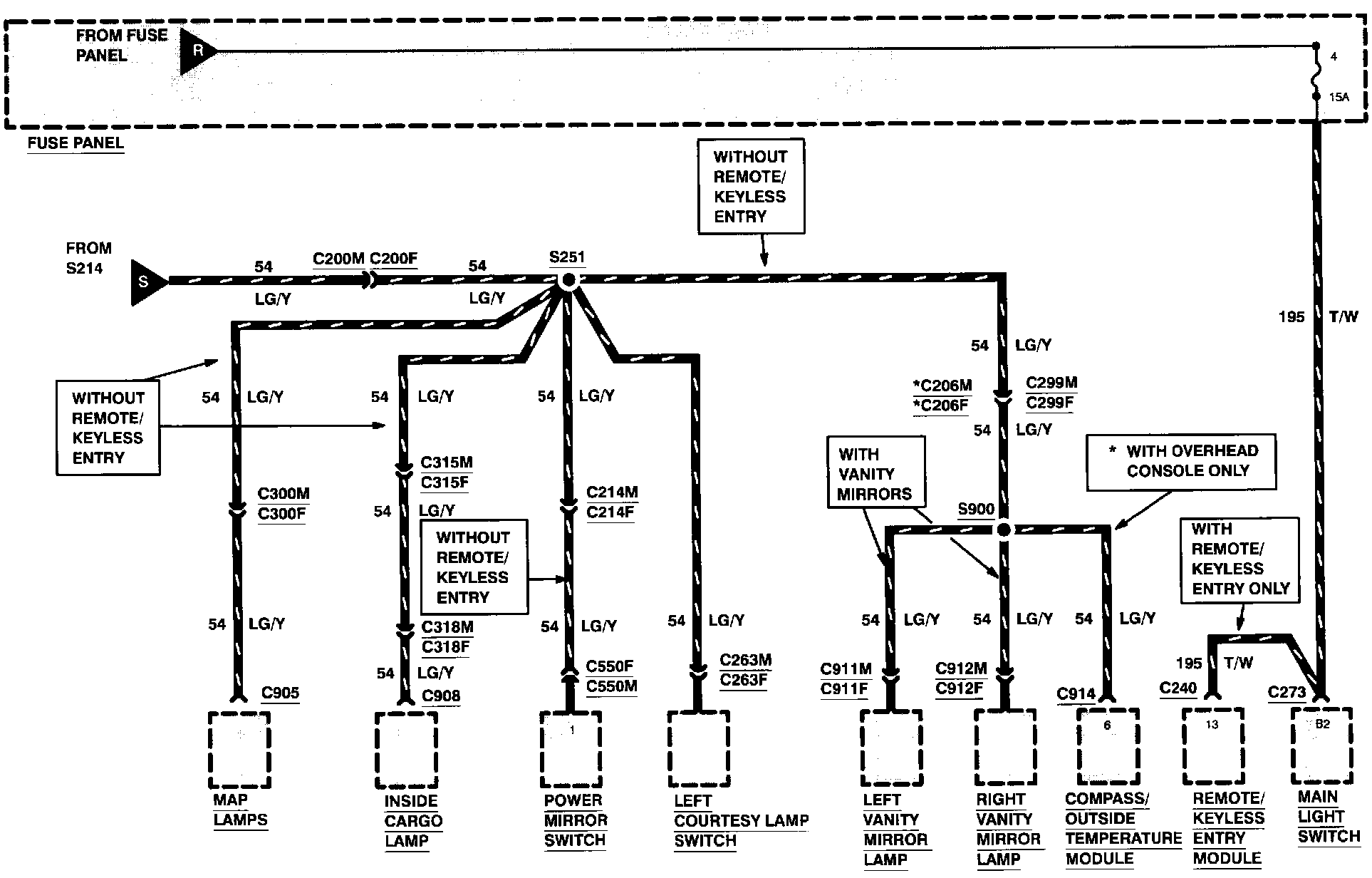

Power Distribution:

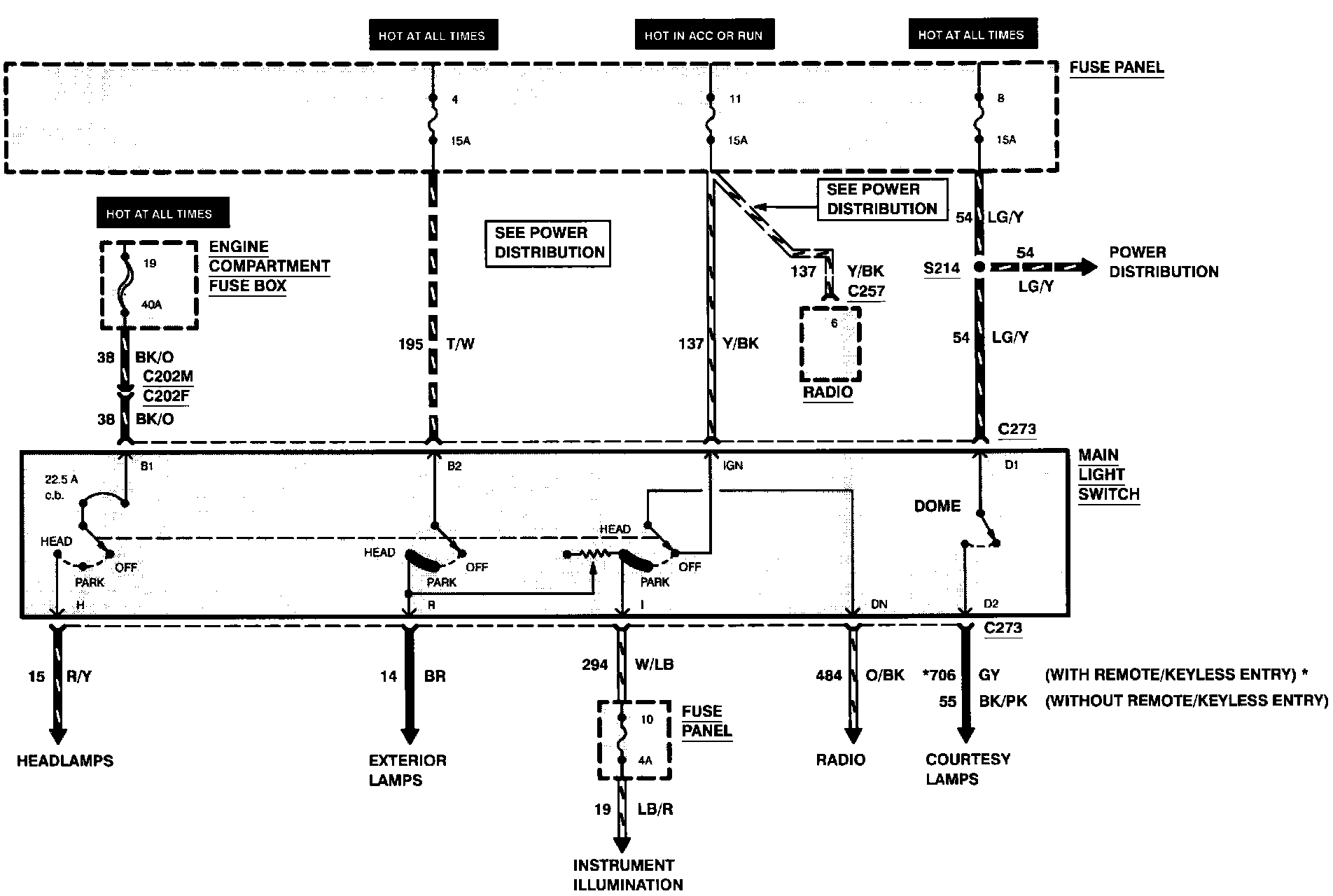

Power Distribution:




Power Distribution:




Power Distribution:




Power Distribution:
