Bronco Full Size V8-351 5.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
C203
C203

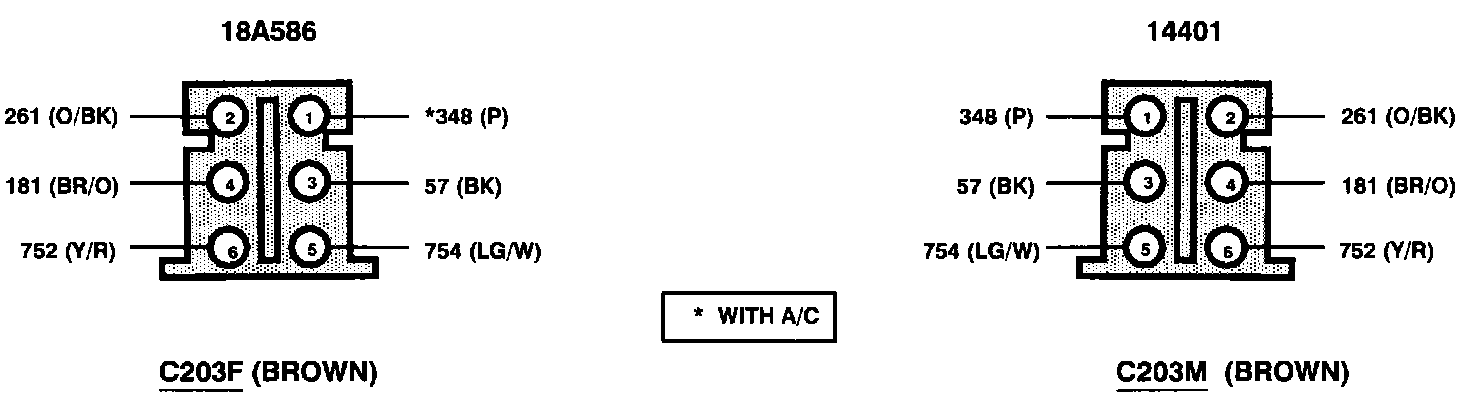

In-Line Connector Faces - C203:
