Evaporative Emissions System: Locations
















5.0 L





















5.8 L

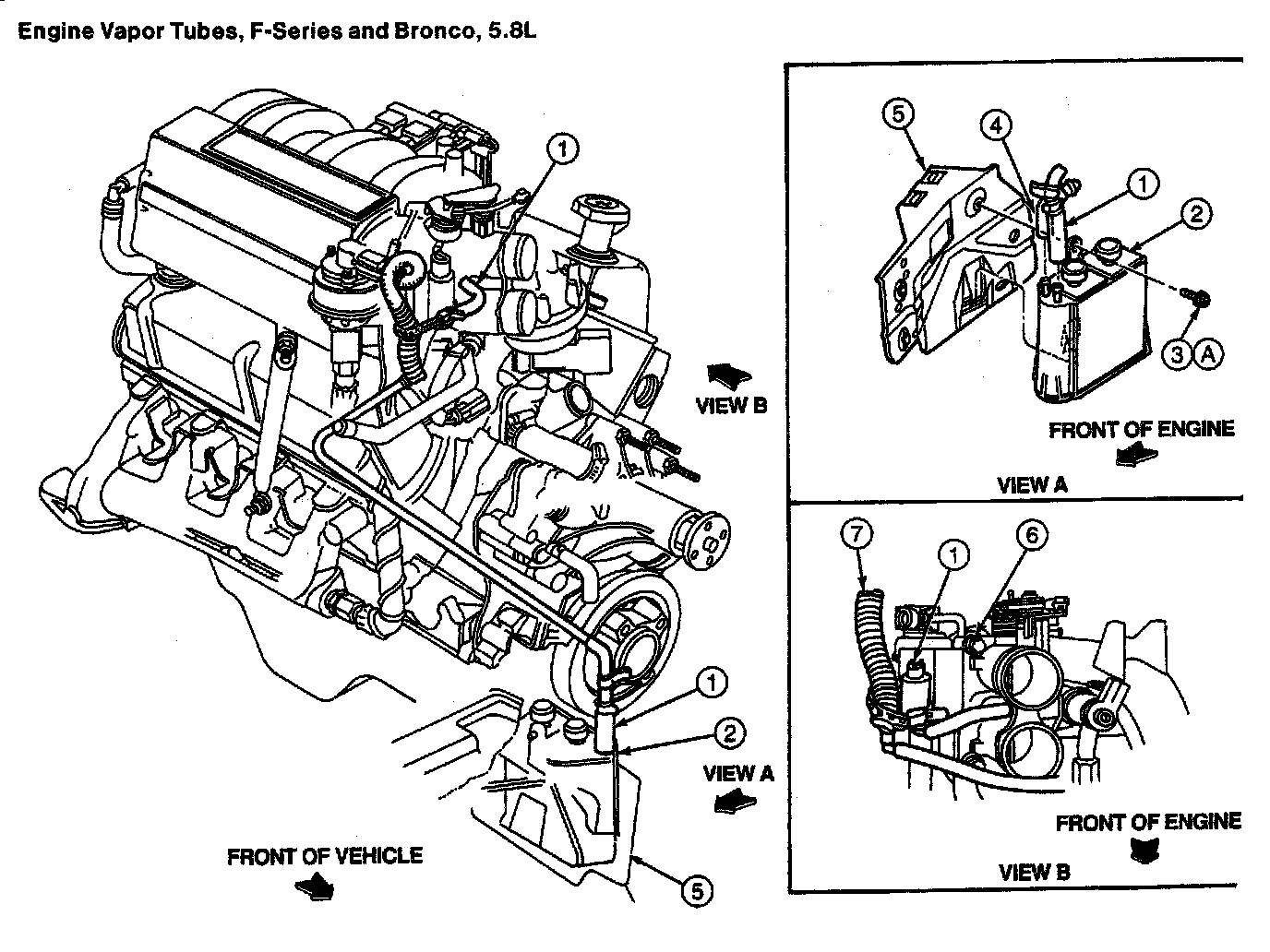

The canister is bolted to the RF lower frame.
