Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1996
>>
Bronco Full Size V8-351 5.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
D: Transmission Range (TR)/Manual Lever Position (MLP) Sensor
>>
D5 - D6
D5 - D6

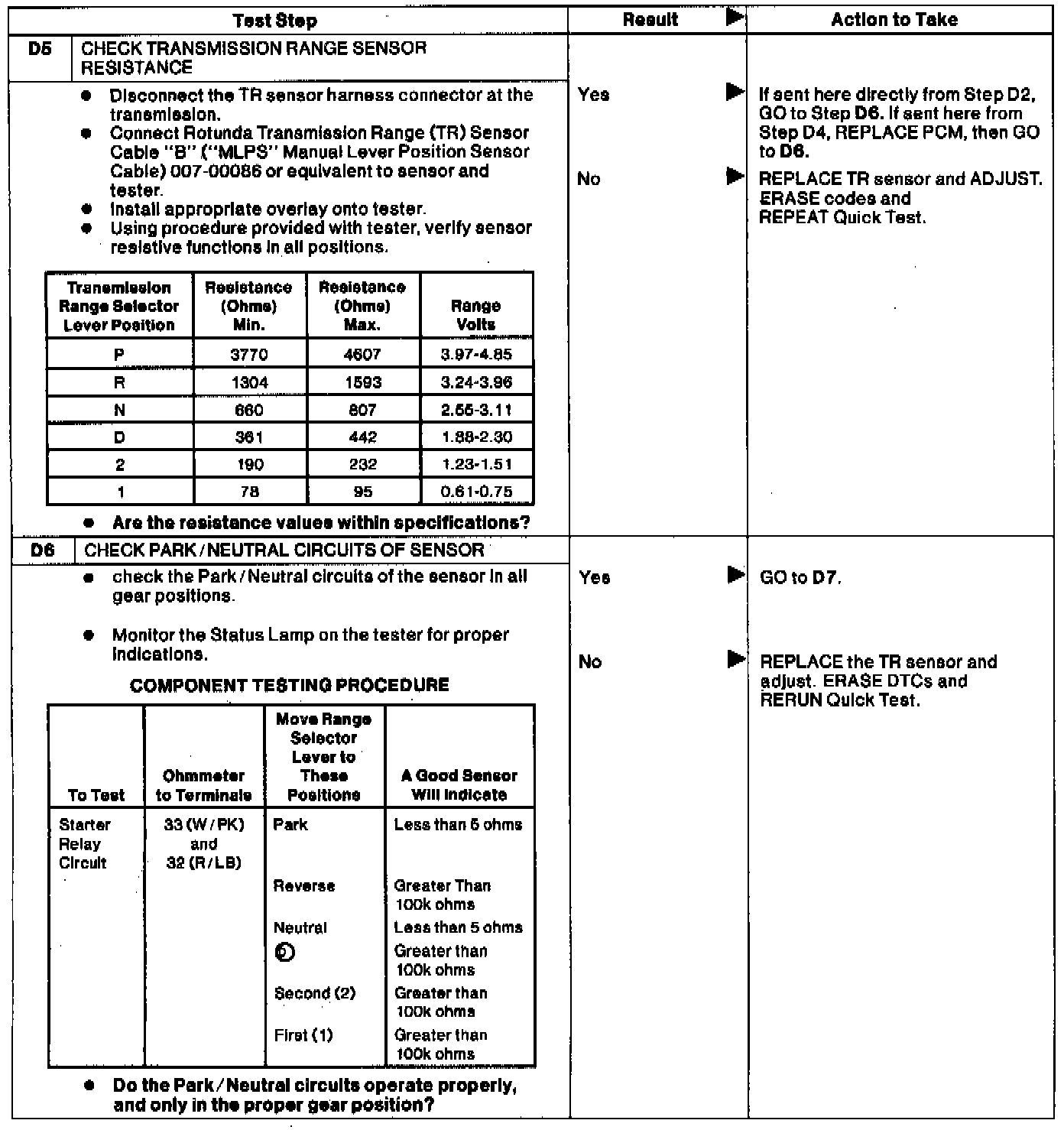

Pinpoint Test D: Transmission Range (TR) Sensor (cont'd):
