Pinout Values and Diagnostic Parameters

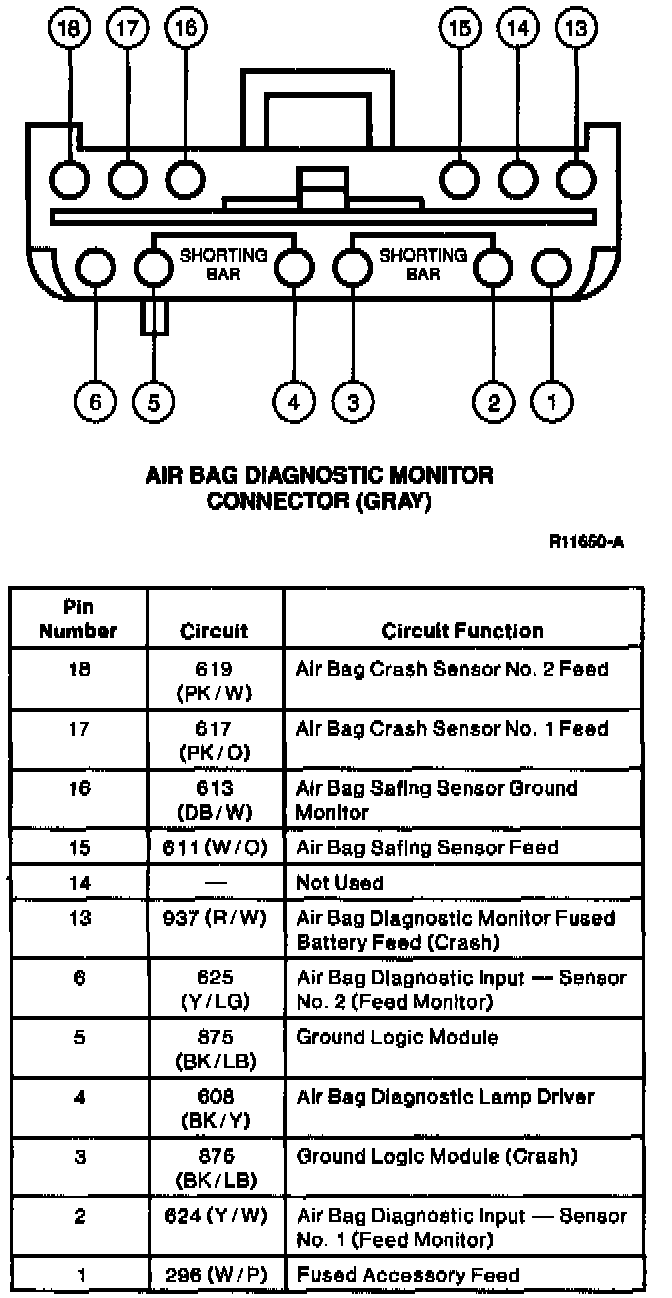

Air Bag Diagnostic Monitor Gray Connector:

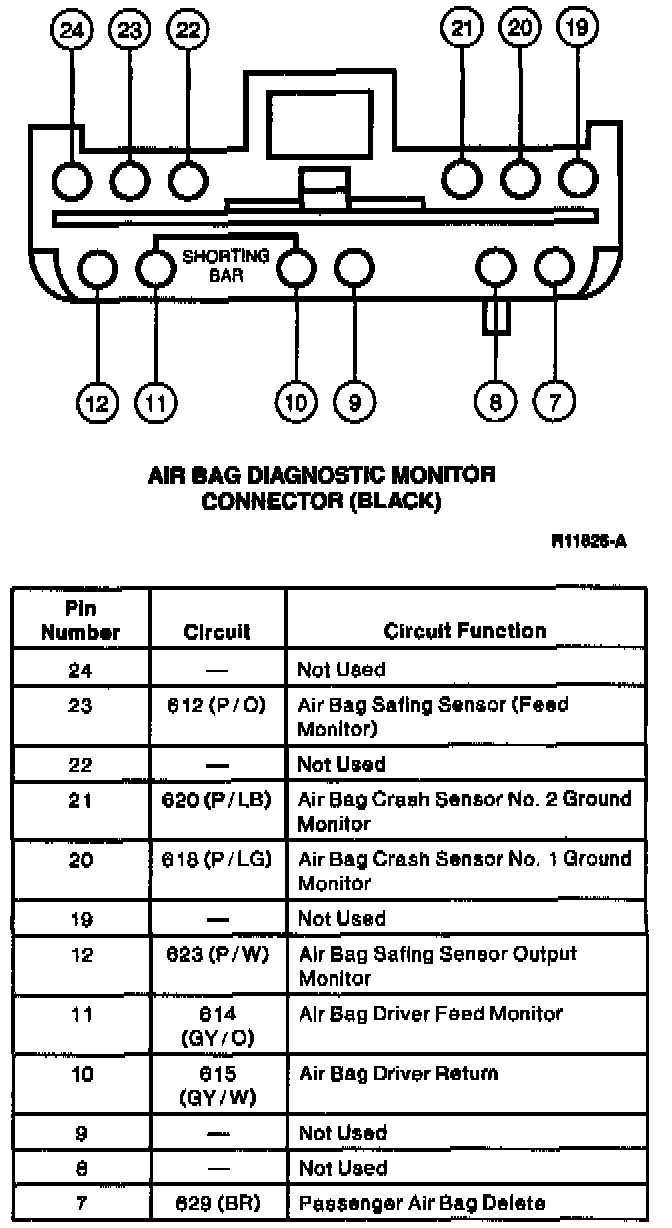

Air Bag Diagnostic Monitor Black Connector:

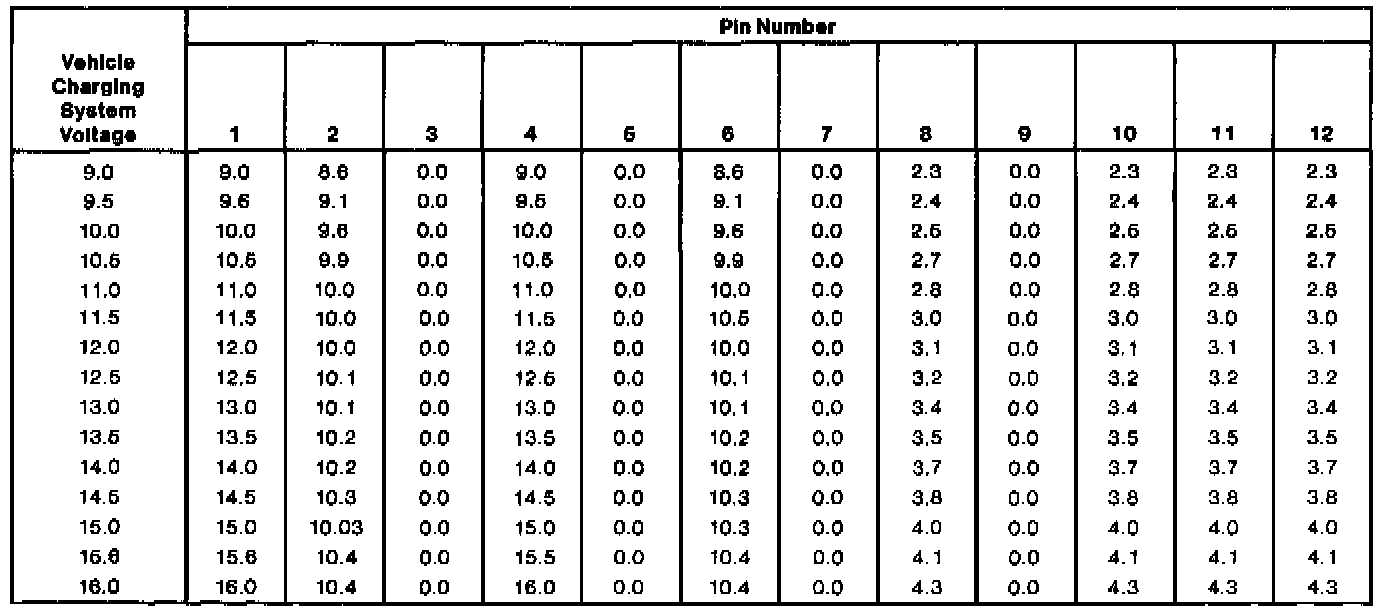

Voltages On Pins 1-12:

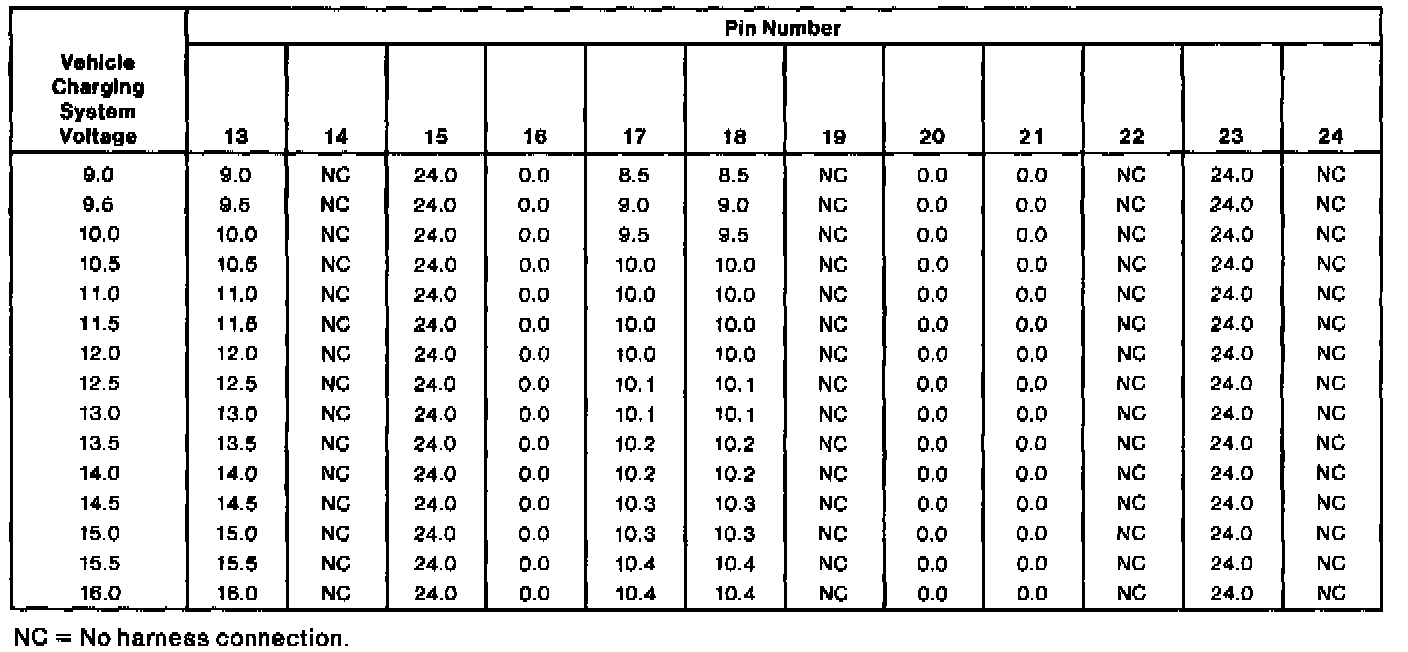

Voltages On Pins 13-24:

Air Bag Diagnostic Monitor Typical Pin Voltages Are With System Connected and Engine Running.
