Wheel Hub (Locking)

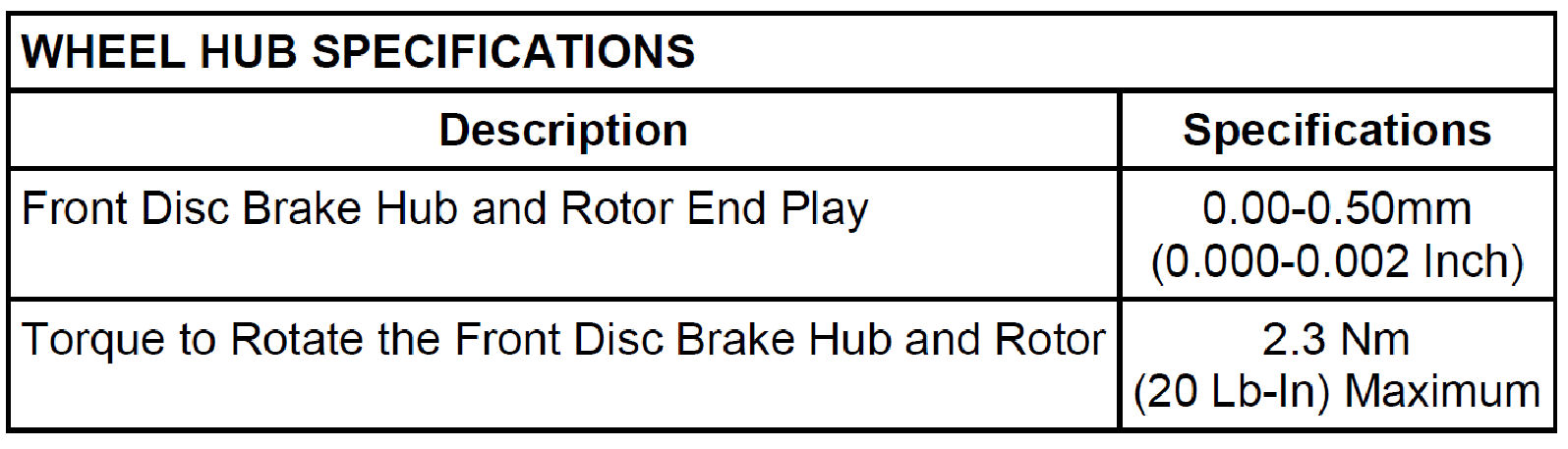

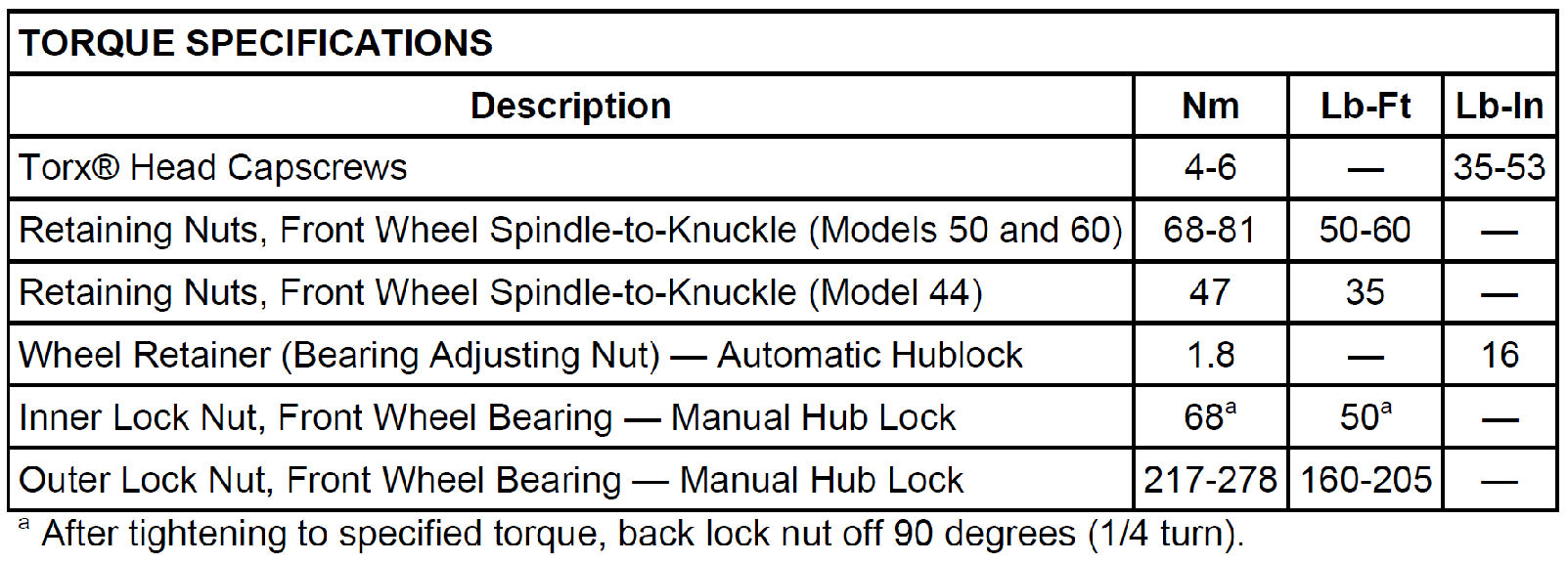

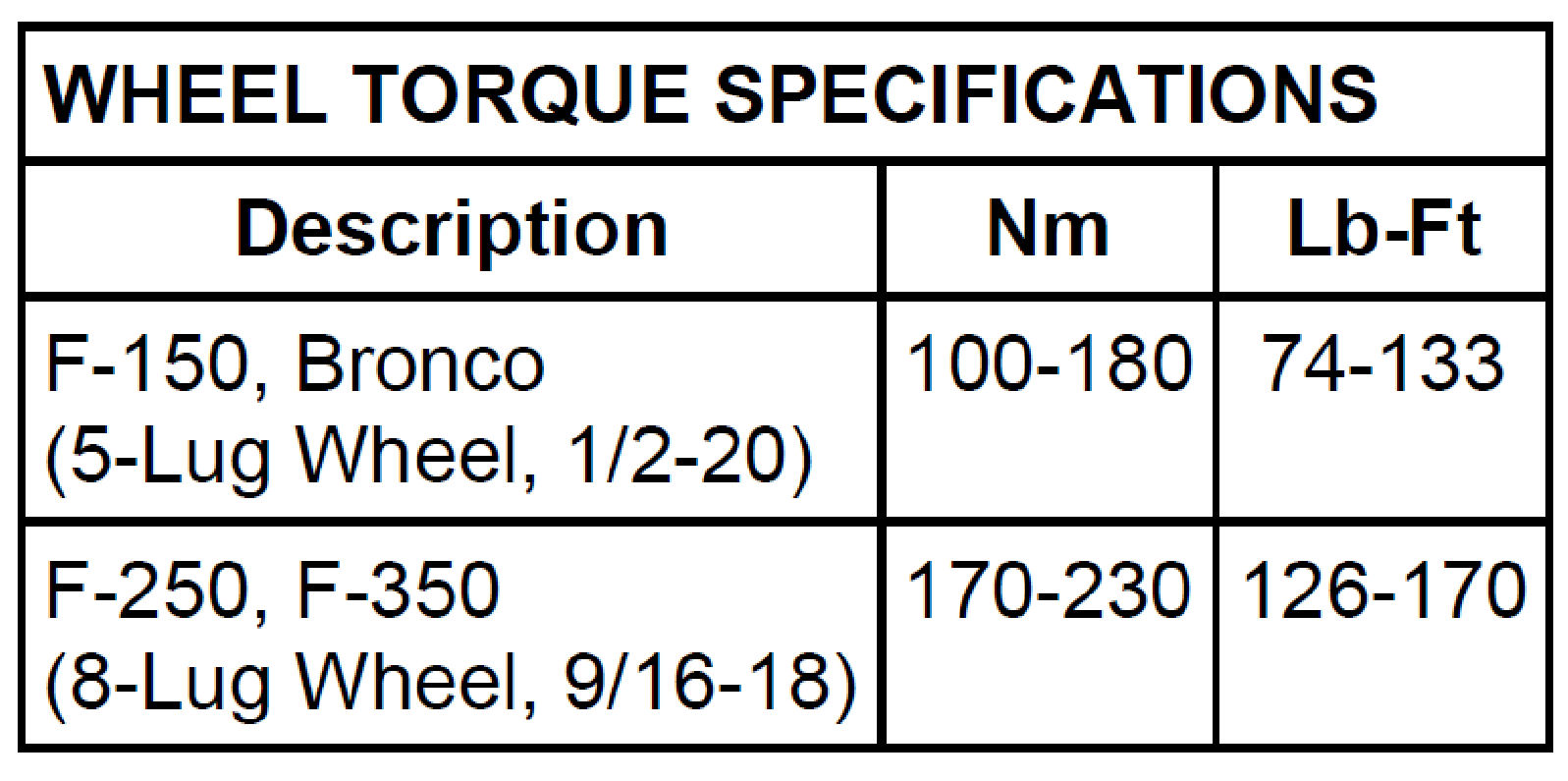

SPECIFICATIONS









NOTE: Torque specifications are for clean, dirt- and paint-free, dry bolt and nut threads. Never use oil or grease on studs or nuts.
