Fuse 6

Fuse 6 - protects the following circuits:
^ Trailer Right Stop/Turn Lamps

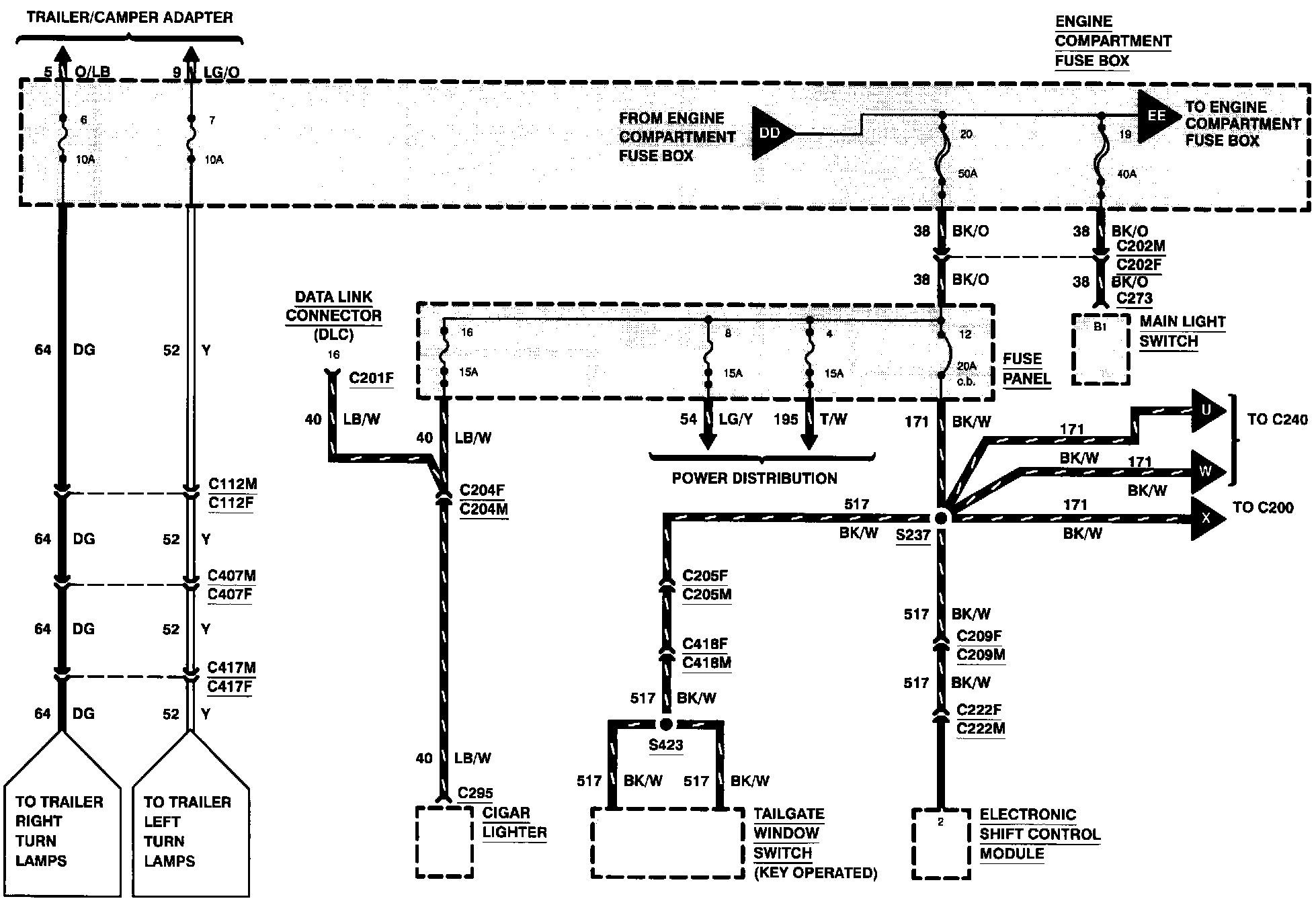

Power Distribution:

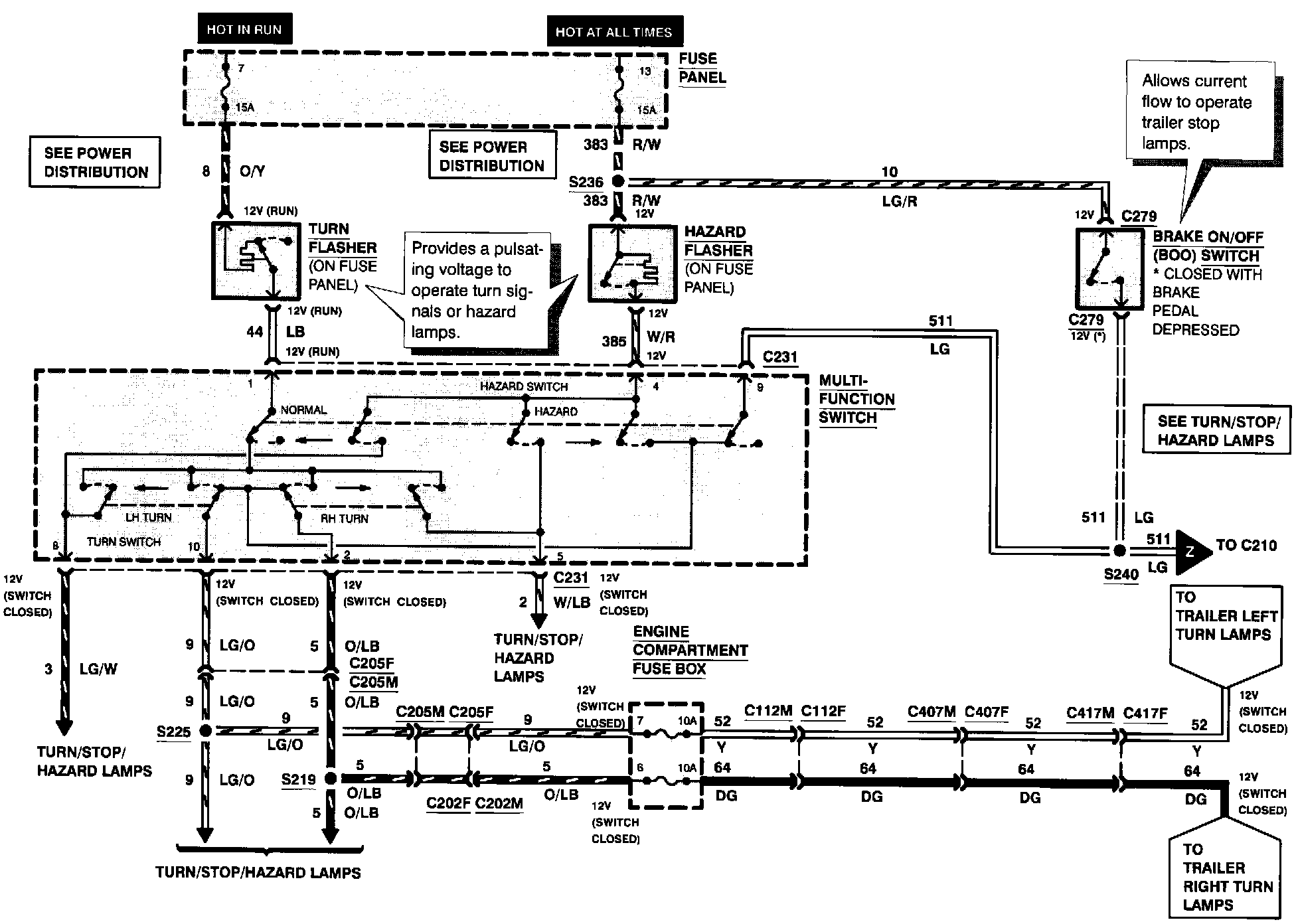

Trailer/Camper Adapter (Part 2 Of 3):

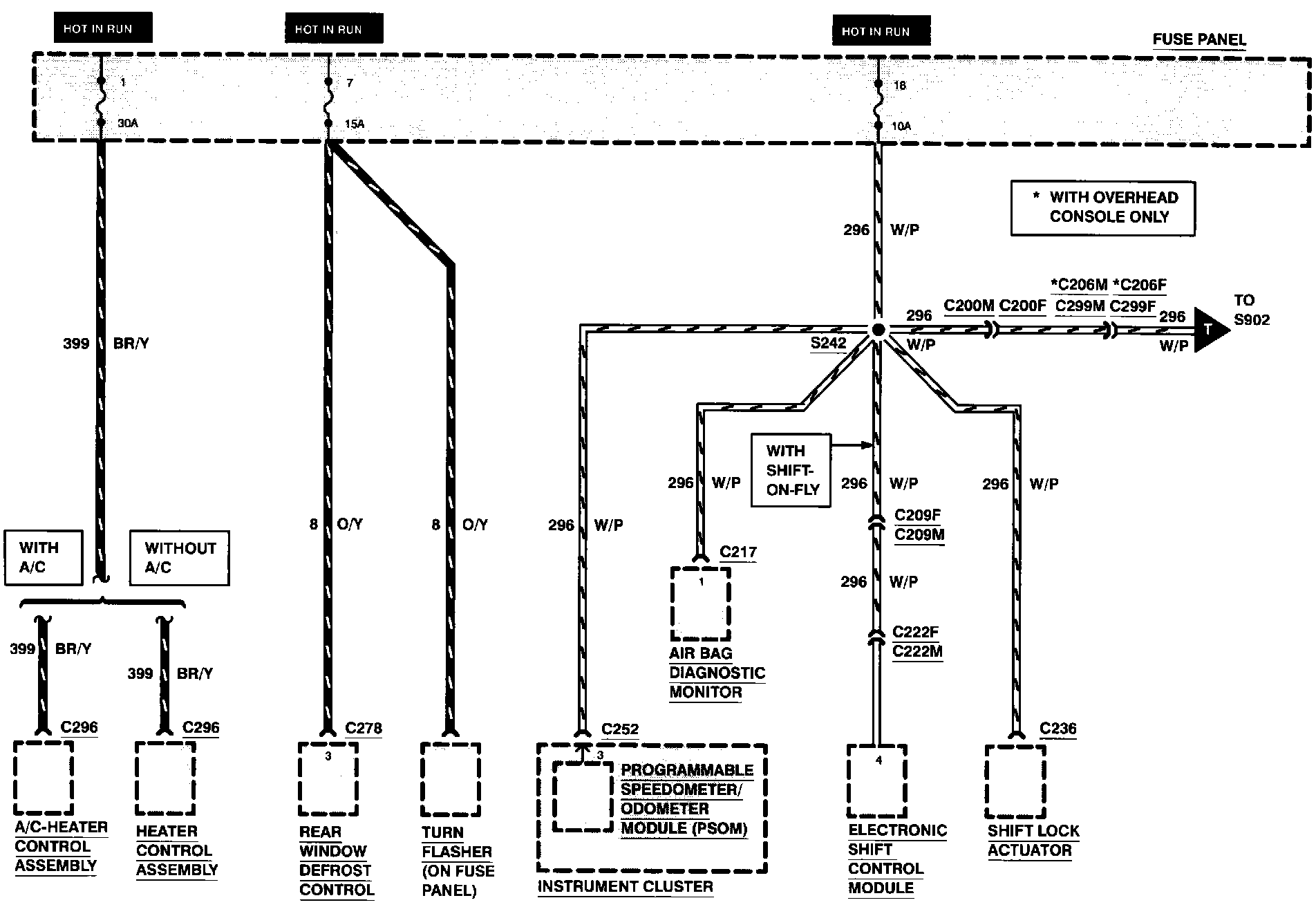

Power Distribution:

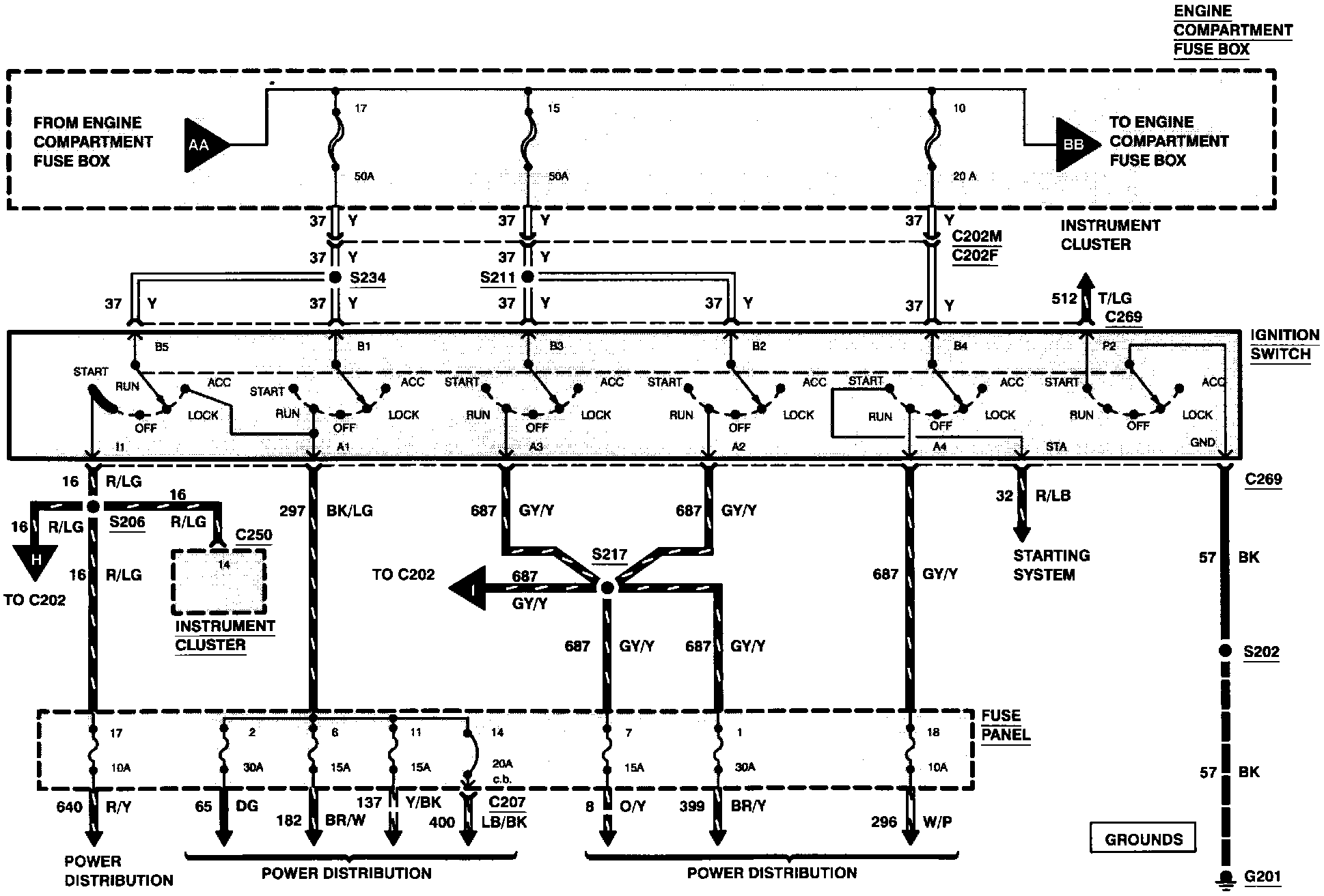

Power Distribution:

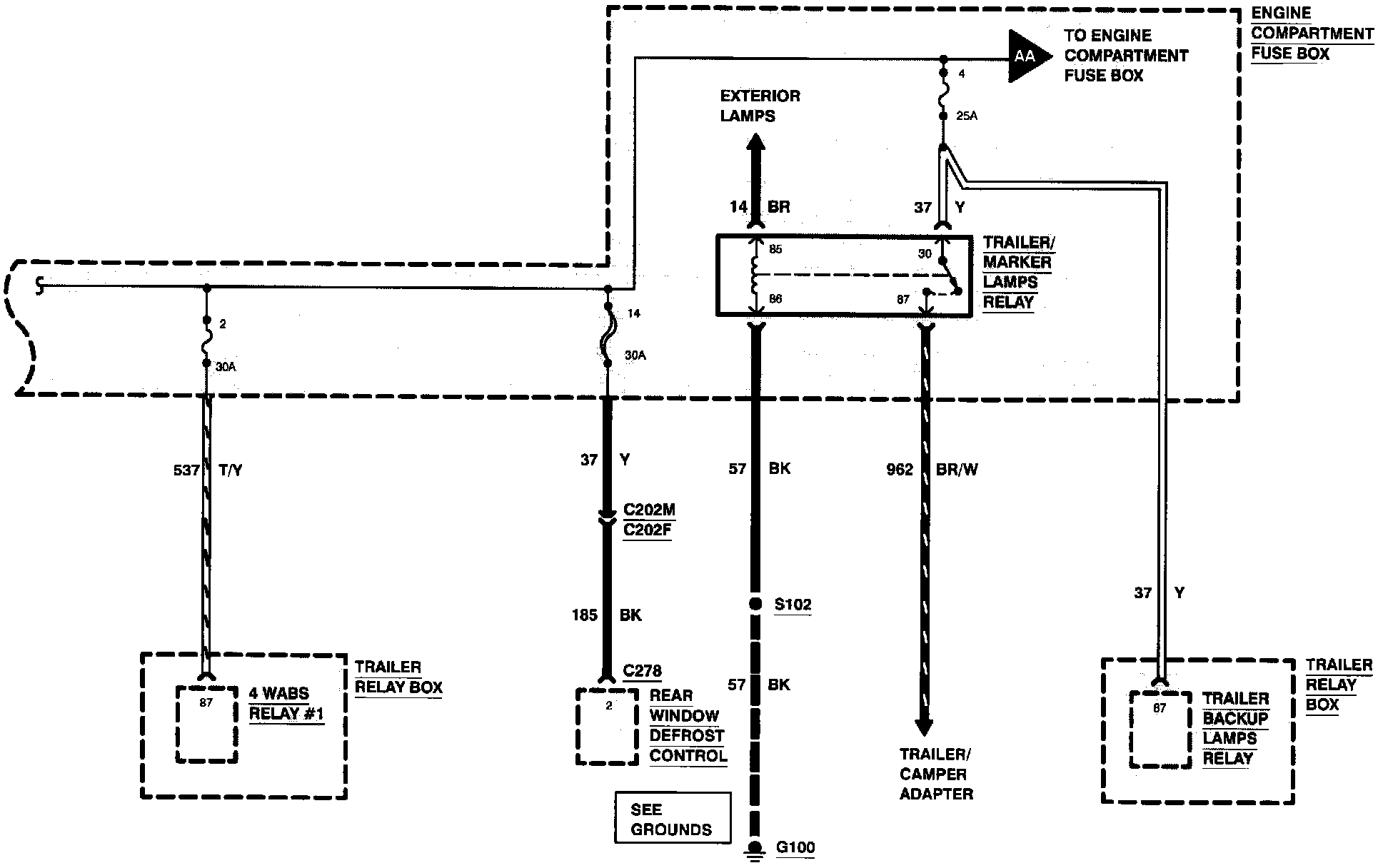

Power Distribution:




Power Distribution:
