Inspection and Verification (Start Here)

DIAGNOSIS AND TESTING

Shift Lock:

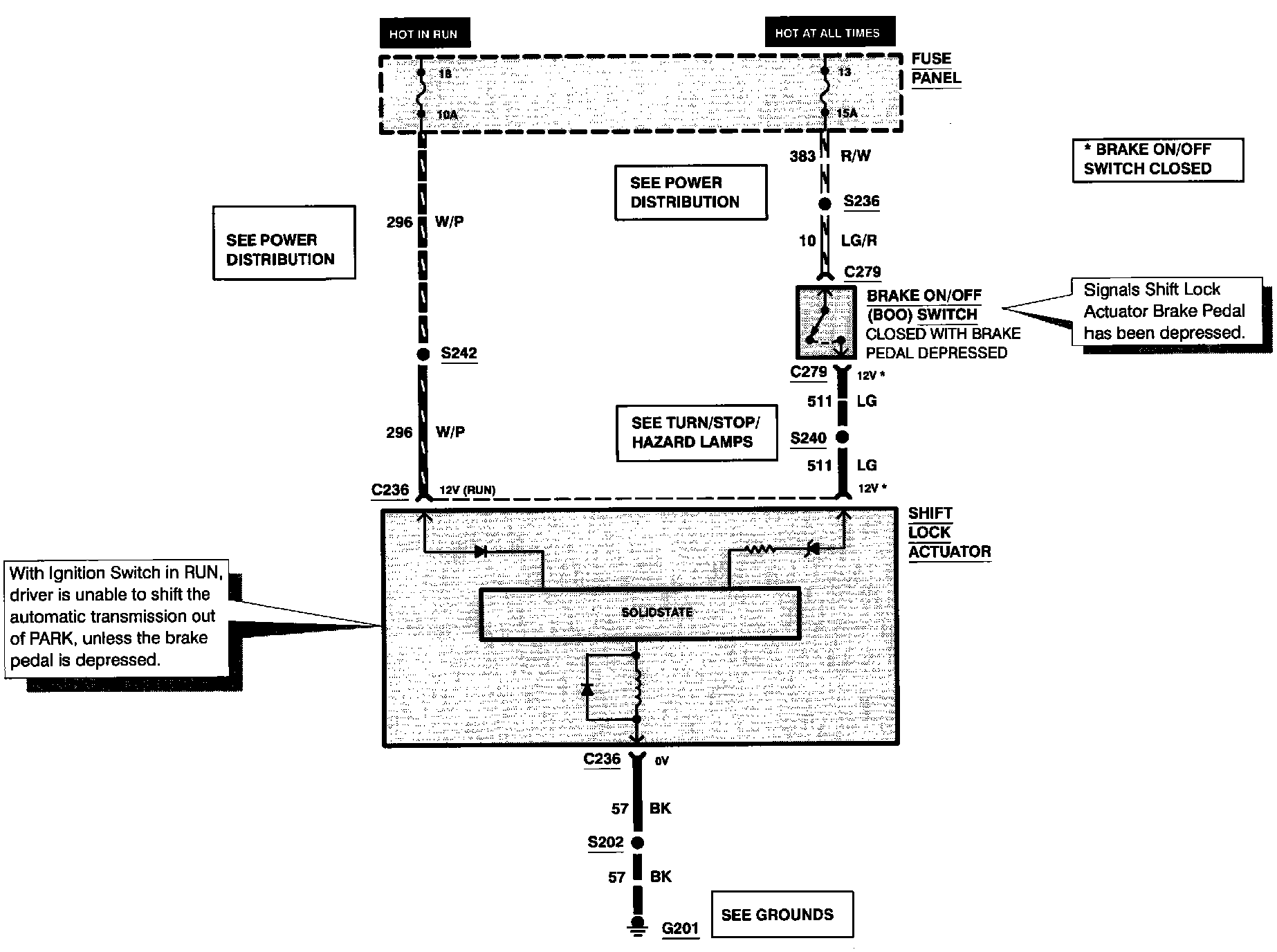

Electrical Diagram

1. Refer to the Brake Shift Interlock System Wiring Circuit for brake shift interlock system wiring. Diagrams

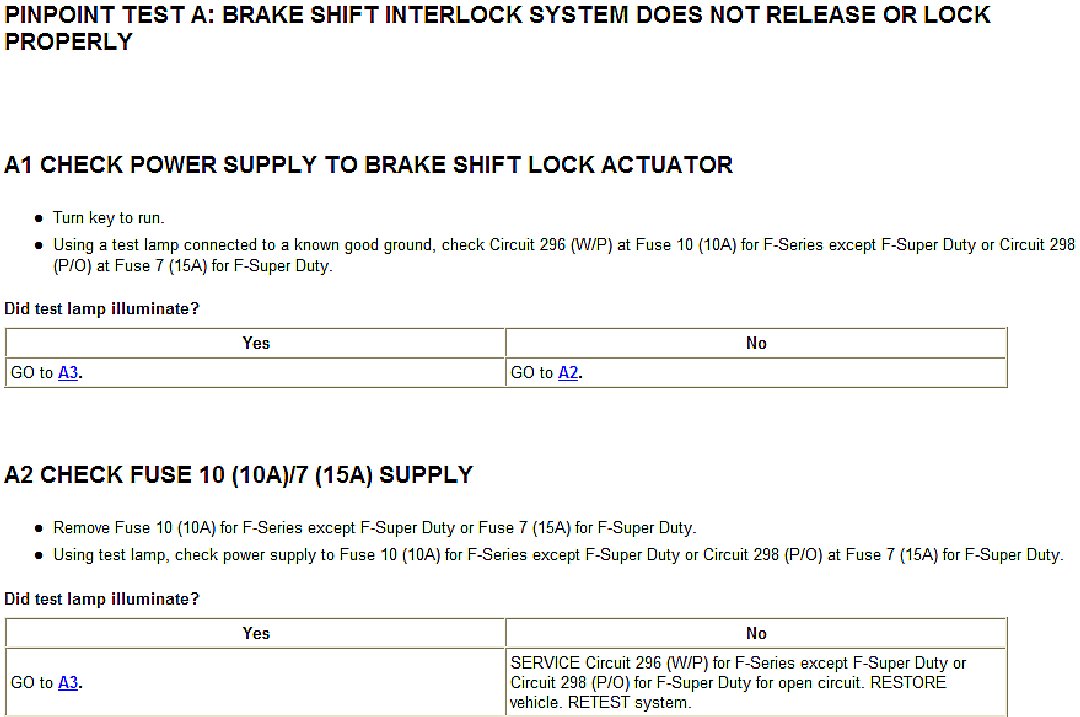

Test A1-A2

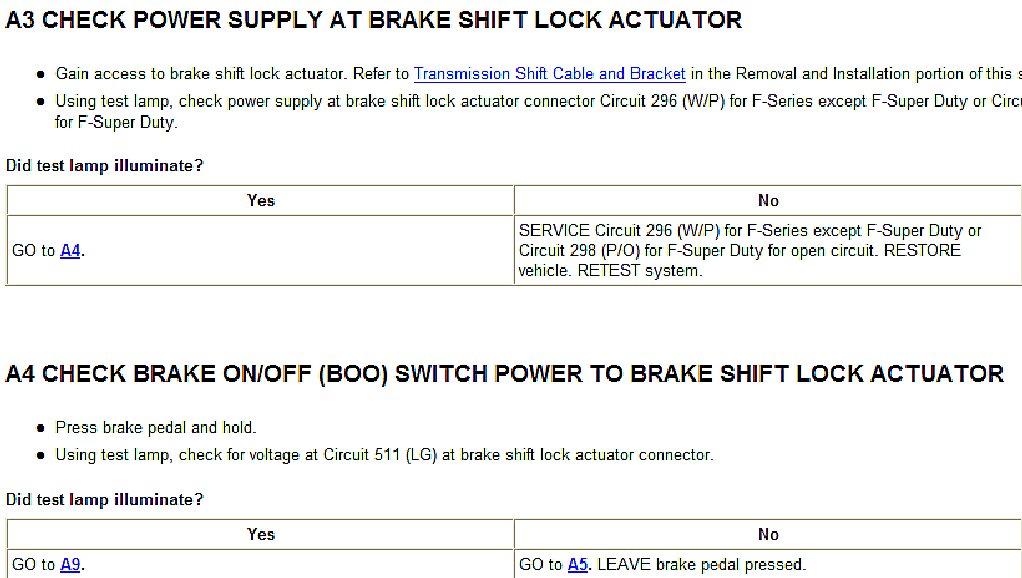

Test A3-A4

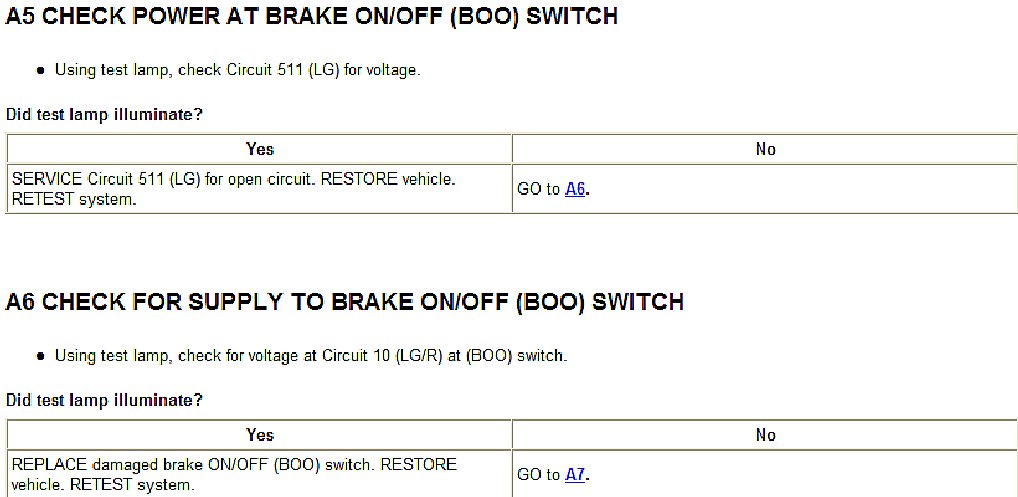

Test A5-A6

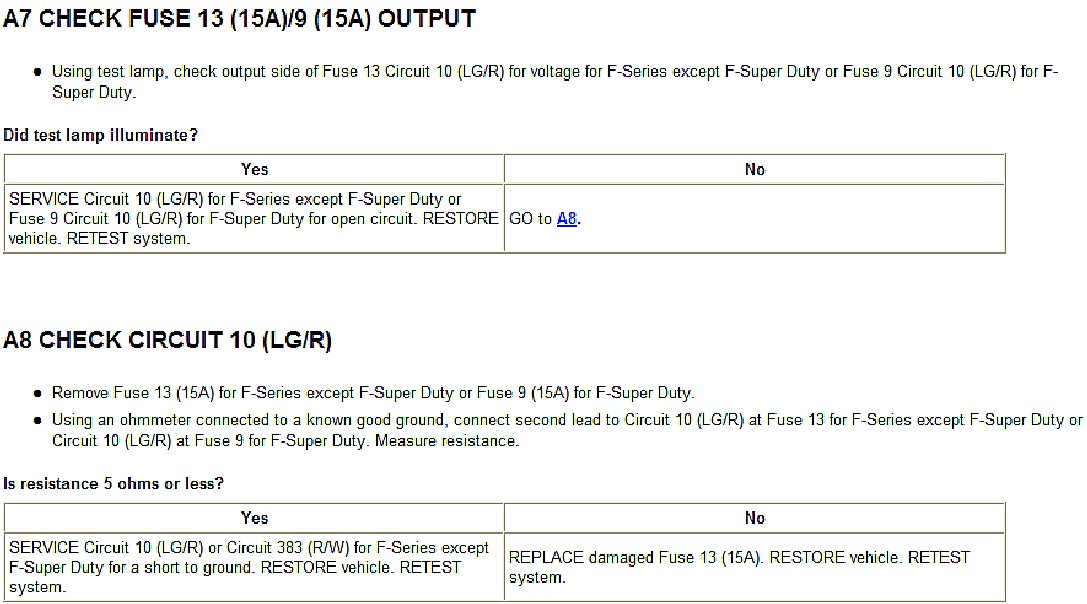

Test A7-A8

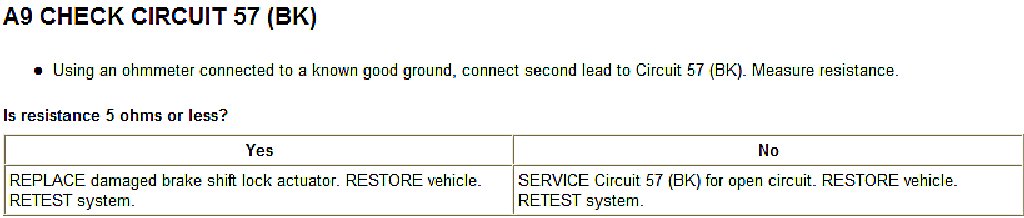

Test A9
