Home >> Ford >> 1996 >> Bronco Full Size V8-351 5.8L >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Testing and Inspection >> Pinpoint Tests >> D: Transmission Range (TR)/Manual Lever Position (MLP) Sensor >> Test Schematic/Charts

Test Schematic/Charts

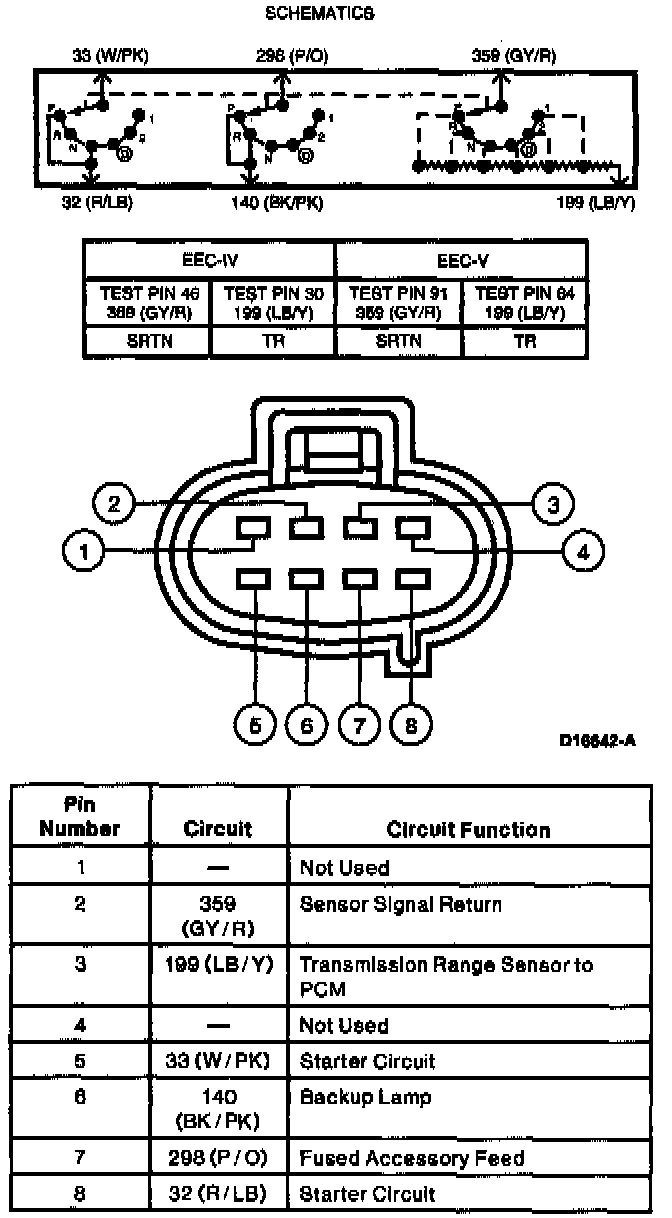

Transmission Range (TR) Sensor Schematic And Connector Pin Identification:
