Glow Plug: Diagrams

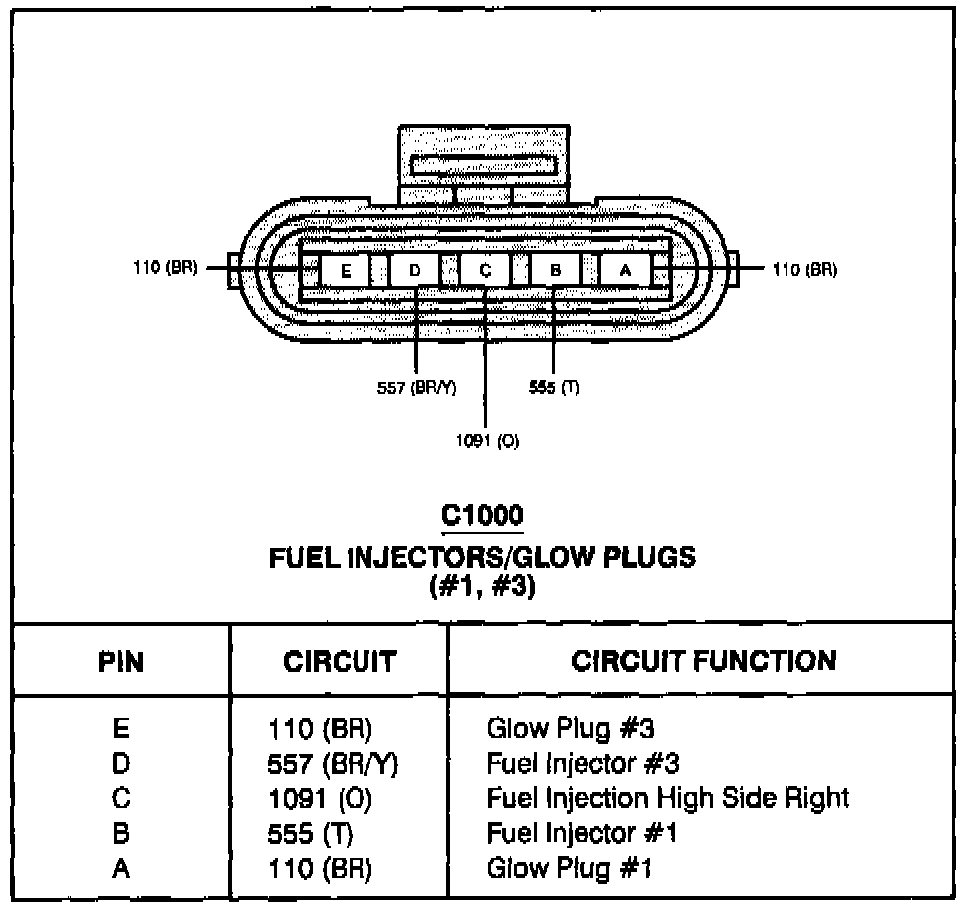

Fuel Injectors/Glow Plugs (#1, #3):
Fuel Injectors/Glow Plugs (#5, #7):

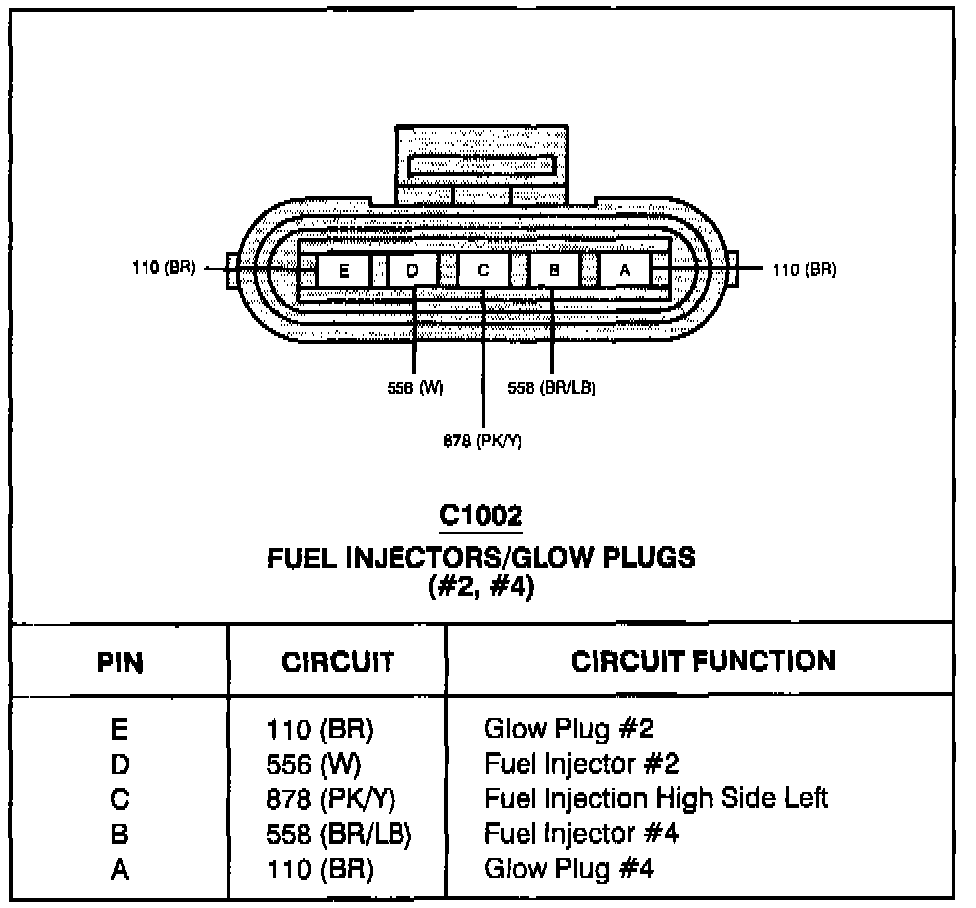

Fuel Injectors/Glow Plugs (#2, #4):

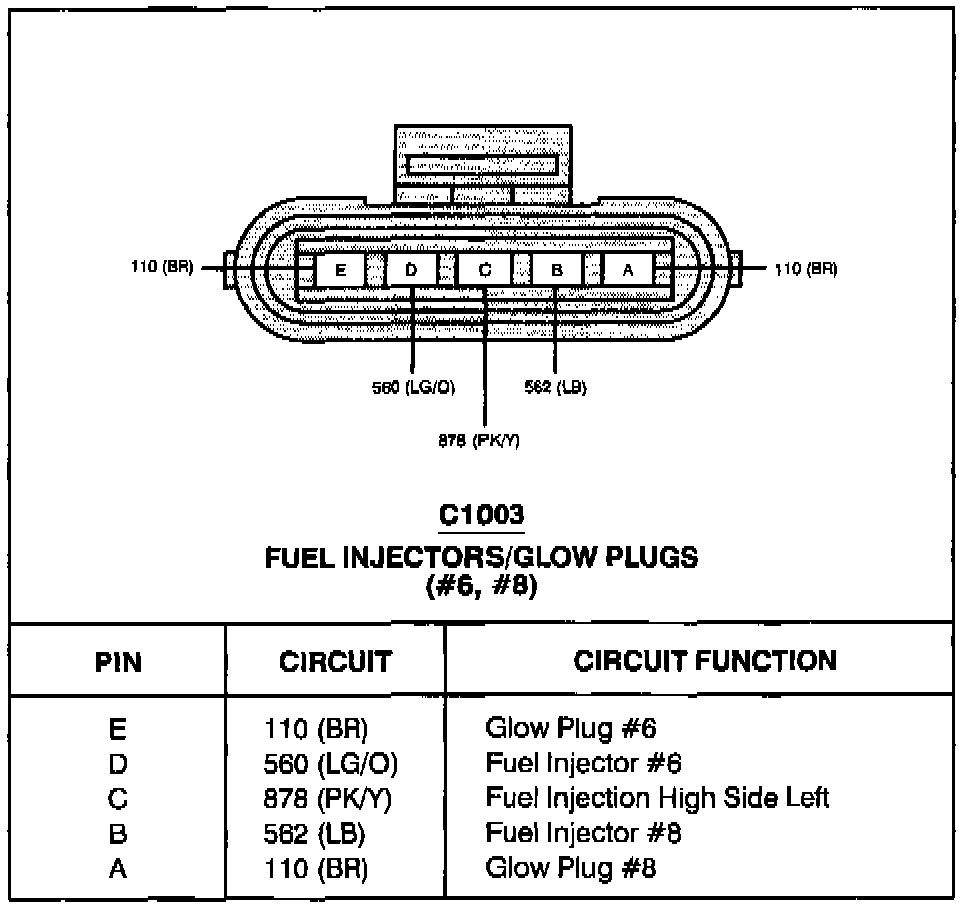

Fuel Injectors/Glow Plugs (#6, #8):
