Charging System

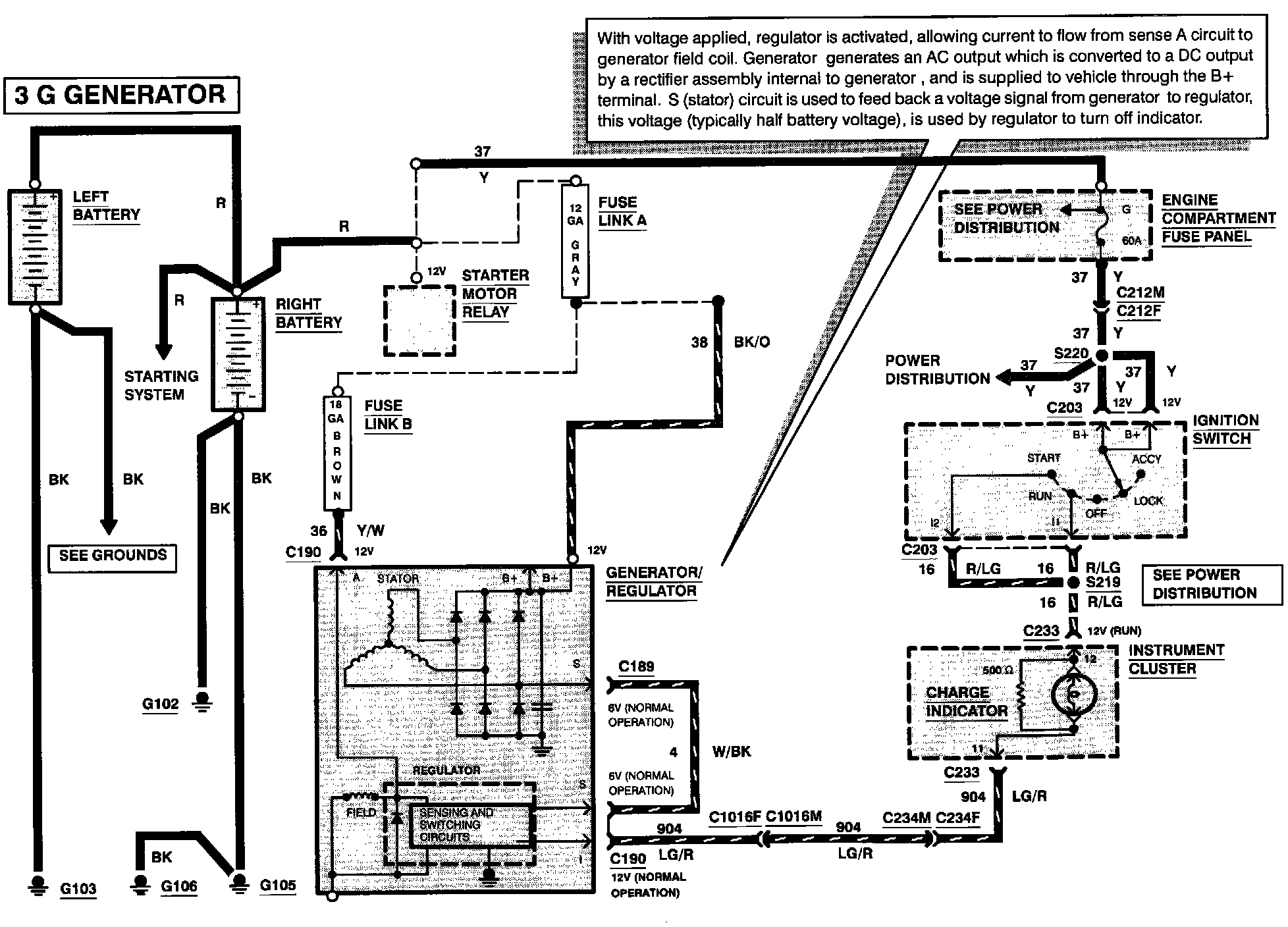

Charging System (3 G Generator):

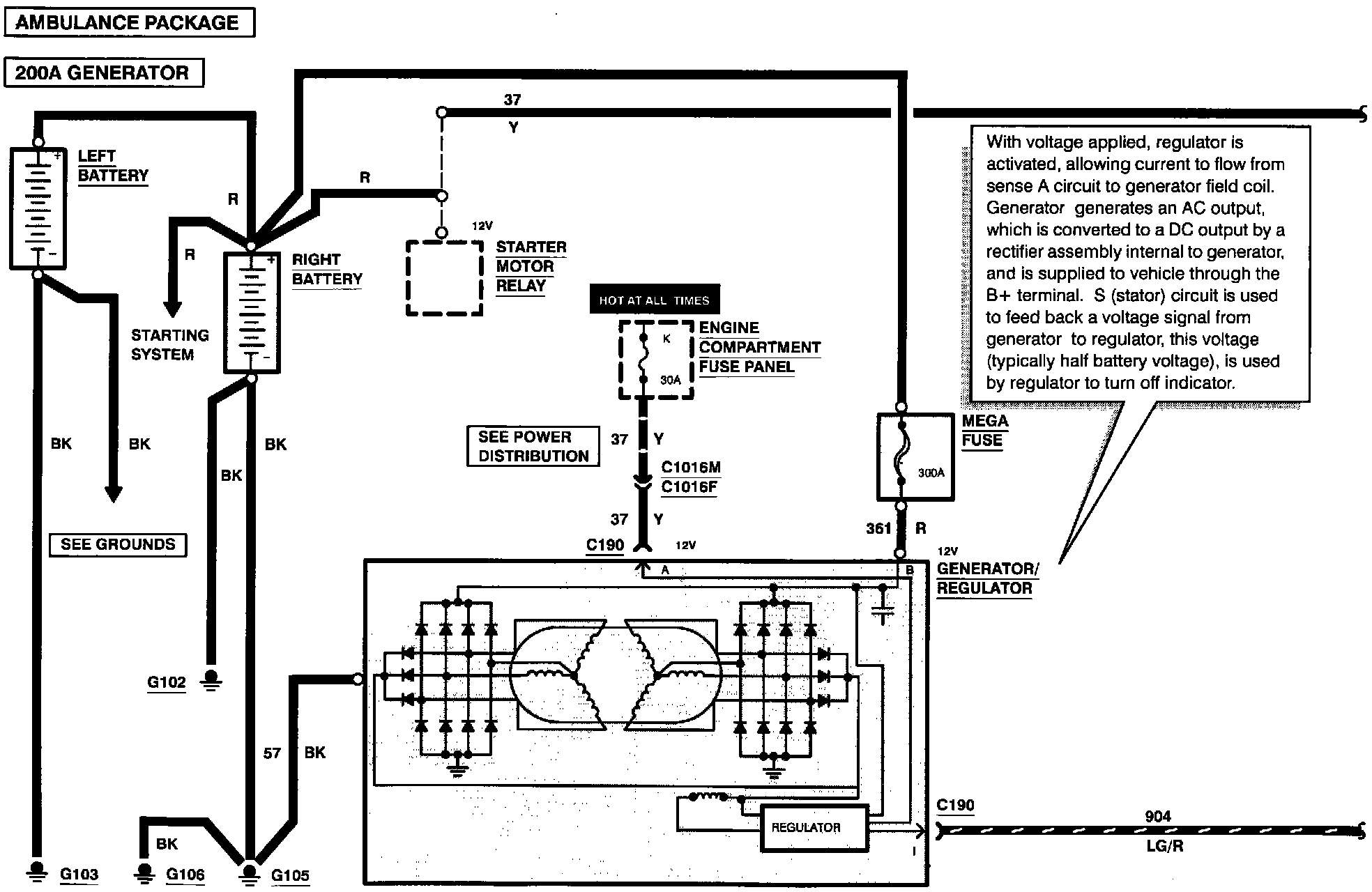

Charging System With 200 Amp Generator (Ambulance Package):

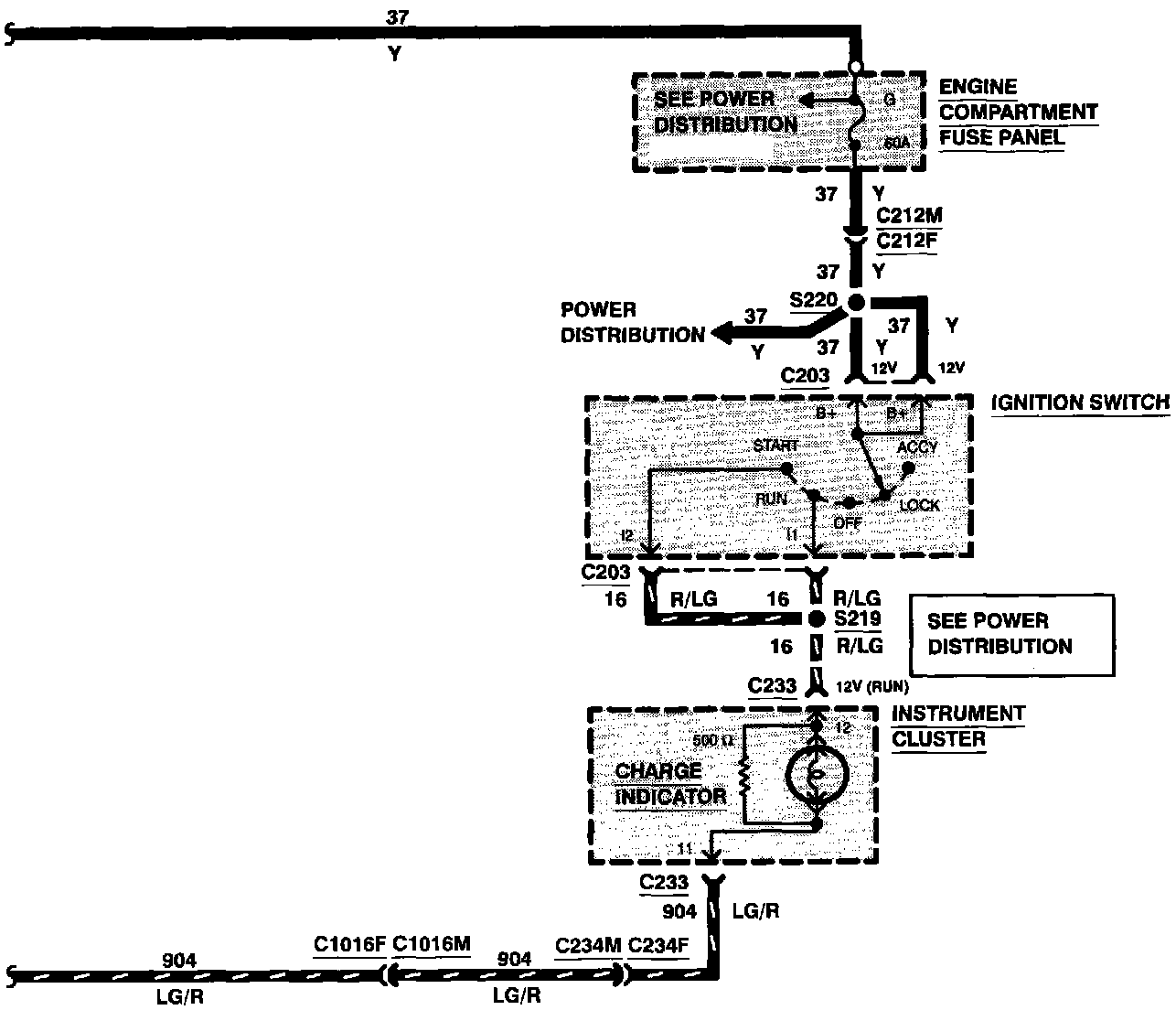

Charging System With 200 Amp Generator (Ambulance Package):
