Computers and Control Systems: Locations

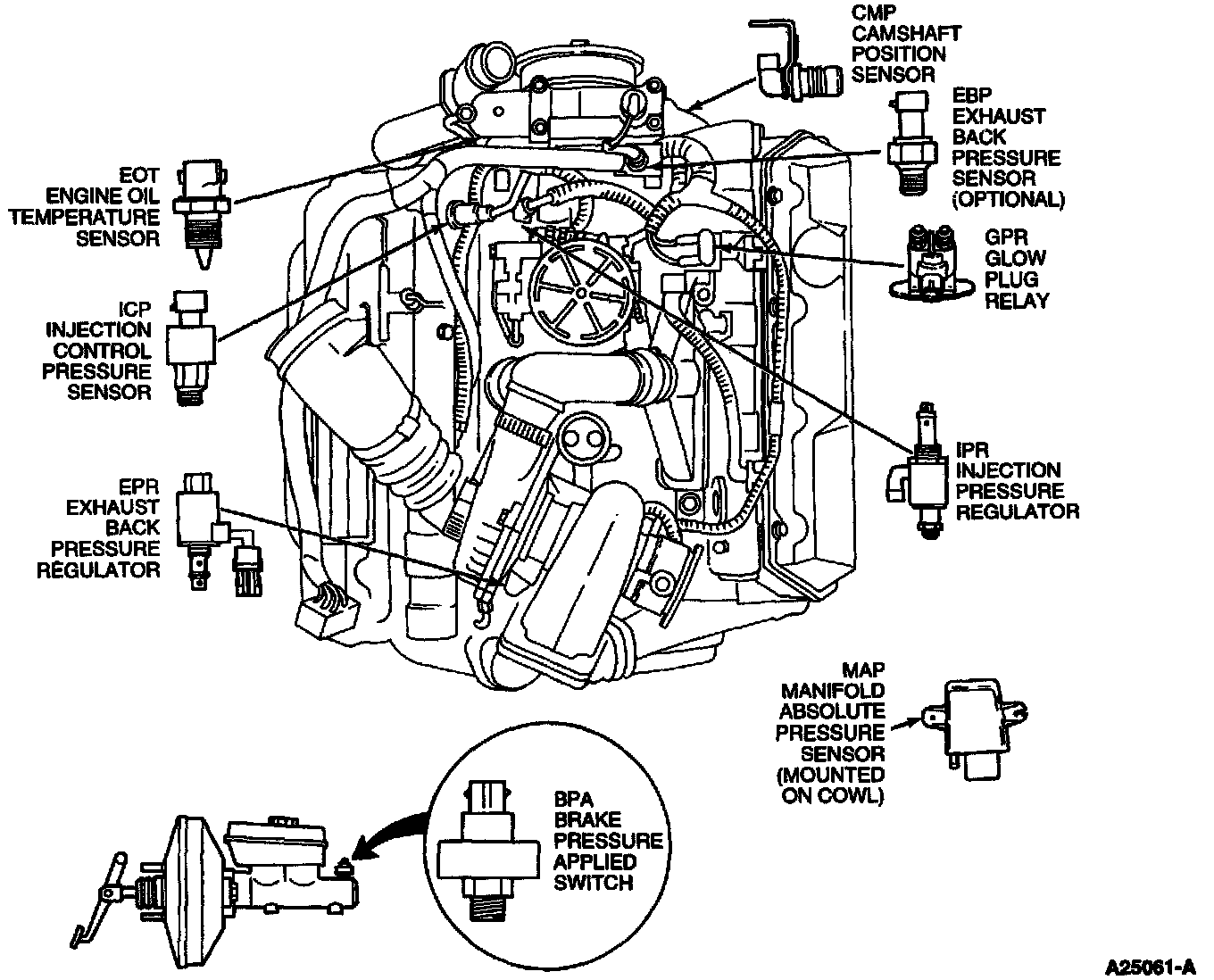

Underhood Components:

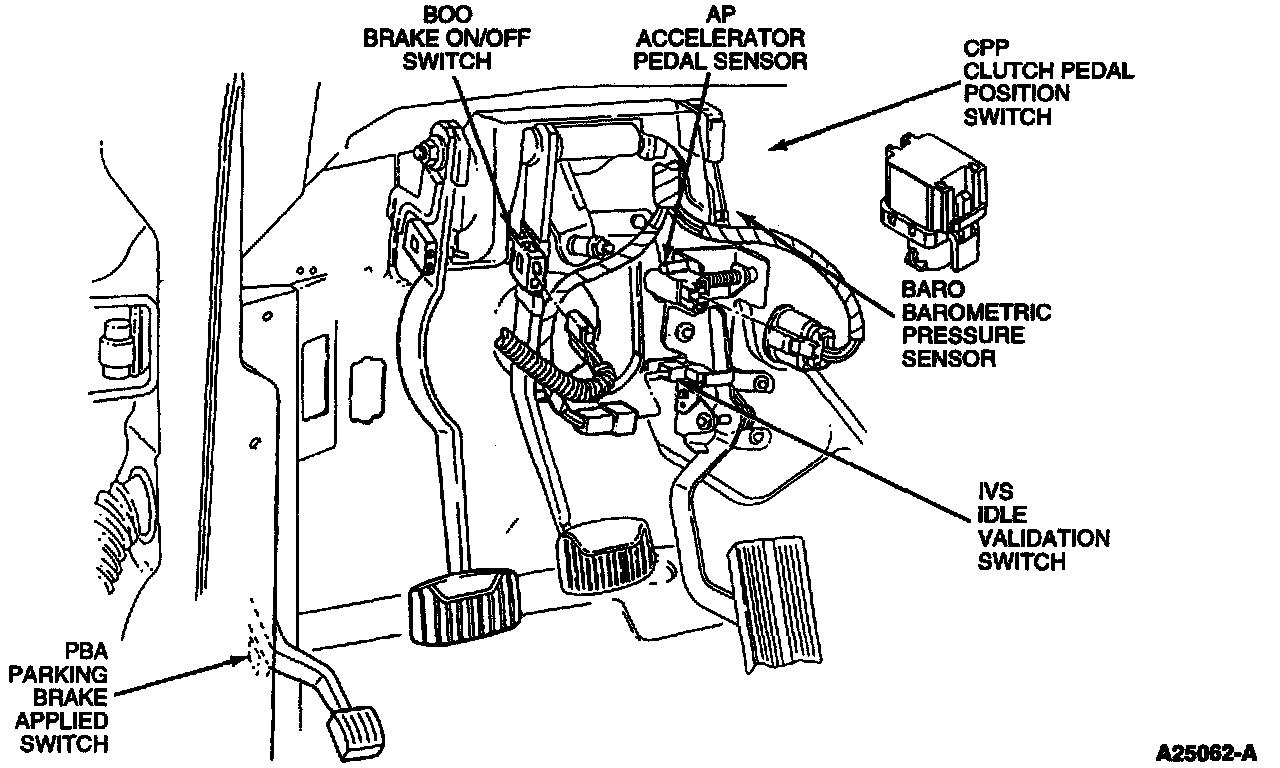

PCM-Related Sensor & Switch Locations:
