F - Speed Control Command Switch (SCCS)
>>
Test Schematic
Test Schematic

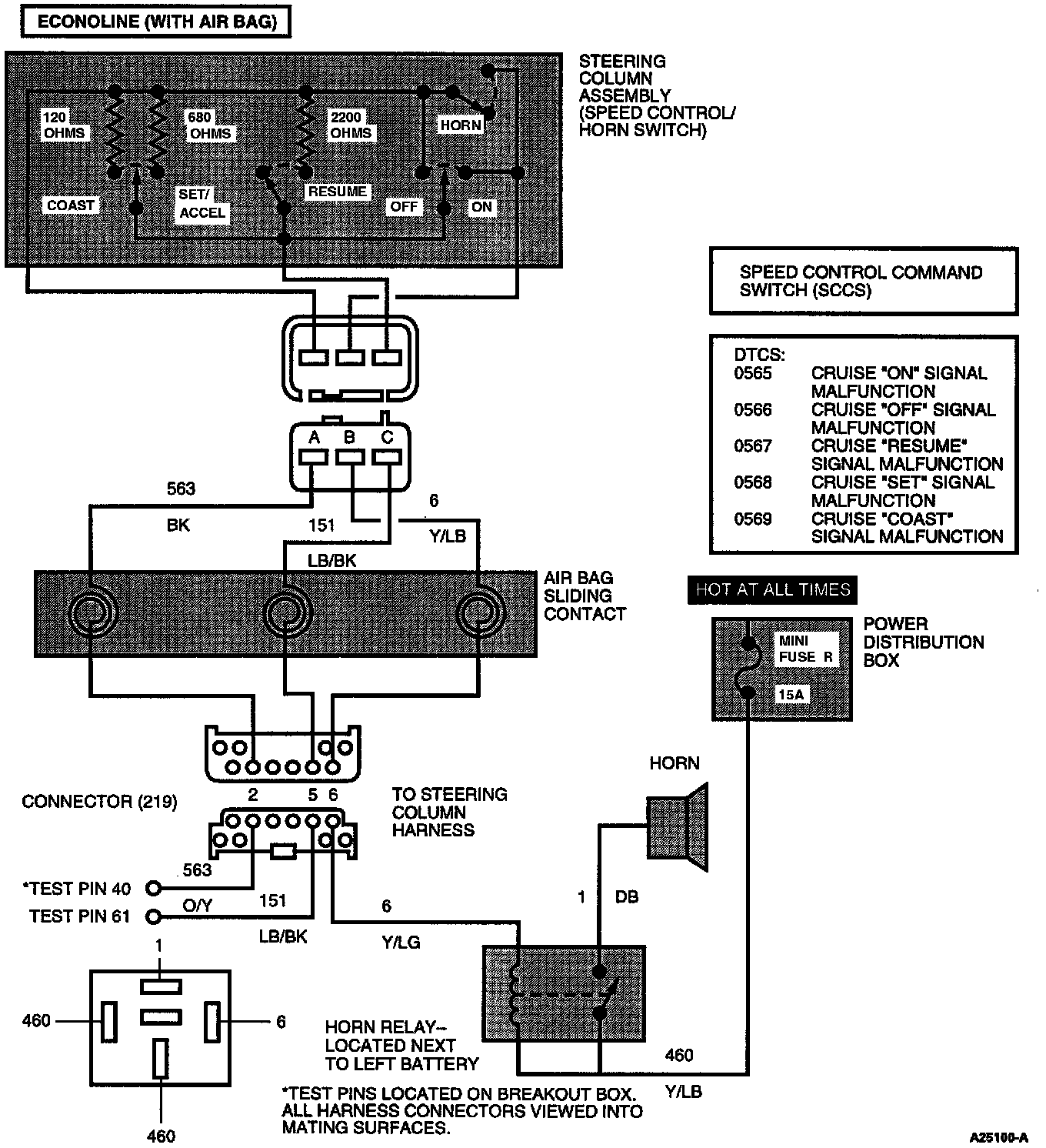

Test Schematic:
Econoline (with SRS)

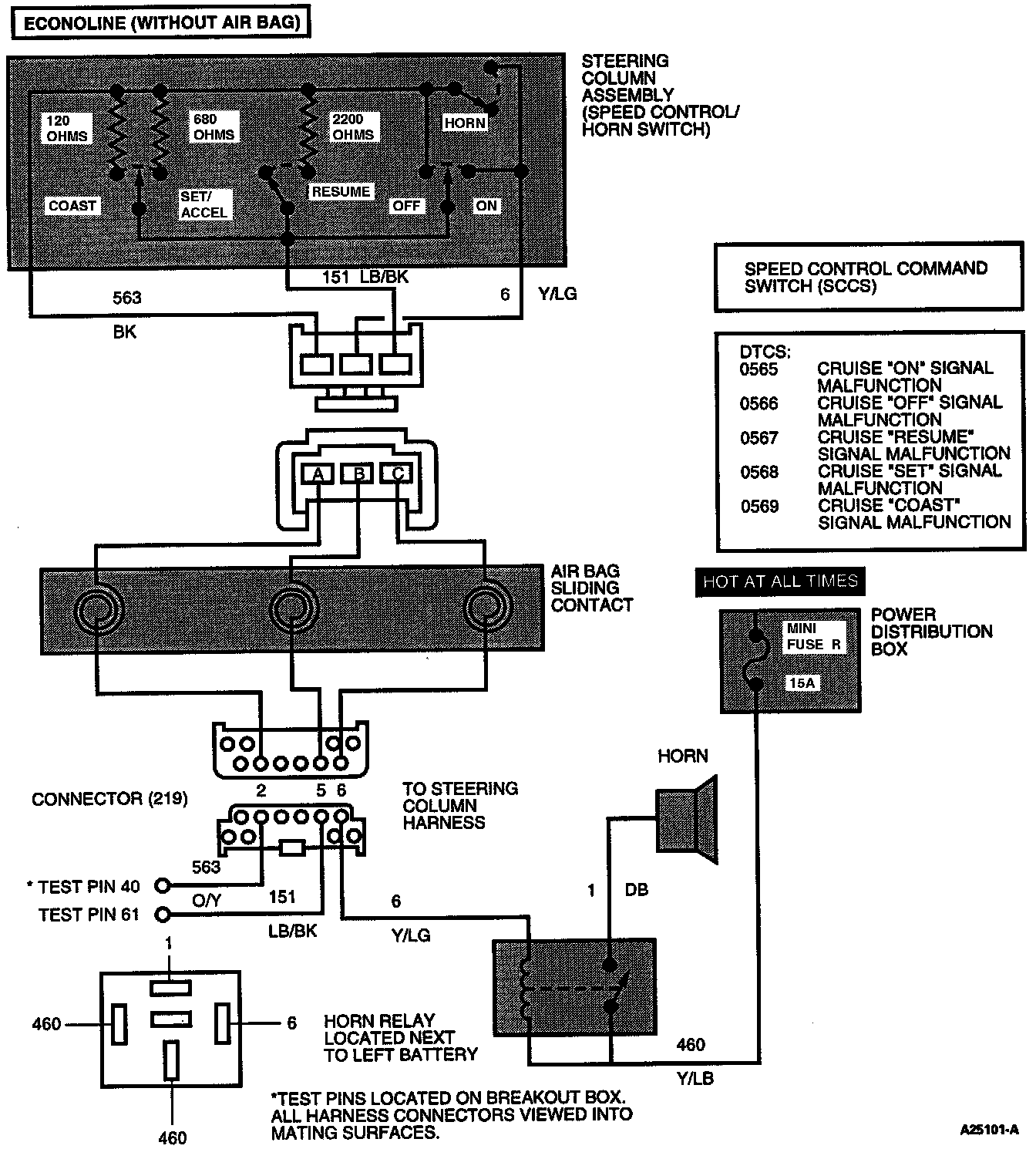

Test Schematic:
Econoline (without SRS)
