Without Autolamp/Exit Delay

Inspection and Verification

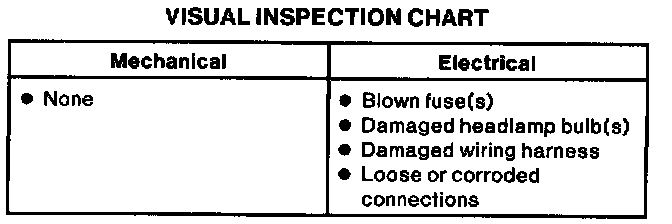

Visual Inspection Chart:






1. Verify the customer concern by operating the headlamp system.

2. Visually inspect the components of the headlamp system.

3. Check the wiring harness for obvious signs of shorts, opens, bad connections, or damage.

4. Check for improperly installed accessories.

5. If fault is not visually evident, determine the symptom and proceed to the following Symptom Chart.
