Drive Belt: Service and Repair

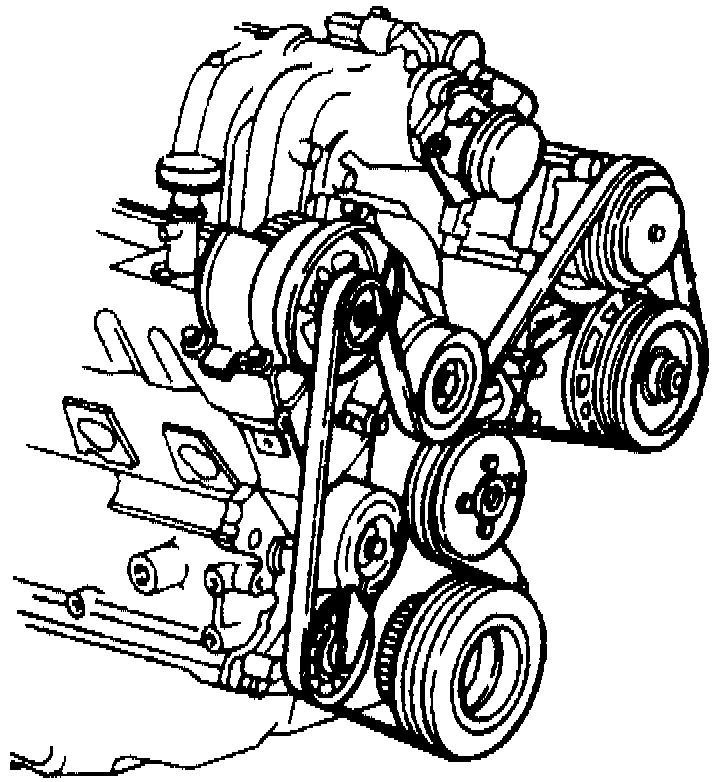

Fig. 11 Serpentine Drive Belt Routine:

REMOVAL AND INSTALLATION
1. Raise tensioner by turning counterclockwise, then remove belt.
2. Install new belt over pulleys, then raise tensioner and slide belt underneath. Release tensioner to rest pulley on belt.
