Engine Controls

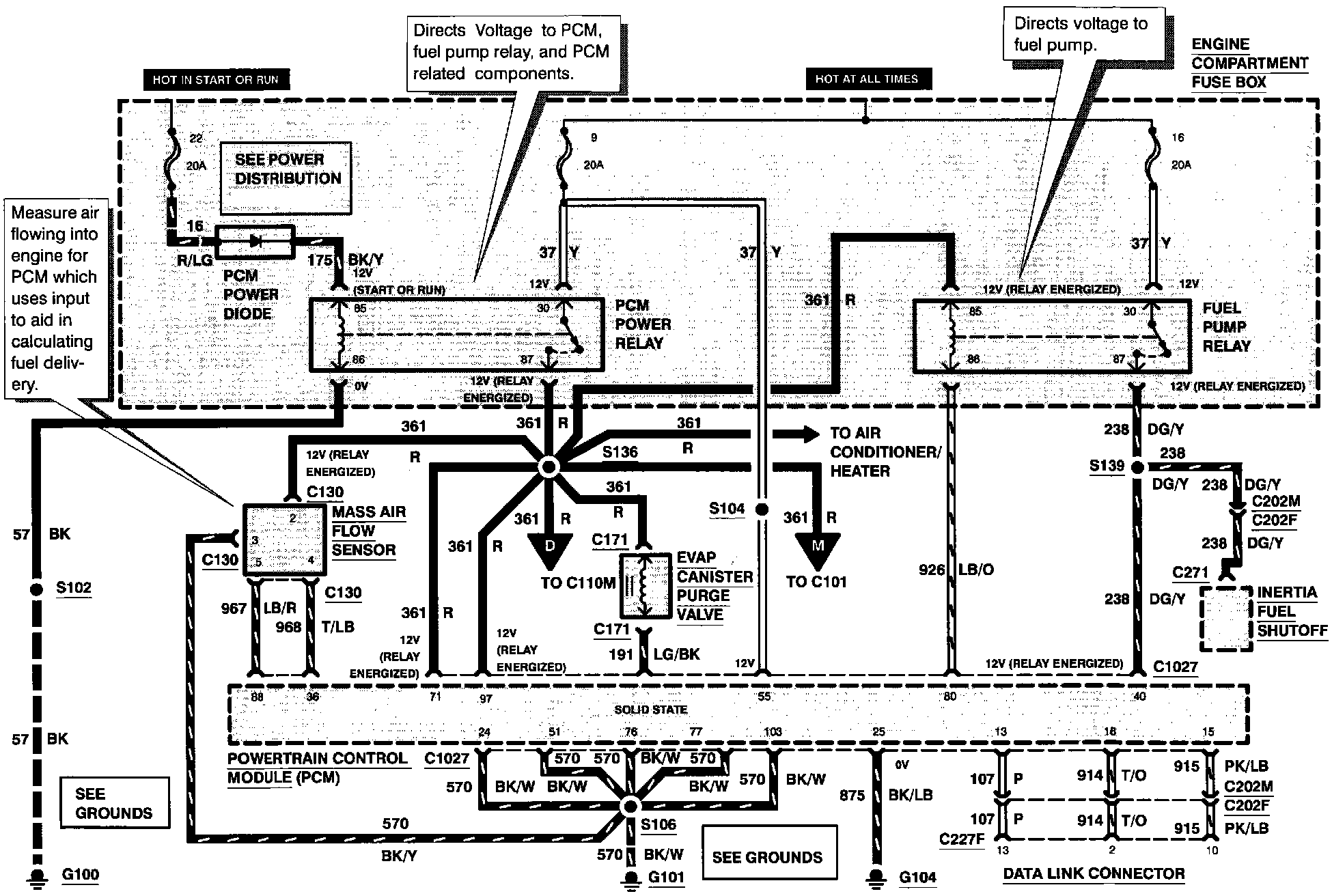

Engine Controls (Part 1 Of 7):

EVAPORATIVE EMISSION CANISTER PURGE VALVE
FUEL PUMP RELAY
MASS AIR FLOW SENSOR
PCM POWER DIODE
PCM POWER RELAY

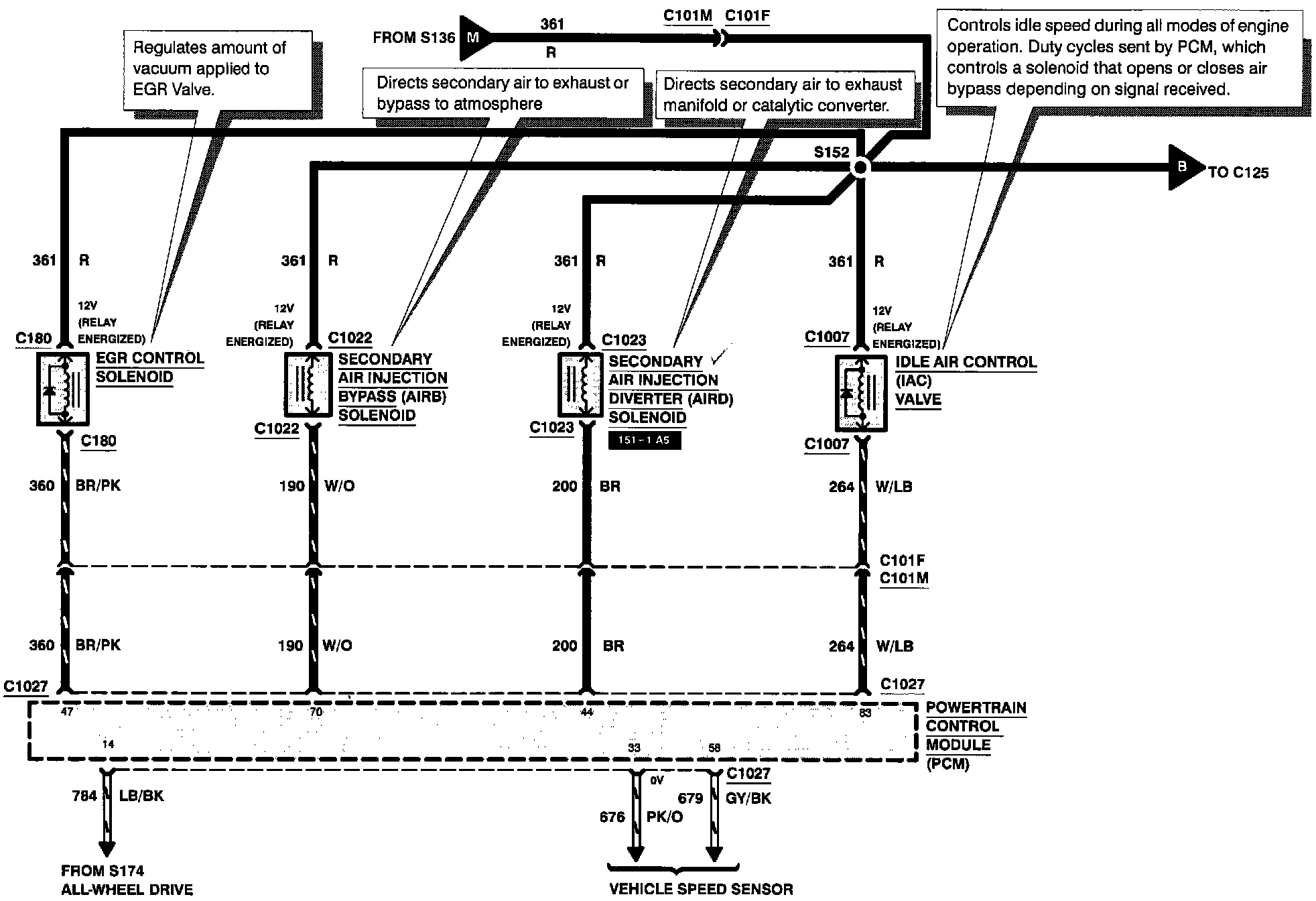

Engine Controls (Part 2 Of 7):

EGR CONTROL SOLENOID
IDLE AIR CONTROL VALVE
SECONDARY AIR INJECTION BYPASS SOLENOID
SECONDARY AIR INJECTION DIVERTER SOLENOID

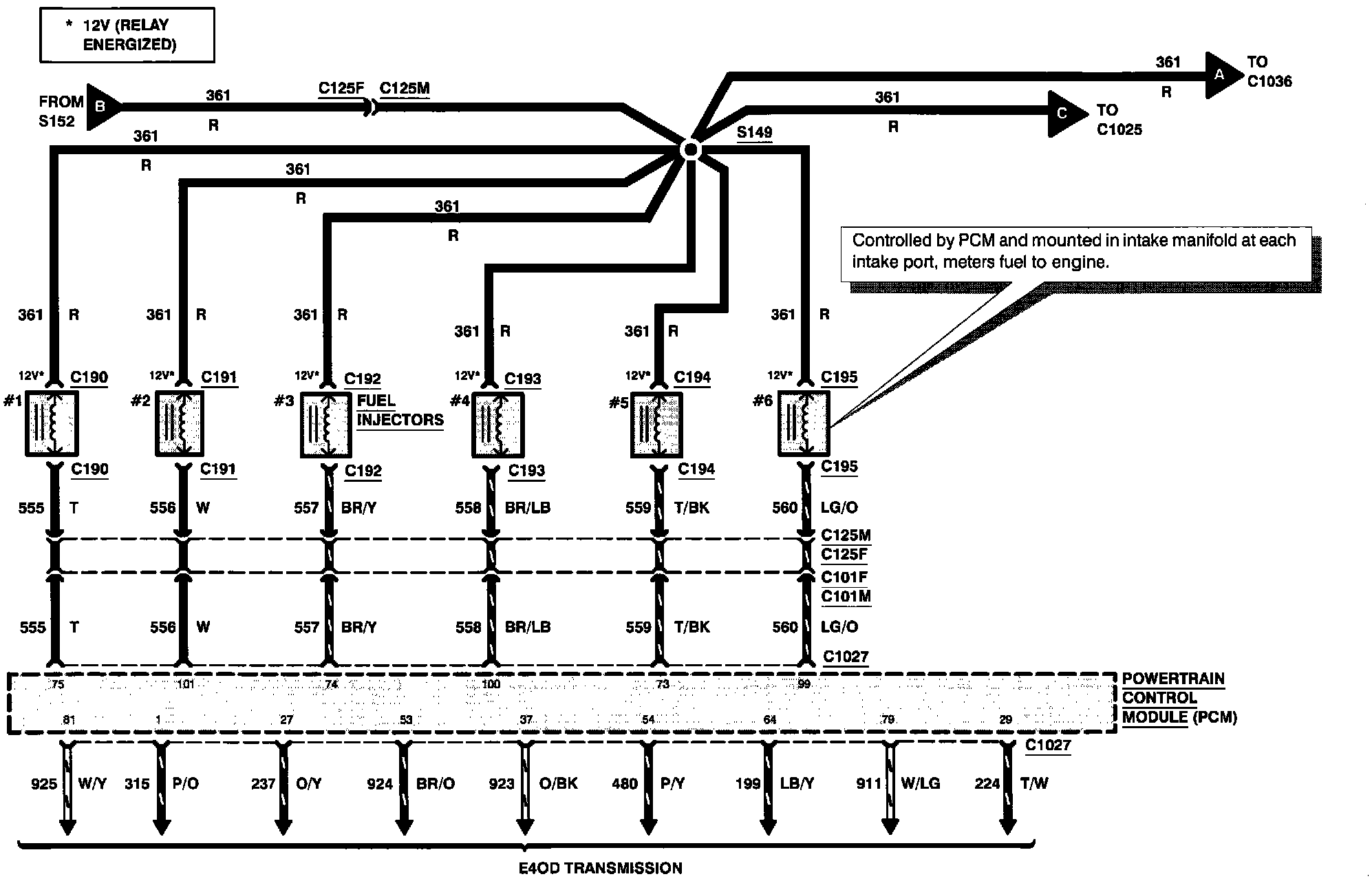

Engine Controls (Part 3 Of 7):

FUEL INJECTORS

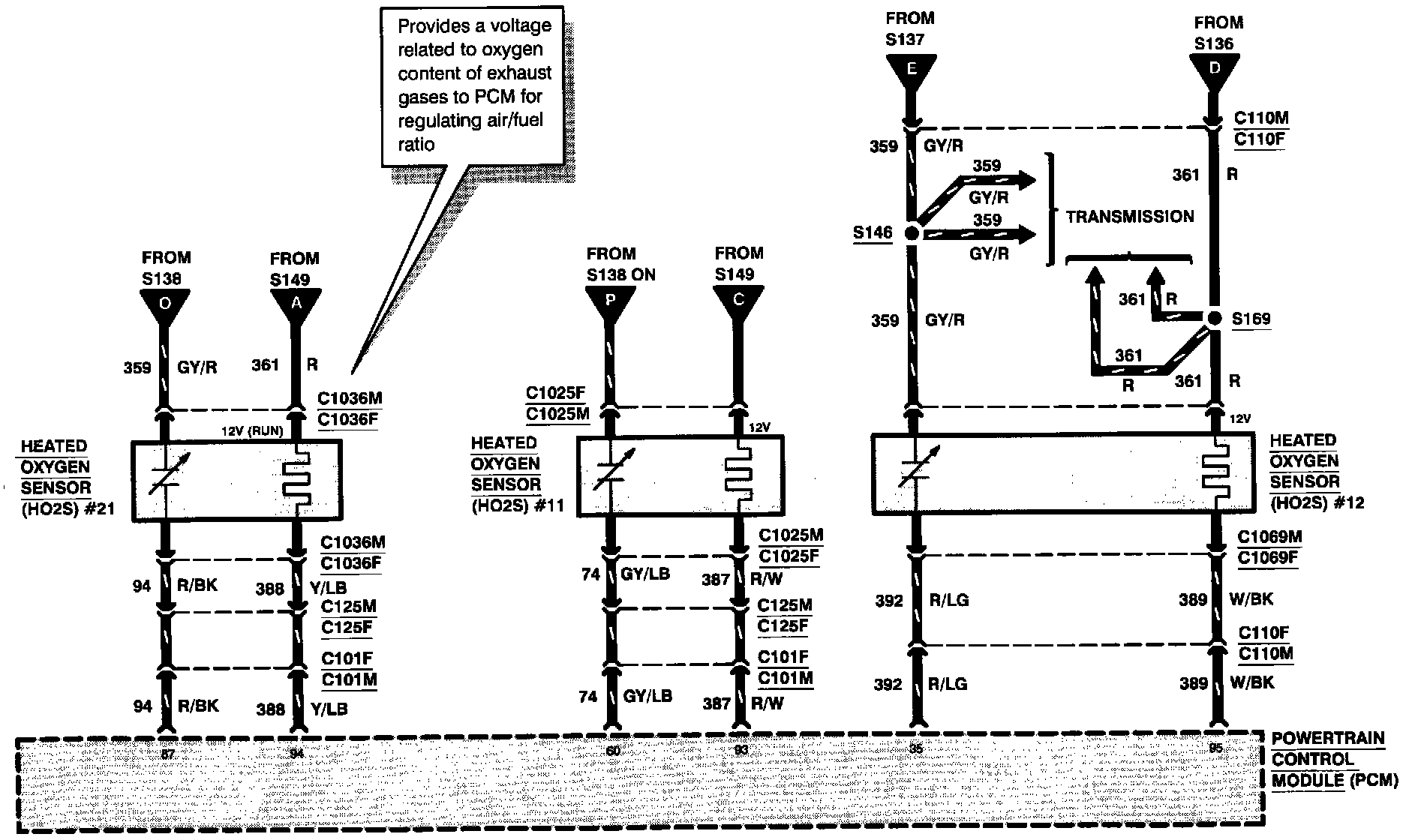

Engine Controls (Part 4 Of 7):

HEATED OXYGEN SENSOR #11
HEATED OXYGEN SENSOR #12
HEATED OXYGEN SENSOR #21

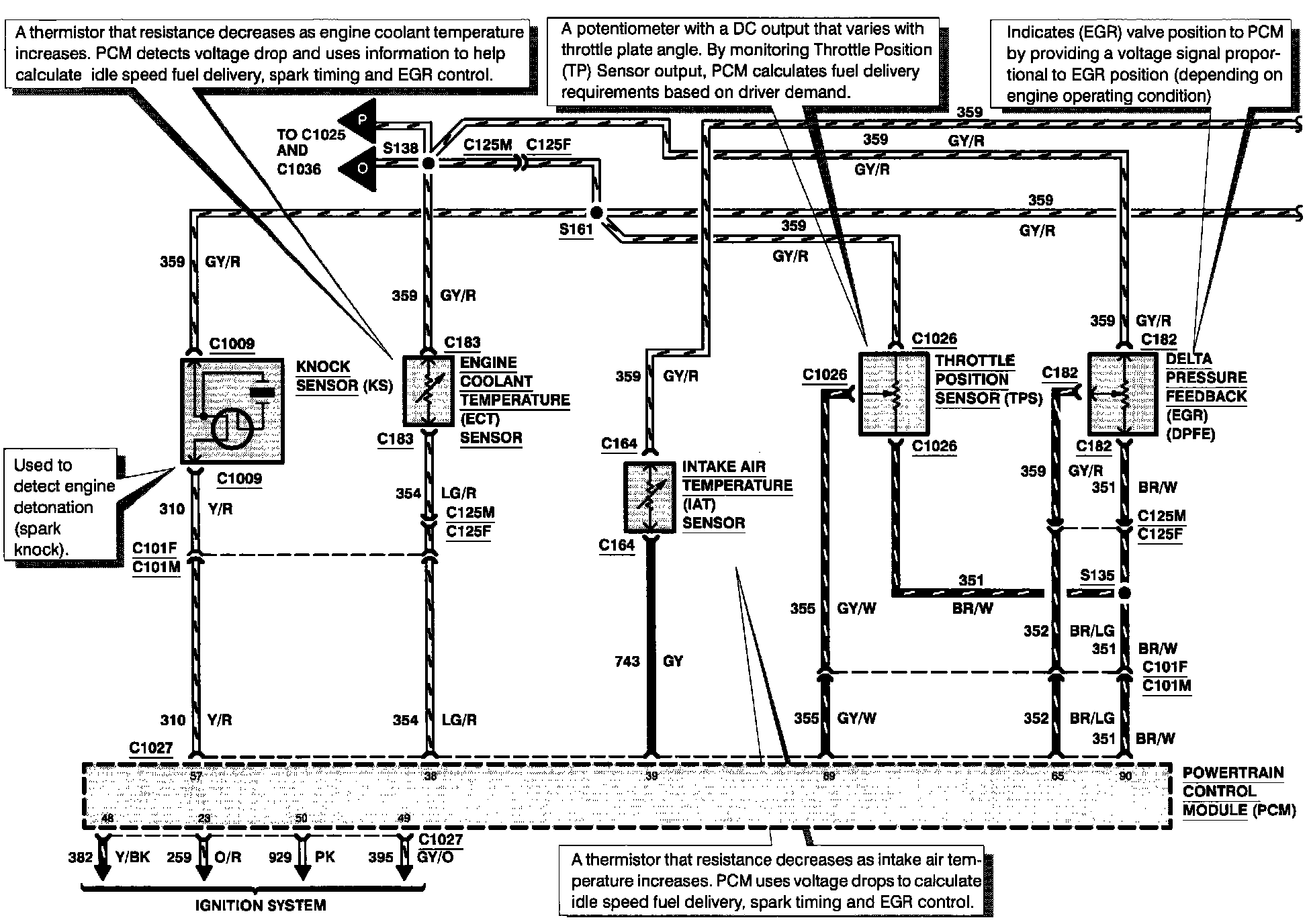

Engine Controls (Part 5 Of 7):

DELTA PRESSURE FEEDBACK EGR SENSOR
ENGINE COOLANT TEMPERATURE SENSOR
INTAKE AIR TEMPERATURE SENSOR
KNOCK SENSOR
THROTTLE POSITION SENSOR

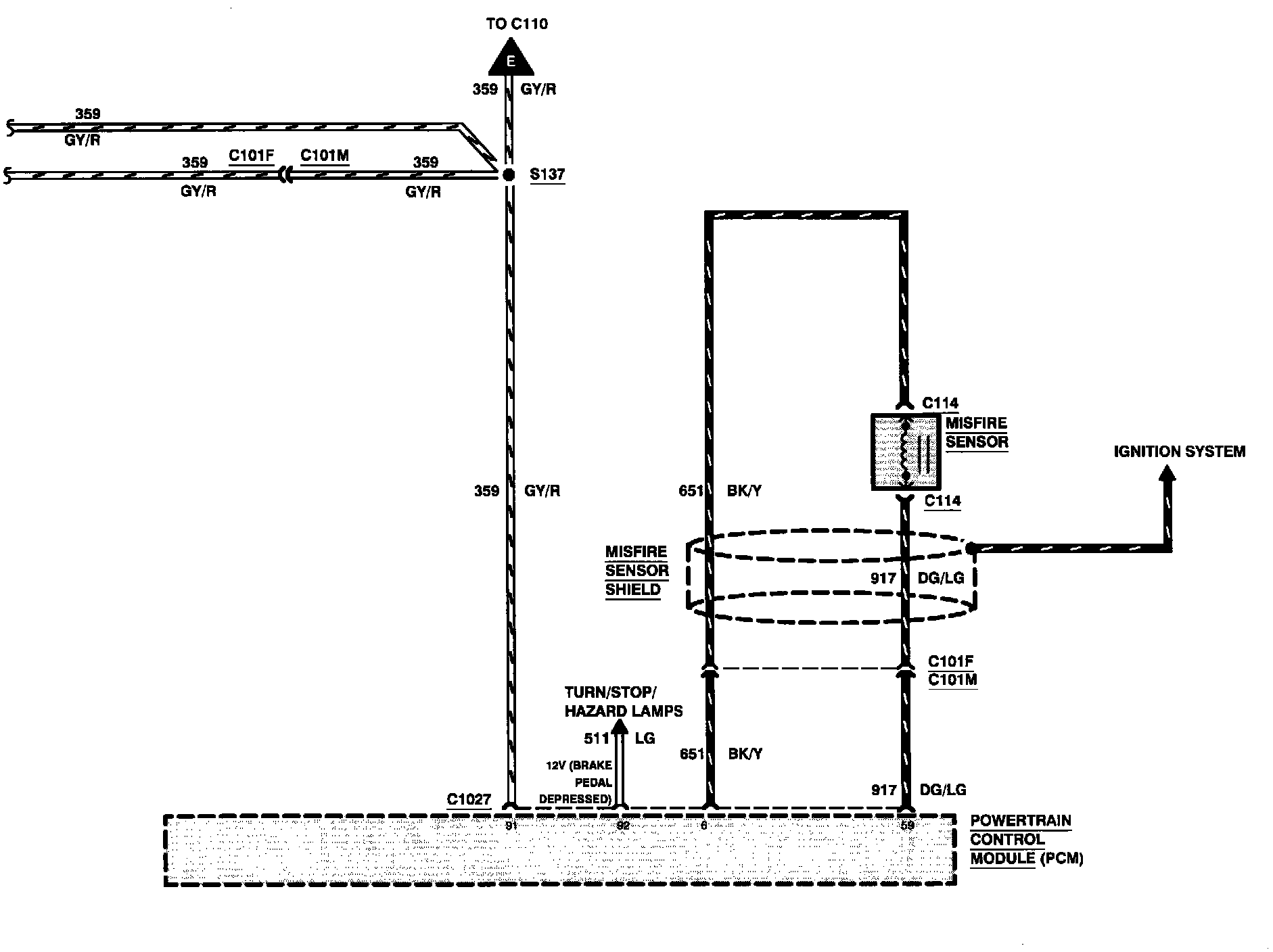

Engine Controls (Part 6 Of 7):

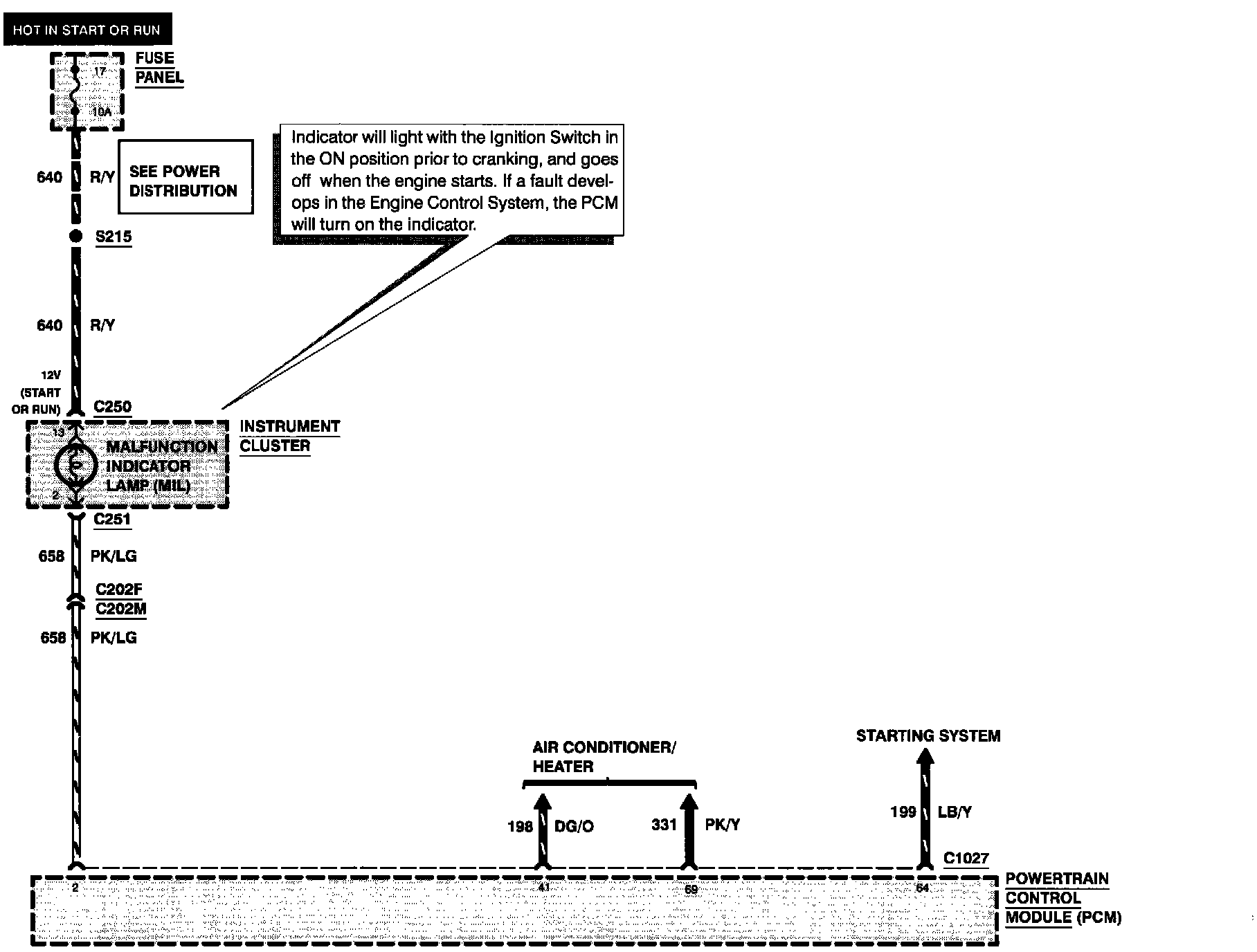

Engine Controls (Part 7 Of 7):

MALFUNCTION INDICATOR LAMP
