Engine Controls

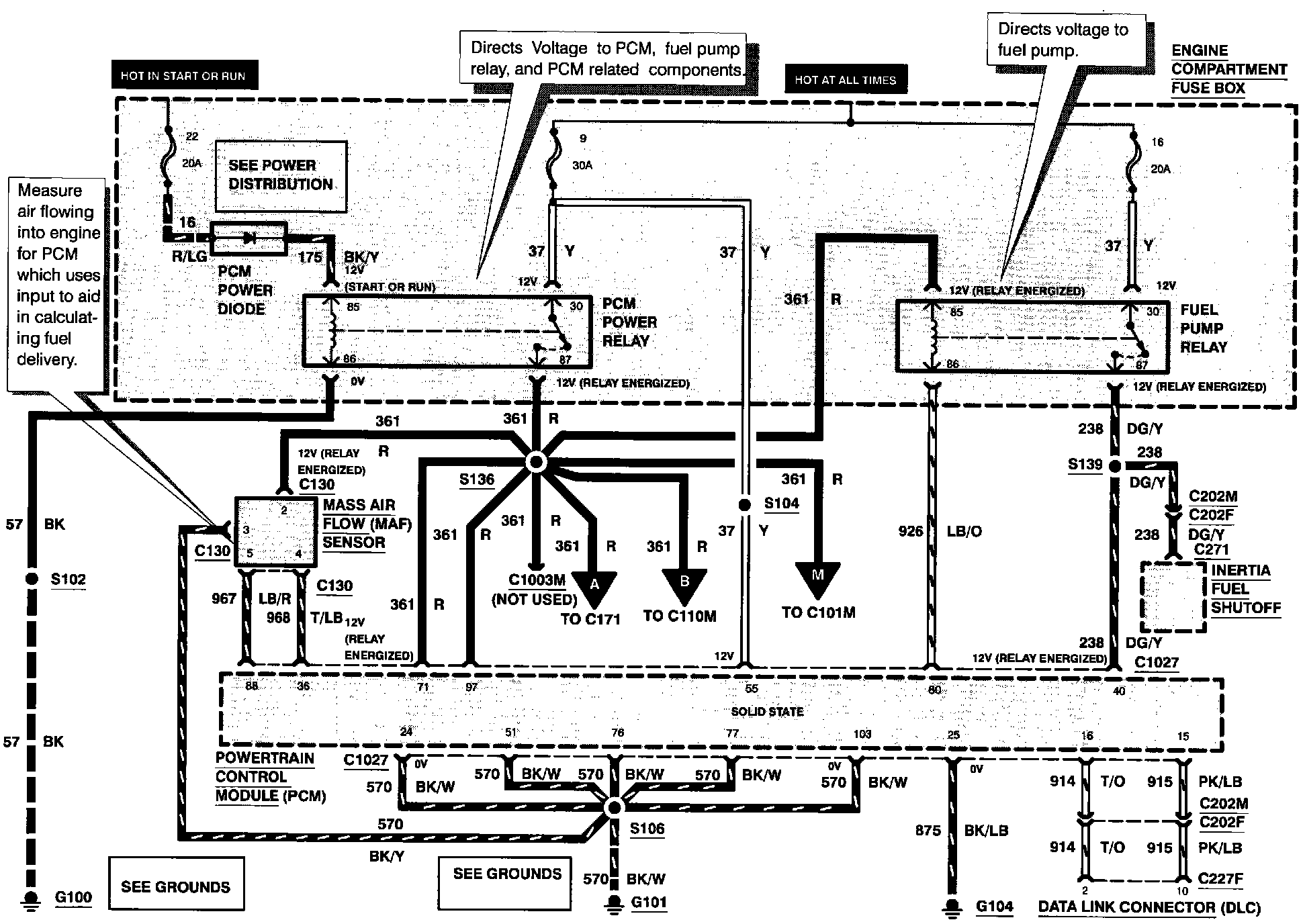

Engine Controls (Part 1 Of 8):

DATALINK CONNECTOR (DLC)
FUEL PUMP RELAY
MASS AIR FLOW SENSOR
PCM POWER DIODE
PCM POWER RELAY

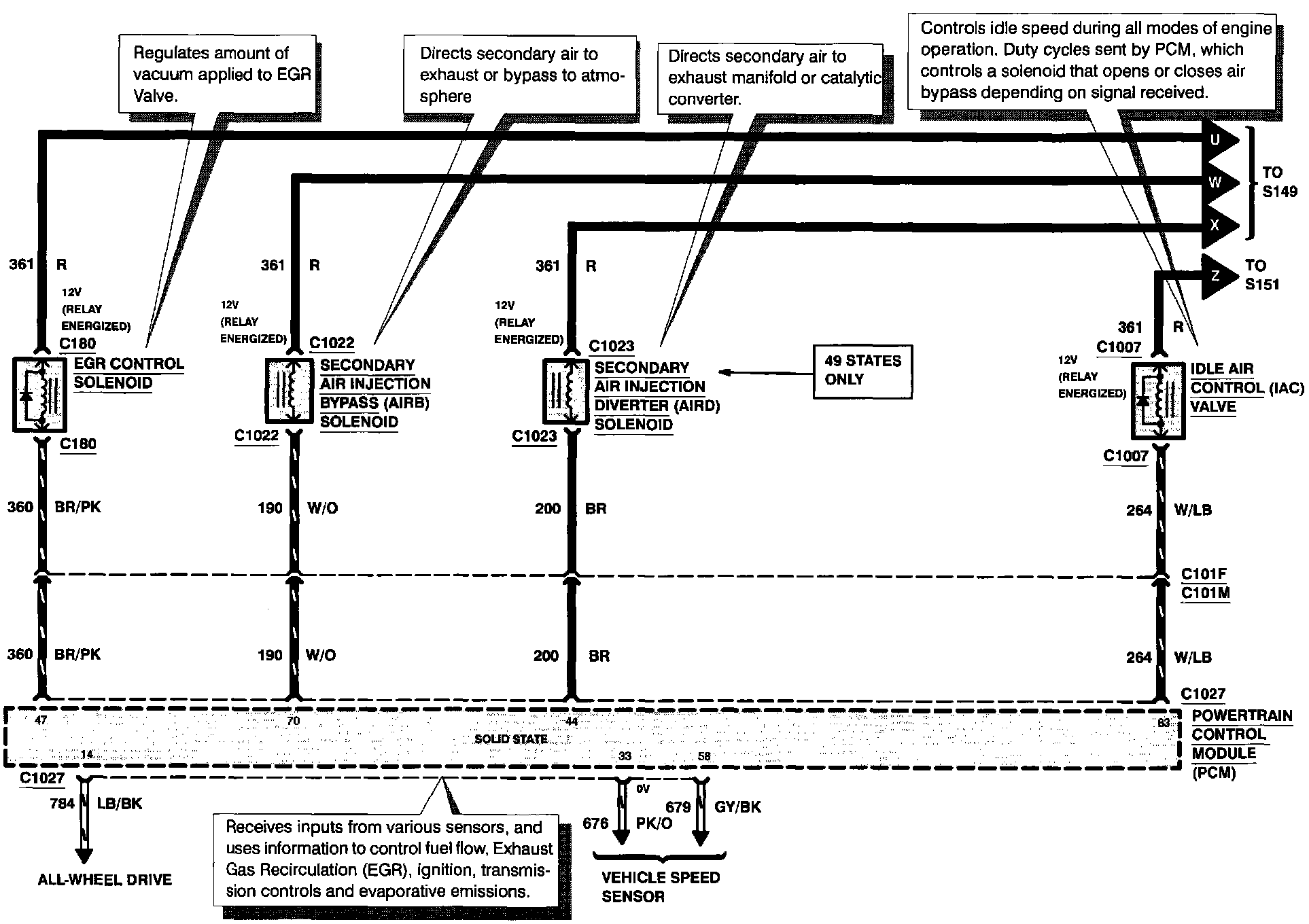

Engine Controls (Part 2 Of 8):

EGR CONTROL SOLENOID
IDLE AIR CONTROL VALVE
SECONDARY AIR INJECTION BYPASS SOLENOID
SECONDARY AIR INJECTION DIVERTER SOLENOID

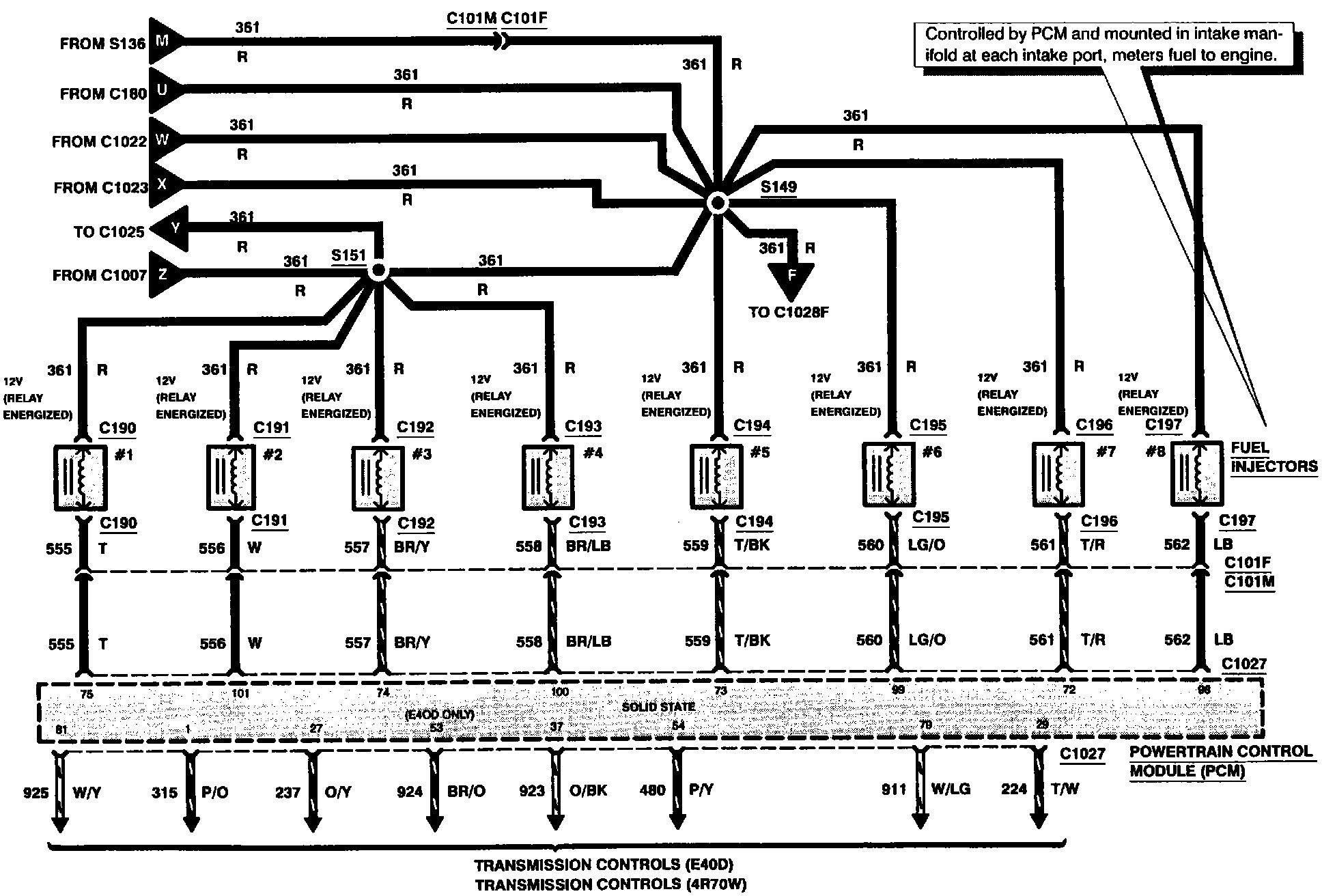

Engine Controls (Part 3 Of 8):

FUEL INJECTORS

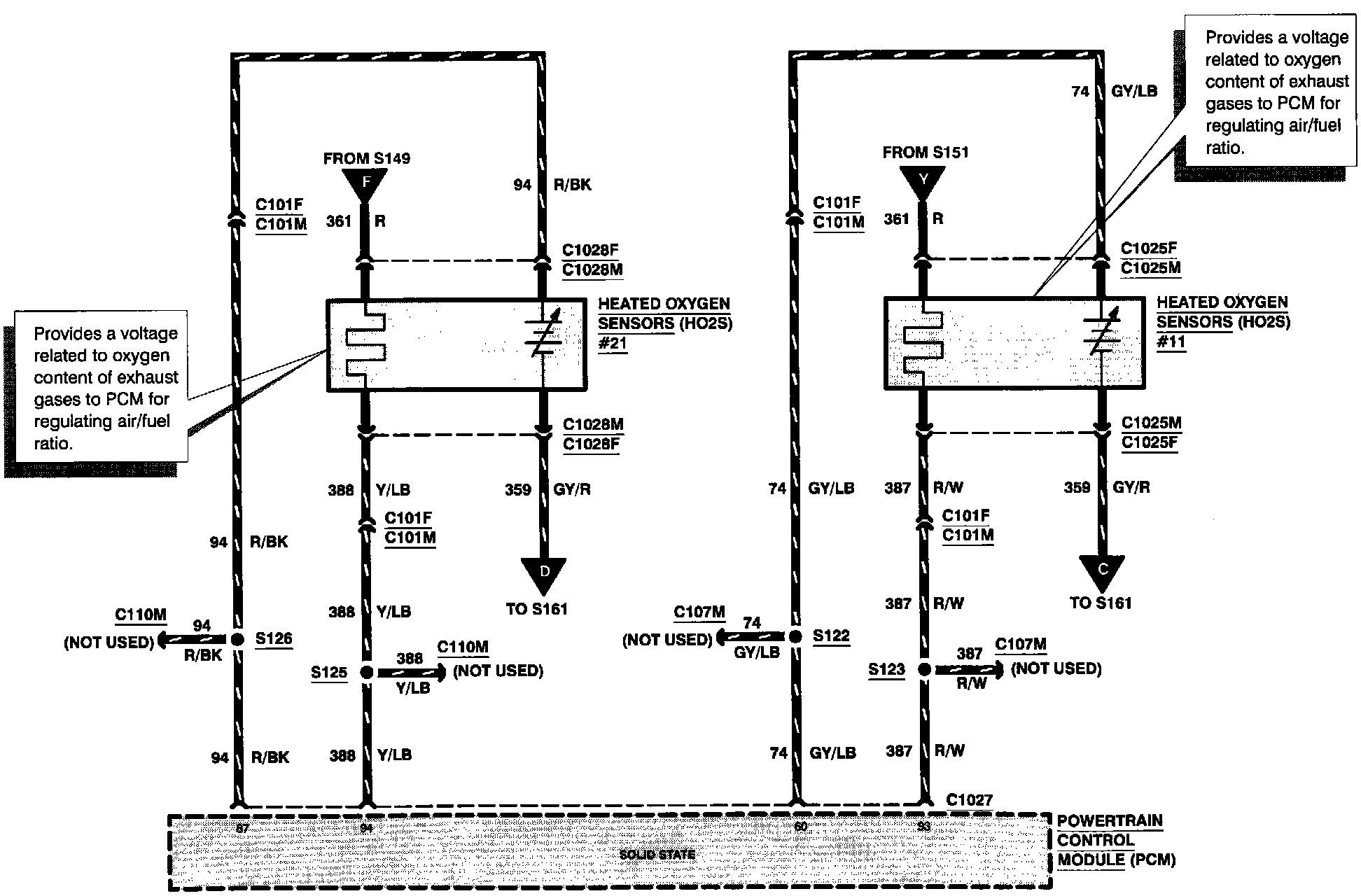

Engine Controls (Part 4 Of 8):

HEATED OXYGEN SENSOR #11
HEATED OXYGEN SENSOR #21

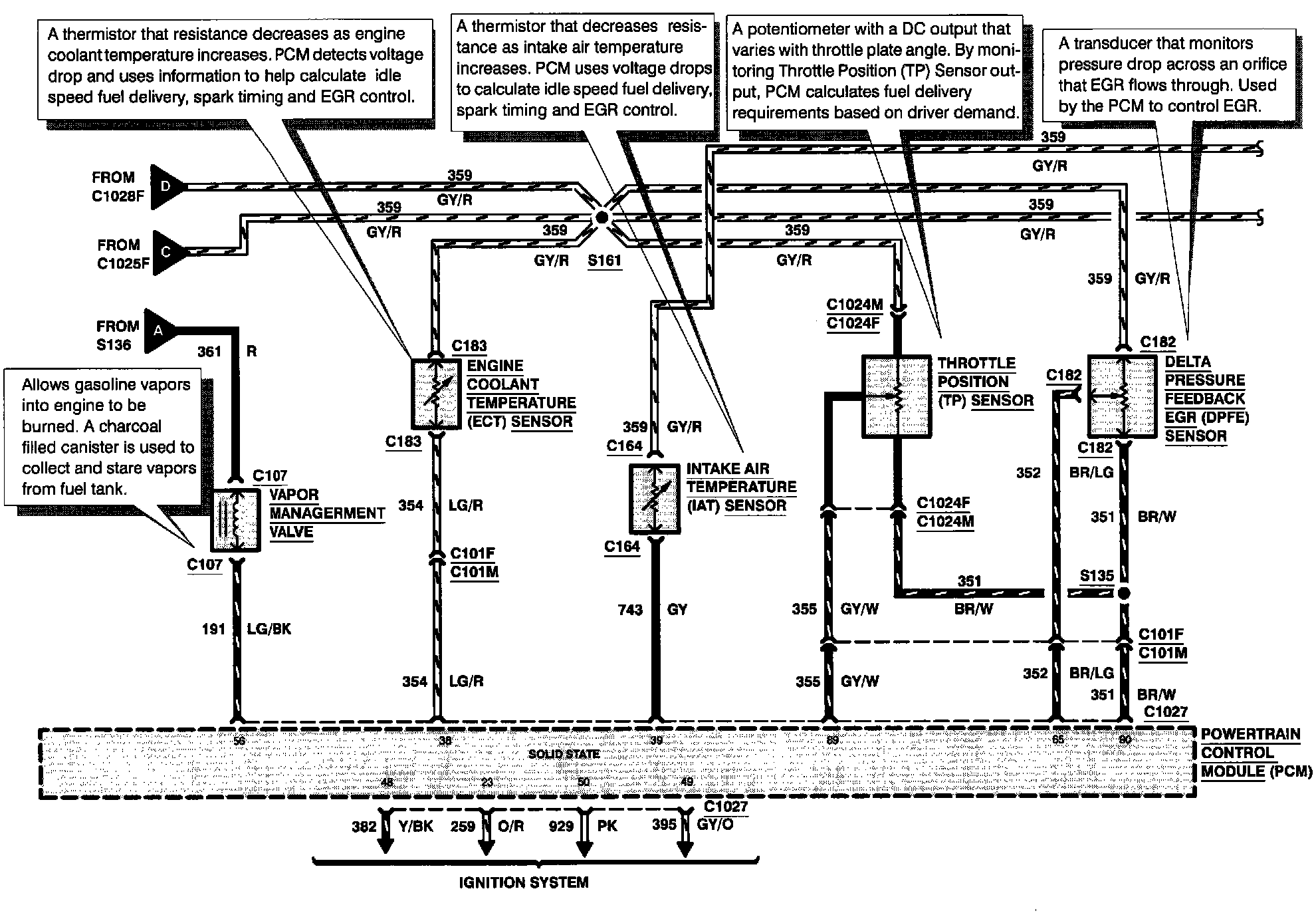

Engine Controls (Part 5 Of 8):

DELTA PRESSURE FEEDBACK EGR SENSOR
ENGINE COOLANT TEMPERATURE SENSOR
INTAKE AIR TEMPERATURE SENSOR
THROTTLE POSITION SENSOR
VAPOR MANAGEMENT VALVE

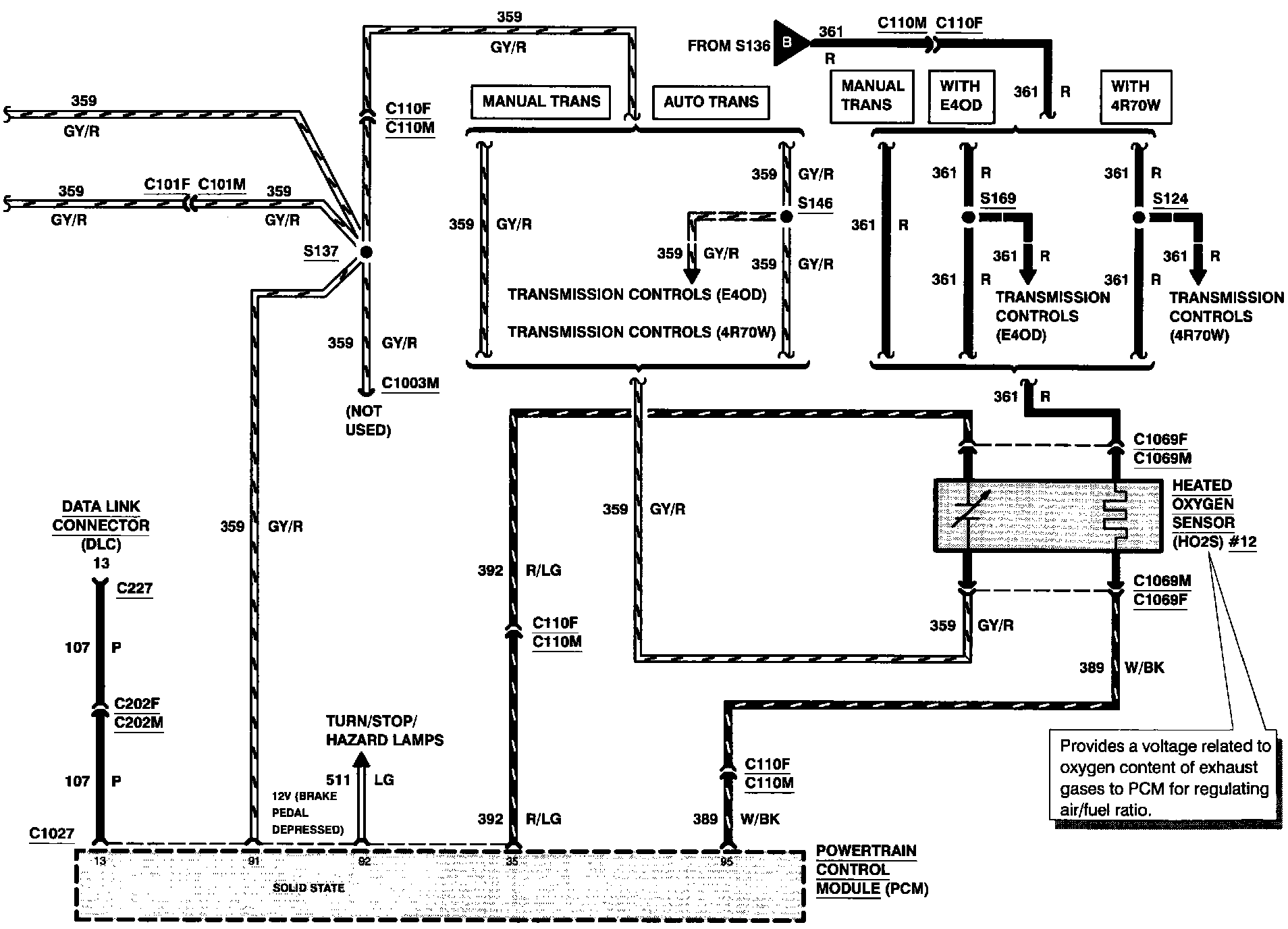

Engine Controls (Part 6 Of 8):

HEATED OXYGEN SENSOR #12

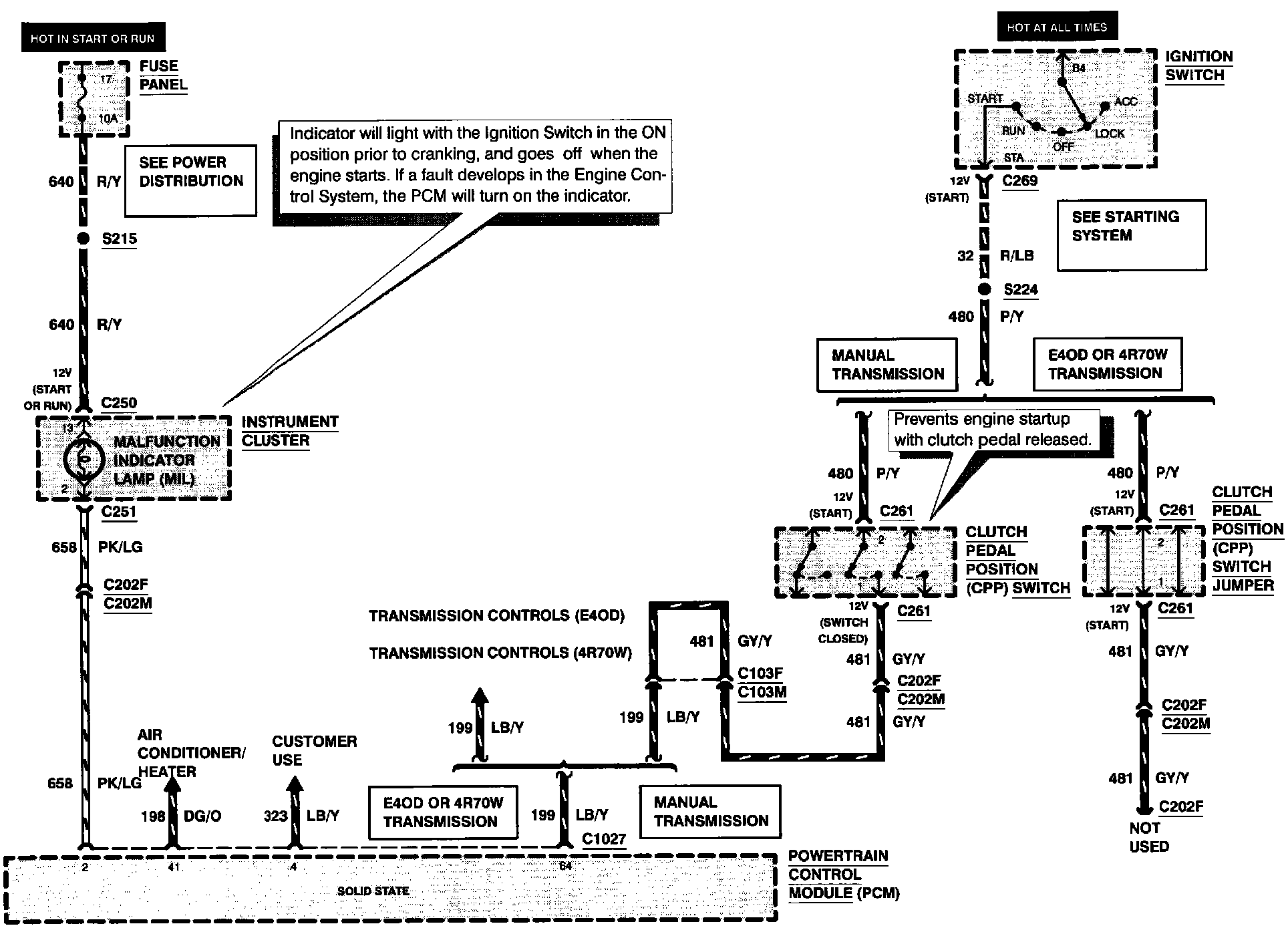

Engine Controls (Part 7 Of 8):

MALFUNCTION INDICATOR LAMP

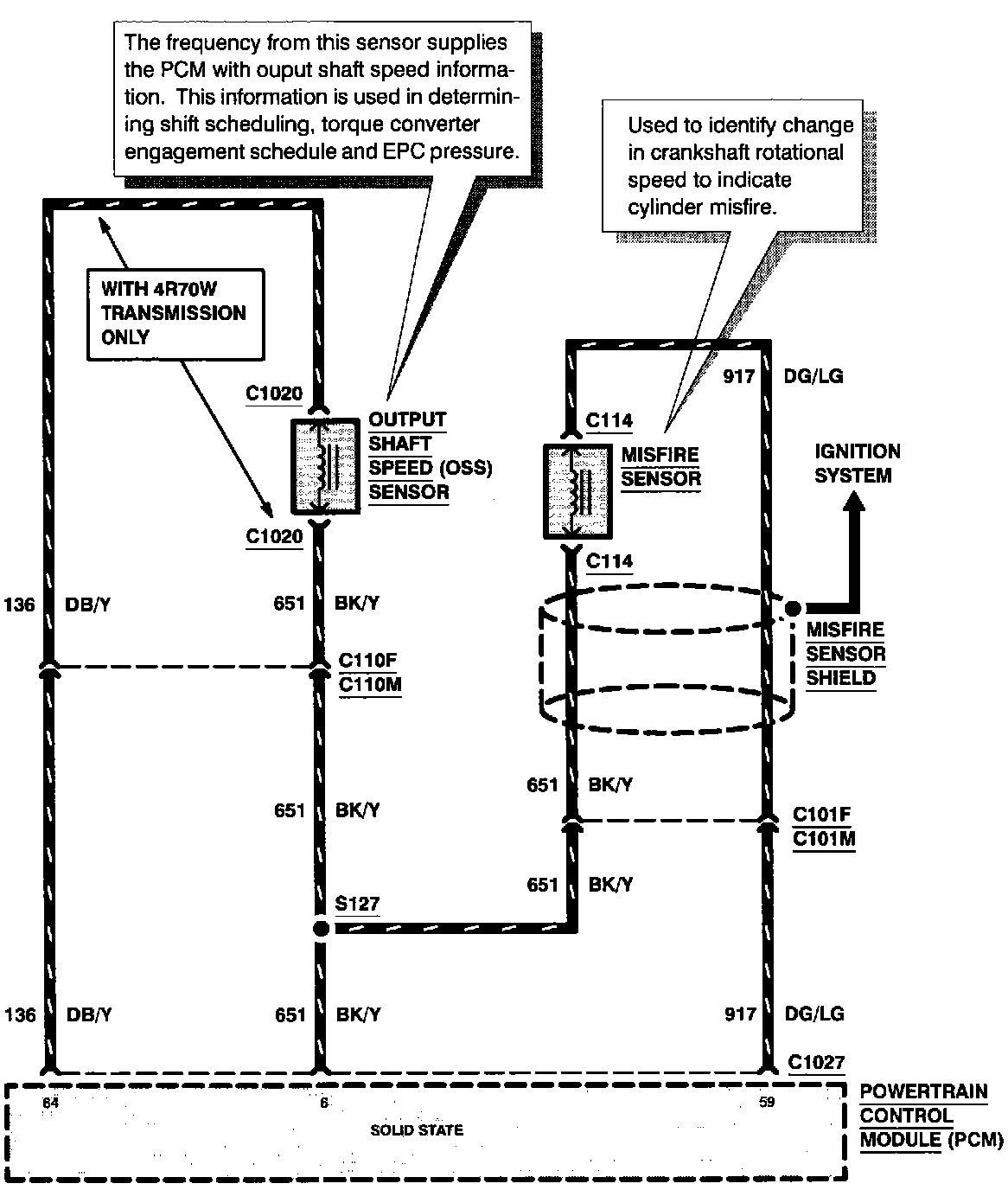

Engine Controls (Part 8 Of 8):

MISFIRE SENSOR
OUTPUT SHAFT SPEED SENSOR
