Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1996
>>
F 150 2WD Pickup V8-351 5.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Transmission Position Sensor/Switch
>>
Diagrams
>>
With 4R70W Transmission
With 4R70W Transmission

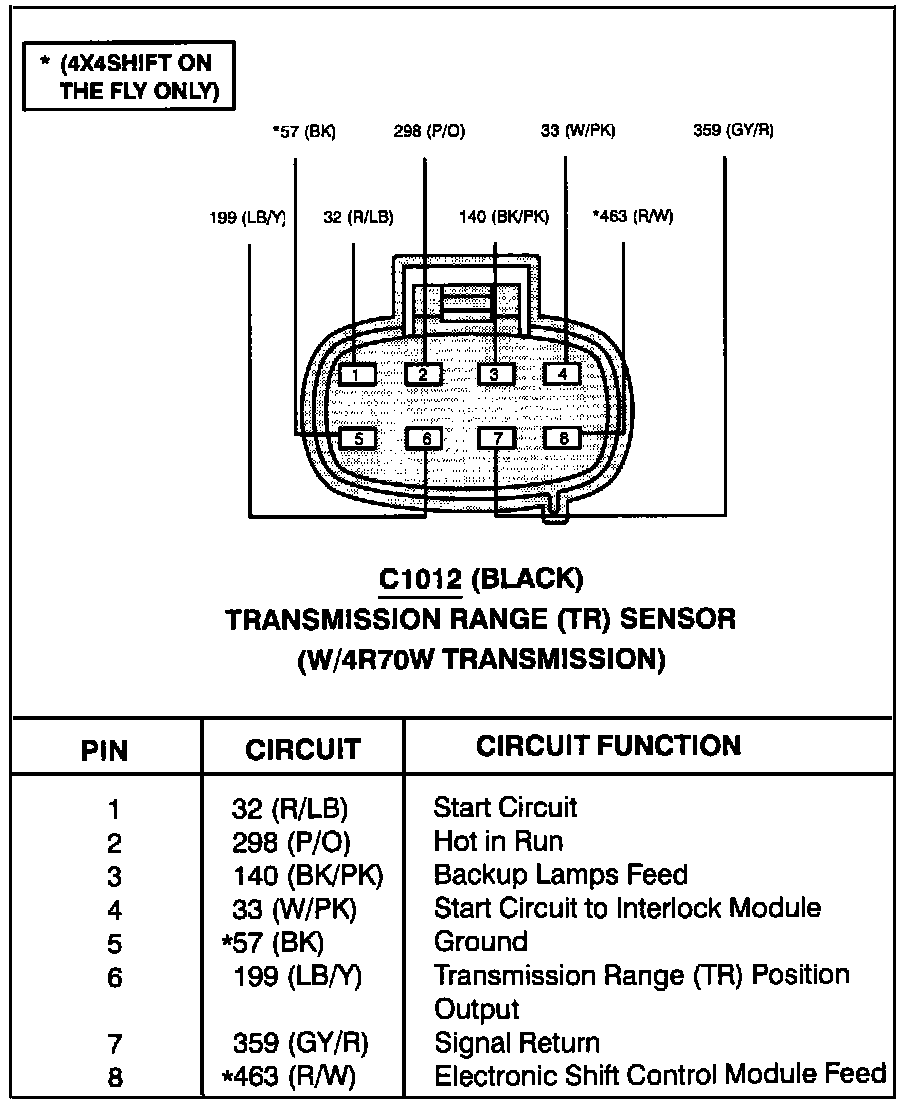

Transmission Range Sensor (With 4R70W Transmission):
