Engine Views

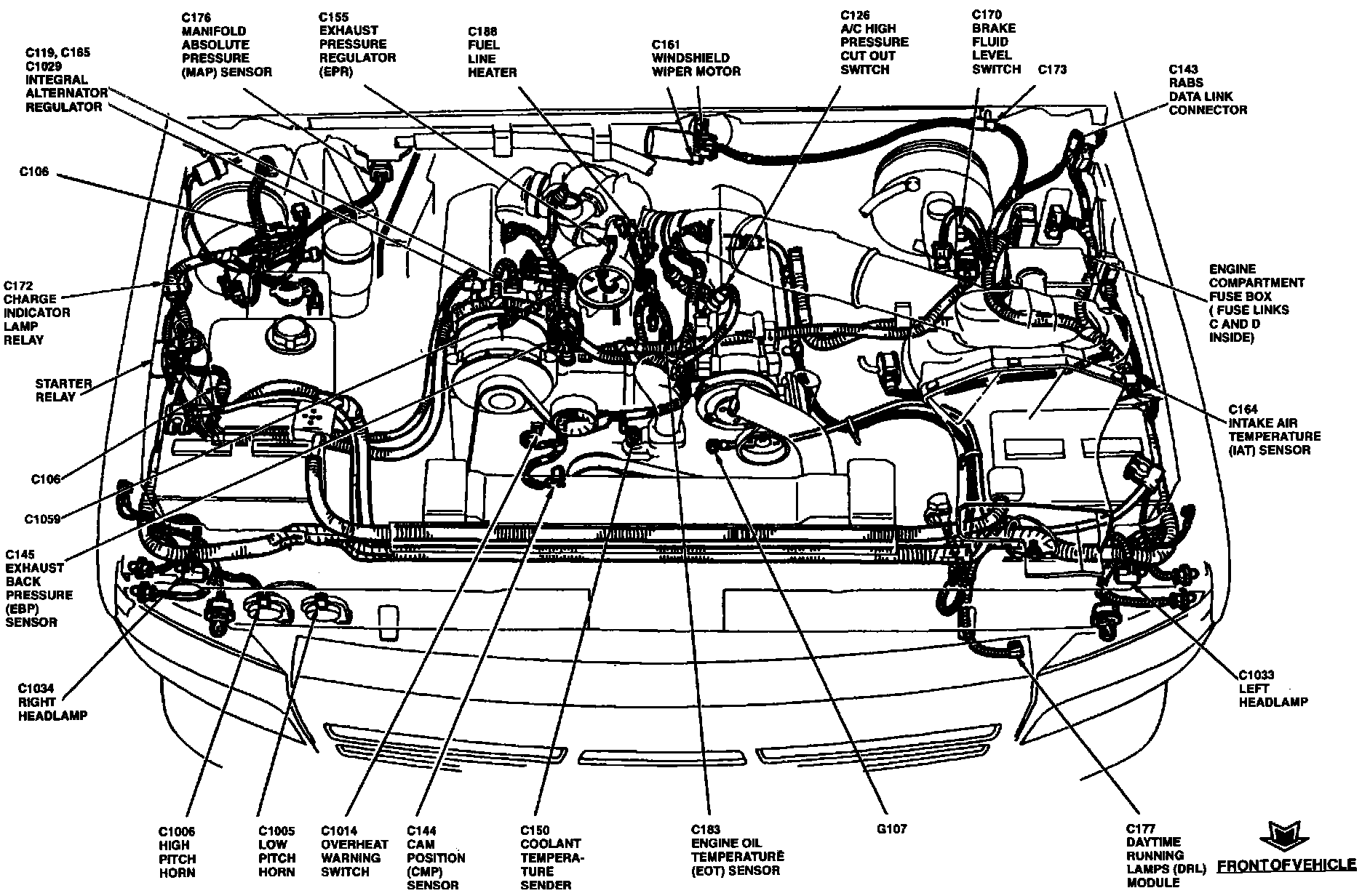

Engine View:

A/C HIGH PRESSURE CUT OUT SWITCH
BRAKE FLUID LEVEL SWITCH
CAM POSITION SENSOR
CHARGE INDICATOR LAMP RELAY
COOLANT TEMPERATURE SENDER
DAYTIME RUNNING LAMPS MODULE
ENGINE COMPARTMENT FUSE BOX
ENGINE OIL TEMPERATURE SENSOR
EXHAUST BACK PRESSURE SENSOR
EXHAUST PRESSURE REGULATOR
FUEL LINE HEATER
FUSE LINK C
FUSE LINK D
HIGH PITCH HORN
INTAKE AIR TEMPERATURE SENSOR
INTEGRAL ALTERNATOR REGULATOR
LEFT HEADLAMP
LOW PITCH HORN
MANIFOLD ABSOLUTE PRESSURE SENSOR
OVERHEAT WARNING SWITCH
REAR ANTI-LOCK BRAKE SYSTEM DATA LINK CONNECTOR
RIGHT HEADLAMP
STARTER RELAY
WINDSHIELD WIPER MOTOR

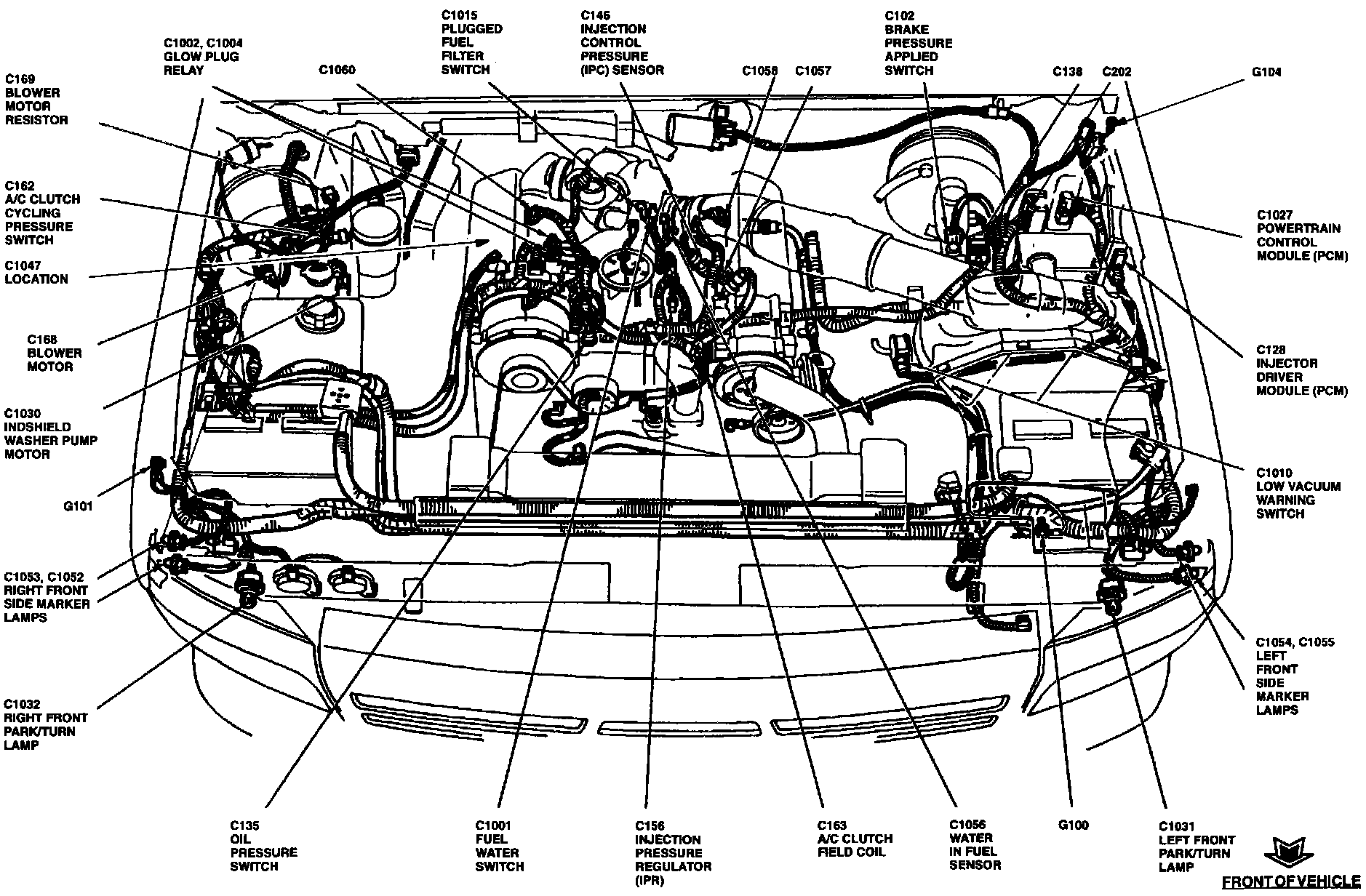

Engine View:

A/C CLUTCH CYCLING PRESSURE SWITCH
A/C CLUTCH FIELD COIL
BLOWER MOTOR
BLOWER MOTOR RESISTOR
BRAKE PRESSURE APPLIED SWITCH
FUEL WATER SWITCH
GLOW PLUG RELAY
INJECTION PRESSURE REGULATOR
INJECTION CONTROL PRESSURE SENSOR
INJECTOR DRIVER MODULE
LEFT FRONT PARK/TURN LAMP
LEFT FRONT SIDE MARKER LAMPS
LOW VACUUM WARNING SWITCH
OIL PRESSURE SWITCH
PLUGGED FUEL FILTER SWITCH
POWERTRAIN CONTROL MODULE
RIGHT FRONT PARK/TURN LAMP
RIGHT FRONT SIDE MARKER LAMPS
WATER IN FUEL SENSOR
WINDSHIELD WASHER PUMP MOTOR

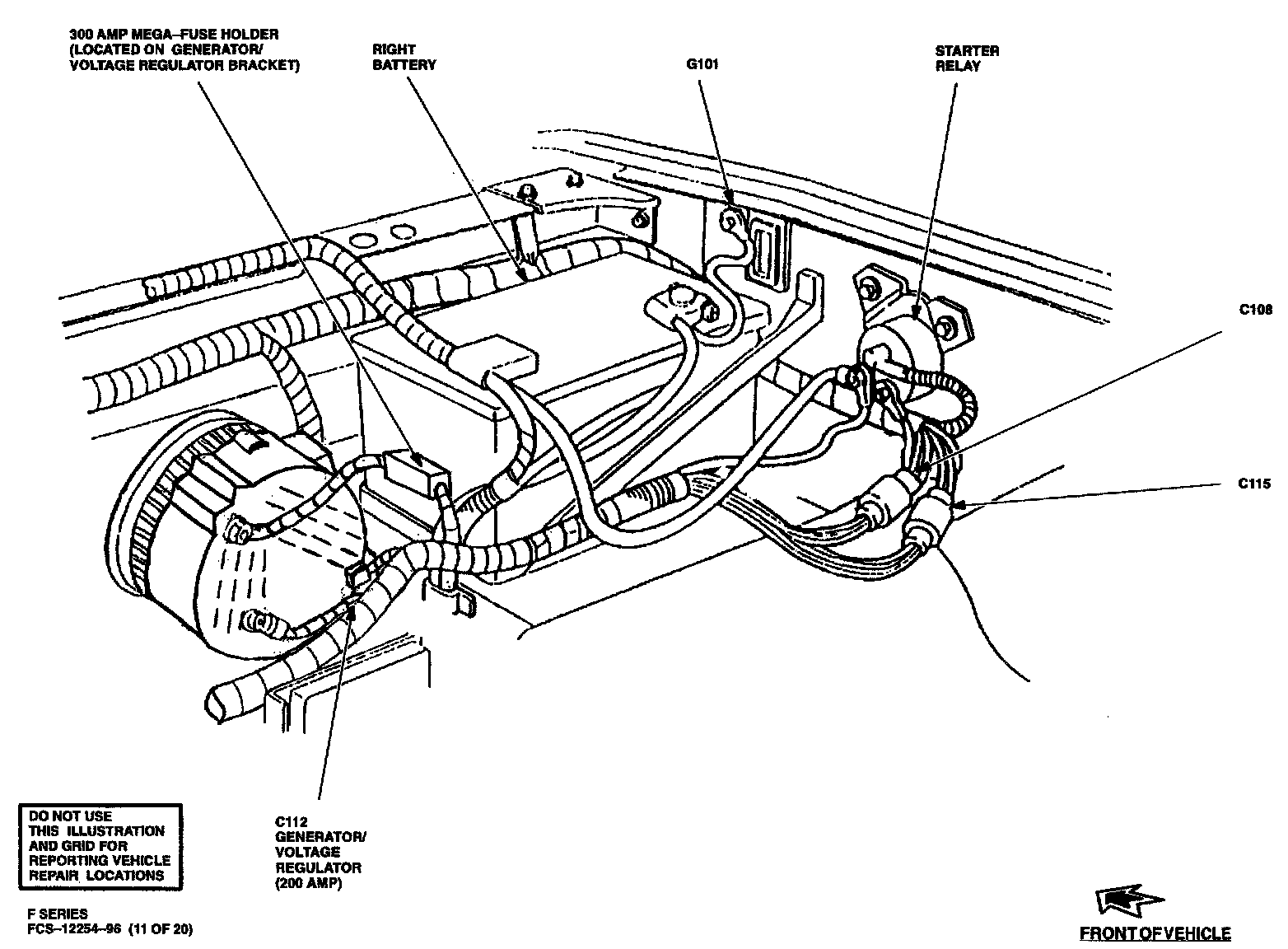

Engine View:

300 AMP MEGA-FUSE HOLDER
GENERATOR/VOLTAGE REGULATOR
RIGHT BATTERY
STARTER RELAY
