Home
>>
Ford
>>
1996
>>
F 250 4WD Pickup V8-351 5.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Diagrams
>>
Connector Views
Connector Views

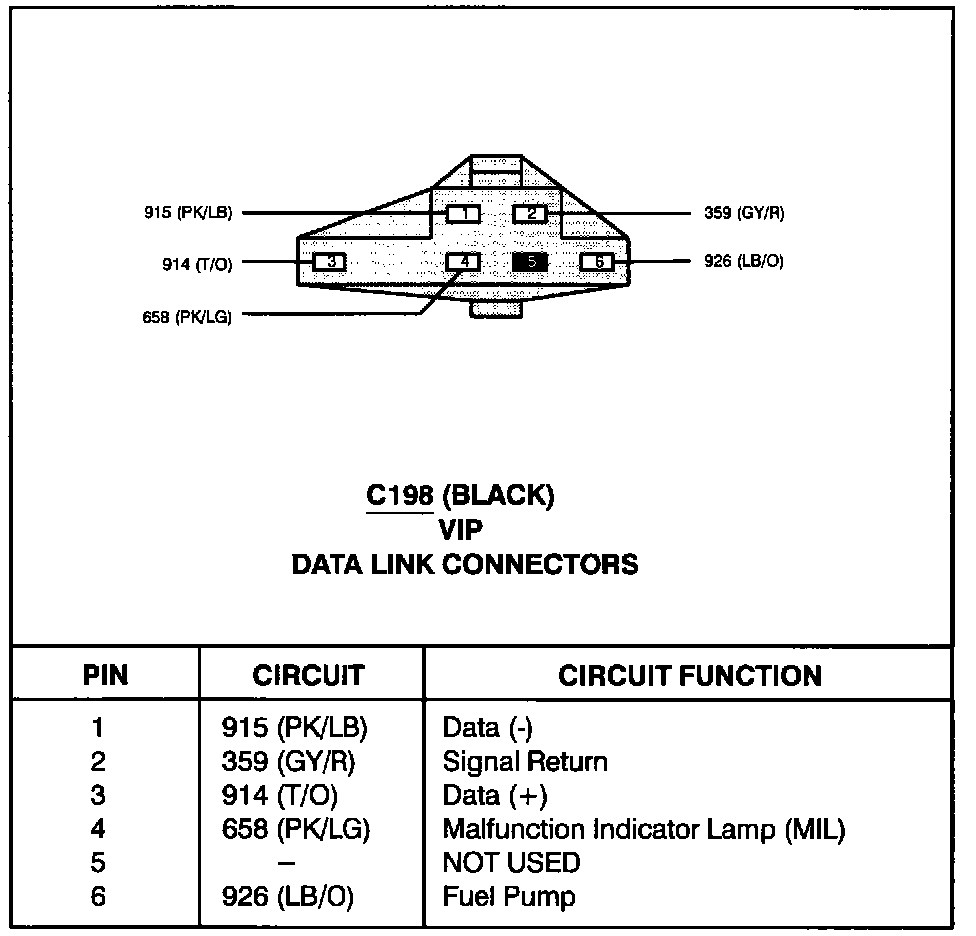

Data Link Connectors (C198):
