Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1996
>>
F 250 4WD Pickup V8-351 5.8L
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Instrument Panel
>>
Speedometer Module
>>
Diagrams
>>
Connector Views
Connector Views

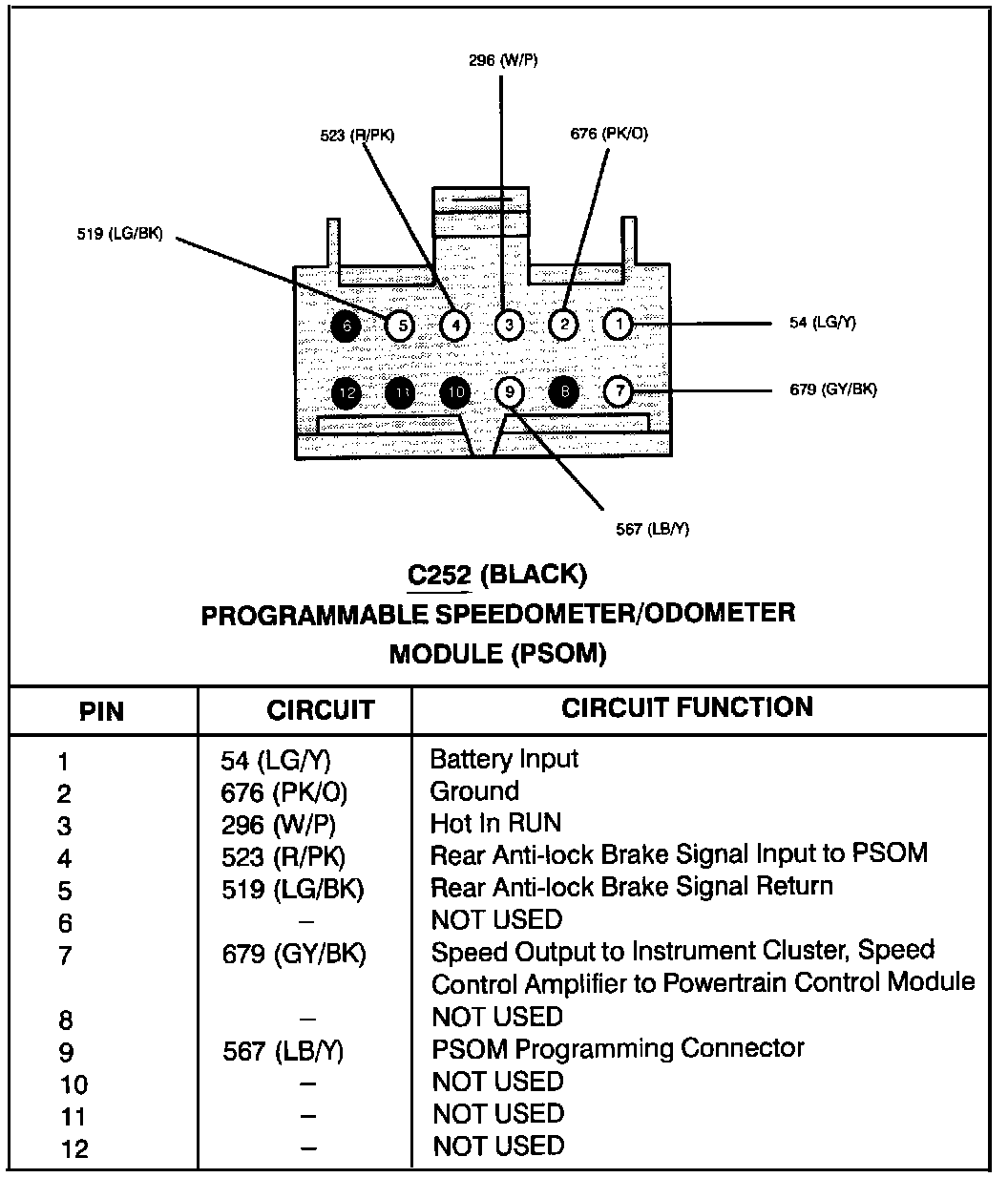

Programmable Speedometer/Odometer Module (C252):
