Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1996
>>
F 250 4WD Pickup V8-460 7.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Connector Views
>>
With California Emissions
With California Emissions

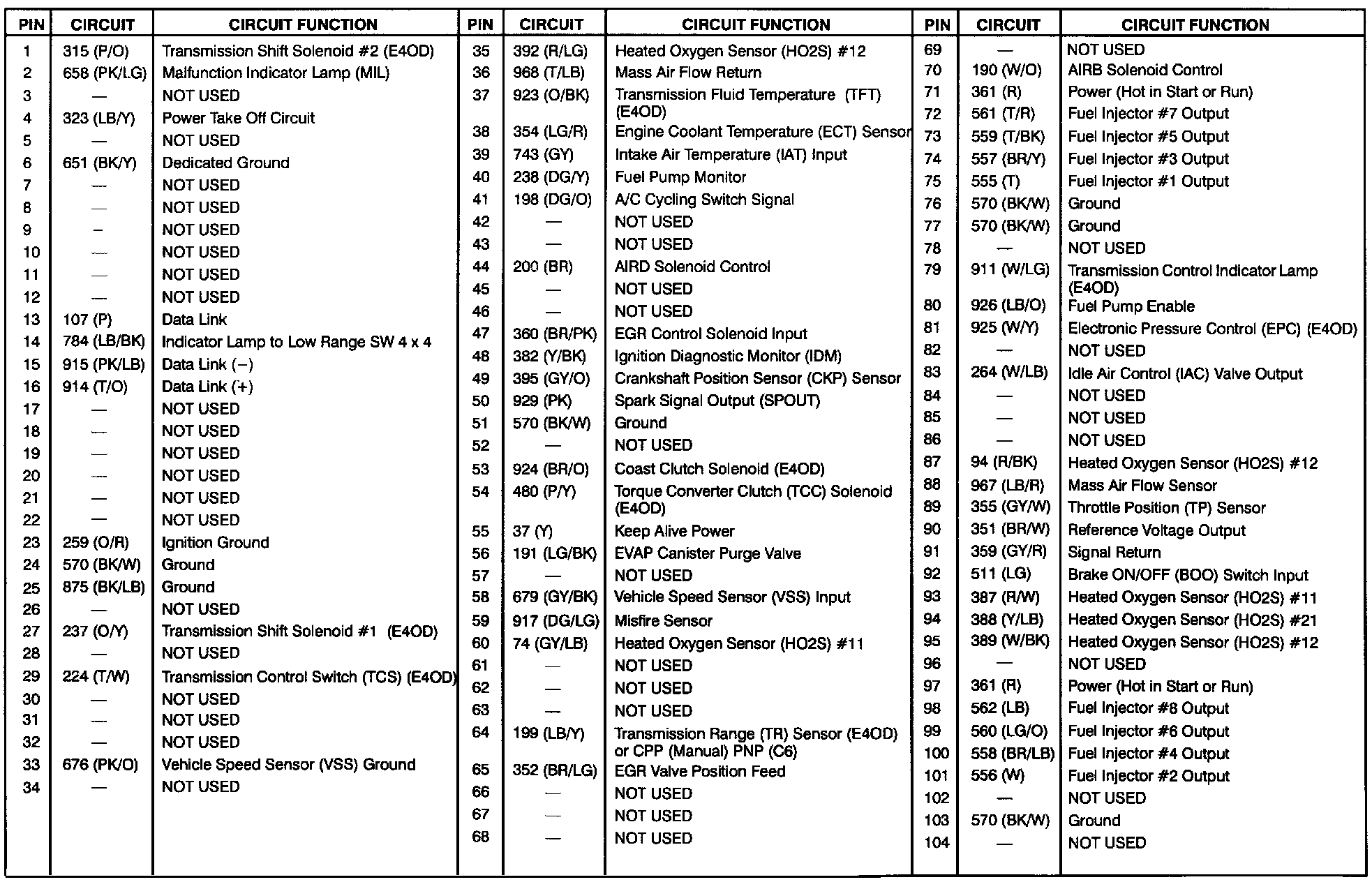

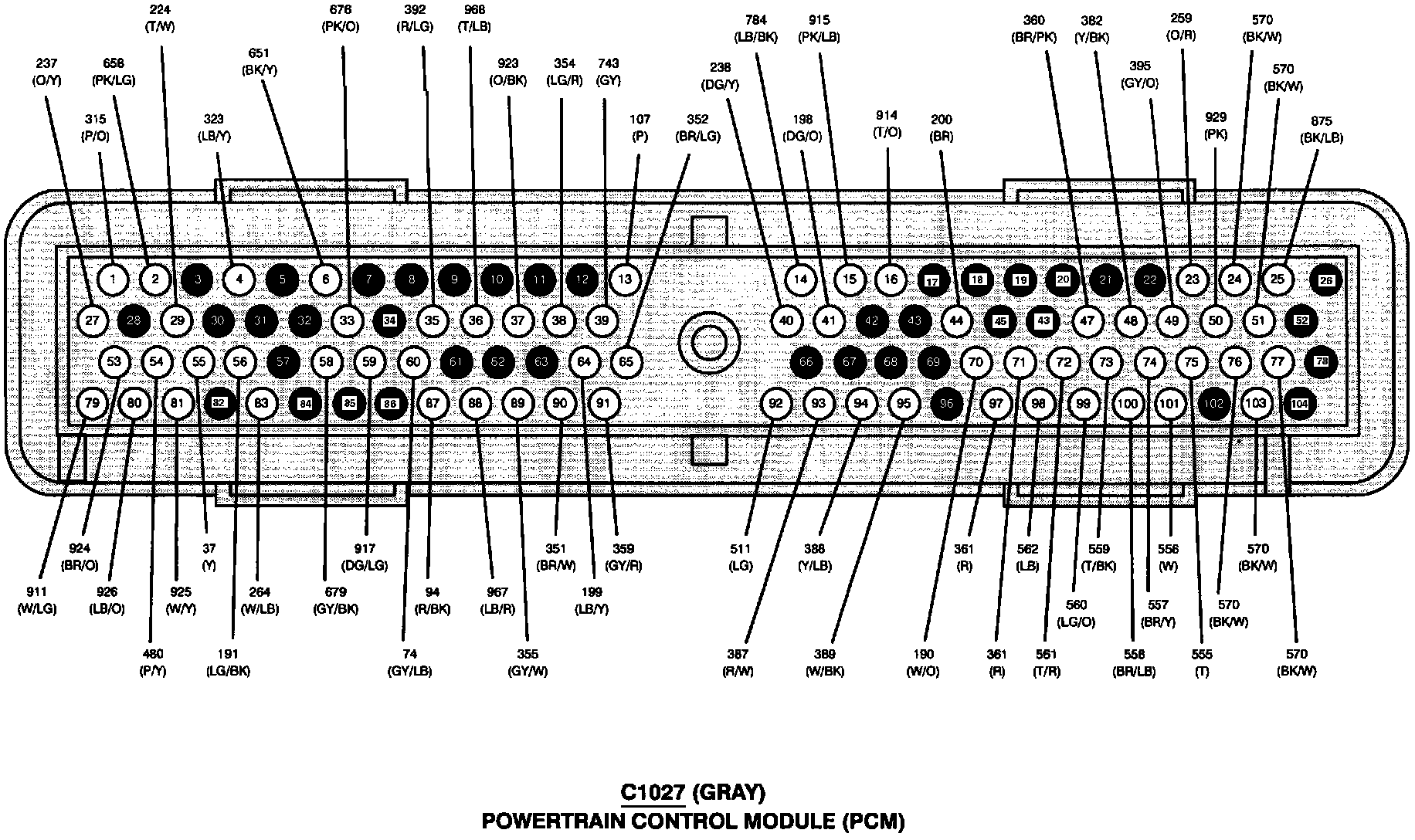

Powertrain Control Module (C1027) (Part 1 Of 2):
Powertrain Control Module (Part 2 Of 2):
