Ground Diagrams (By Component Name)

Grounds (G101 & G103):

Battery
Data Link Connector
Mass Air Flow Sensor
Powertrain Control Module
Right Front Park/Turn Lamp
Right Front Side Marker Lamps
Right Headlamp

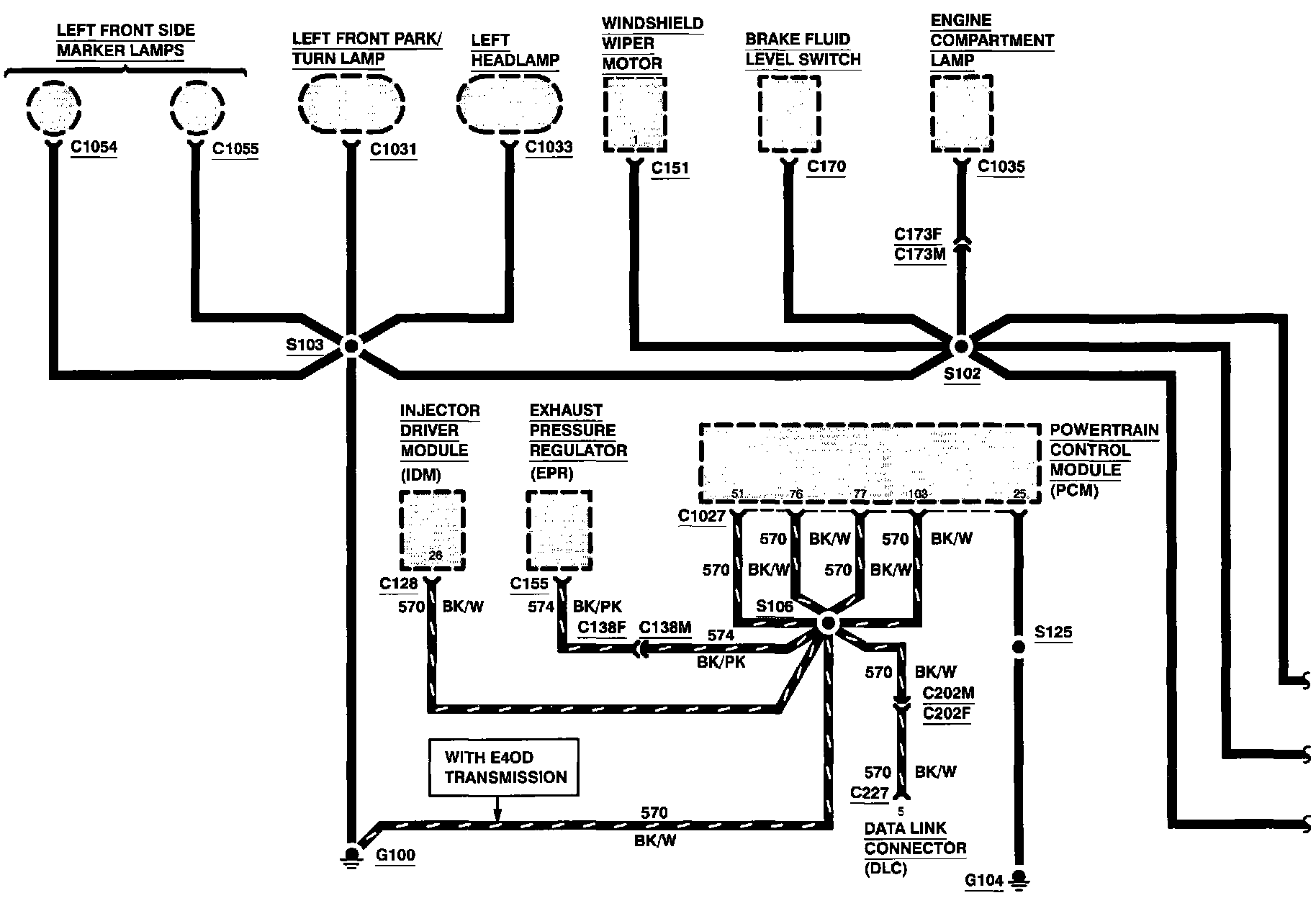

Grounds (G100 & G104):

Brake Fluid Level Switch
Data Link Connector
Engine Compartment Lamp
Exhaust Pressure Regulator
Injector Driver Module
Left Front Park/Turn Lamp
Left Front Side Marker Lamps
Left Headlamp
Powertrain Control Module
Windshield Wiper Motor

Grounds (G100):

Engine Compartment Fuse Box
Front Tank Fuel Gauge Sender
Low Vacuum Warning Switch
PCM Power Relay
Rear Tank Fuel Gauge Sender
Trailer Backup Lamps Relay
Trailer Battery Charge Relay
Trailer Marker Lamps Relay
Trailer Relay Box

Grounds (G100):

Left Backup Lamp
Left Rear Park/Stop/Turn Lamp
License Lamps
Right Backup Lamp
Right Rear Park/Stop/Turn Lamp

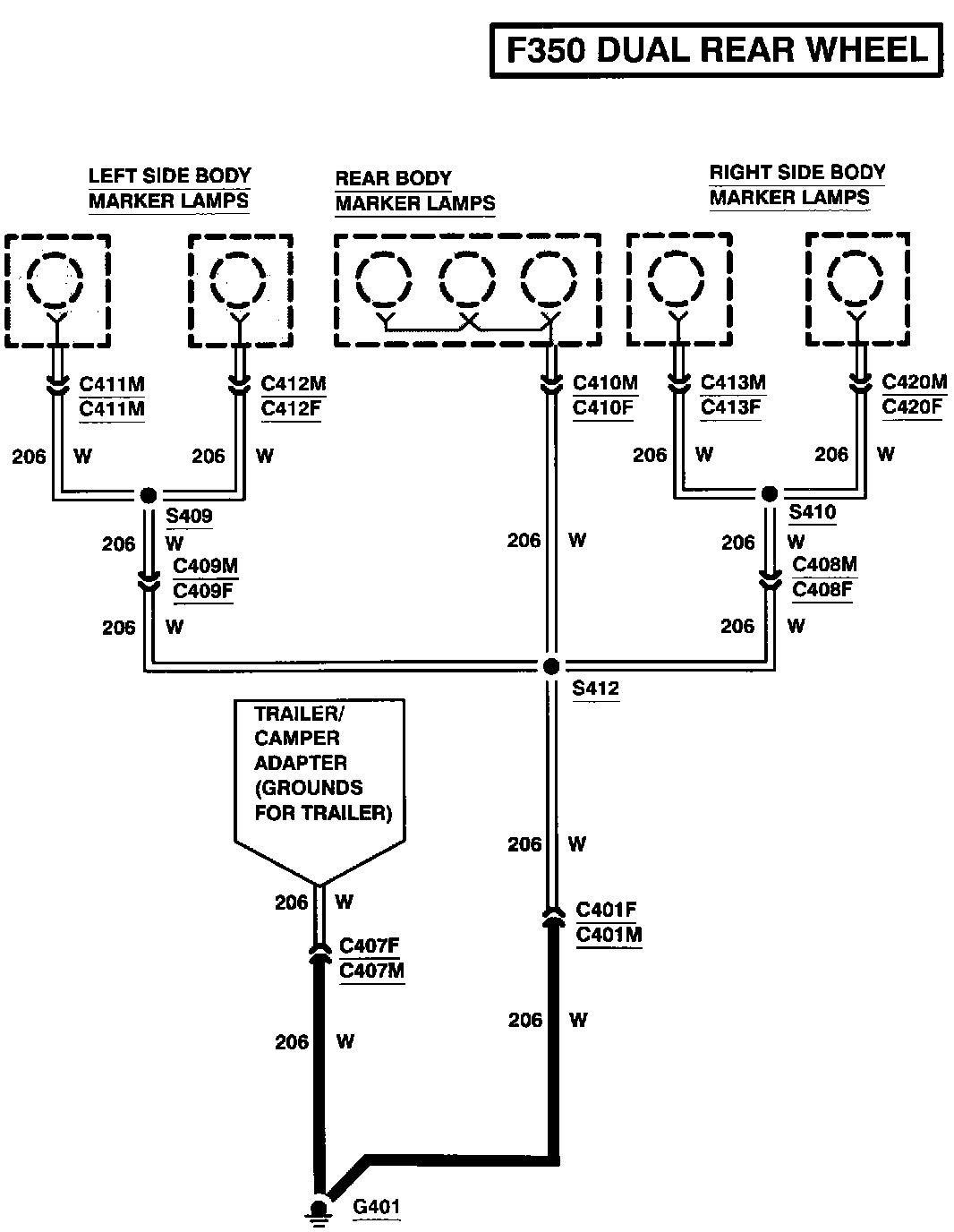

Grounds (G401):

Left Side Body Marker Lamps
Rear Body Marker Lamps
Right Side Body Marker Lamps

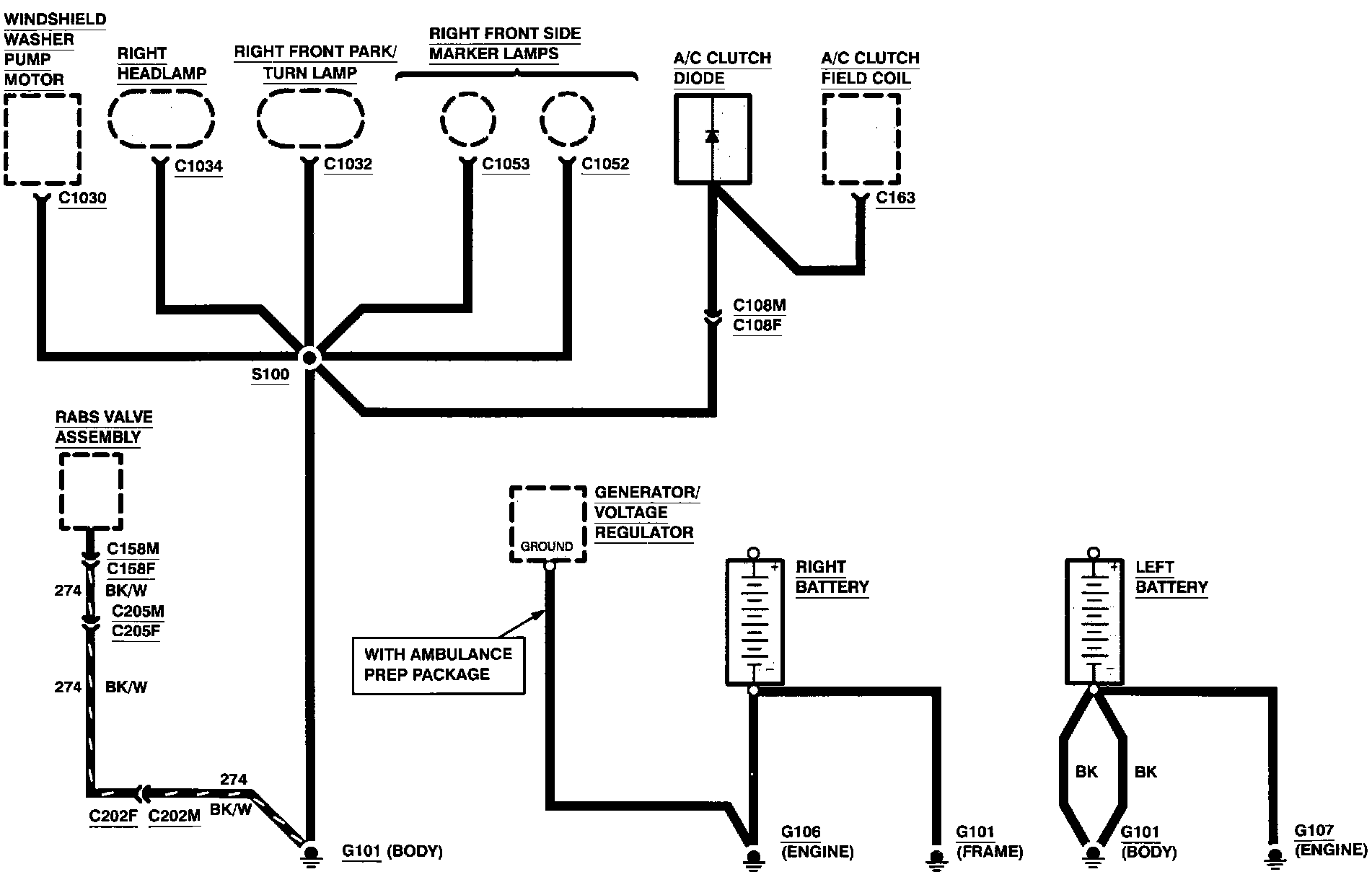

Grounds (G101, G106 & G107):

A/C Clutch Diode
A/C Clutch Field Coil
Generator/Voltage Regulator
Left Battery
RABS Valve Assembly
Right Battery
Right Font Side Marker Lamps
Right Front Park/Turn Lamp
Right Headlamp
Windshield Washer Pump Motor

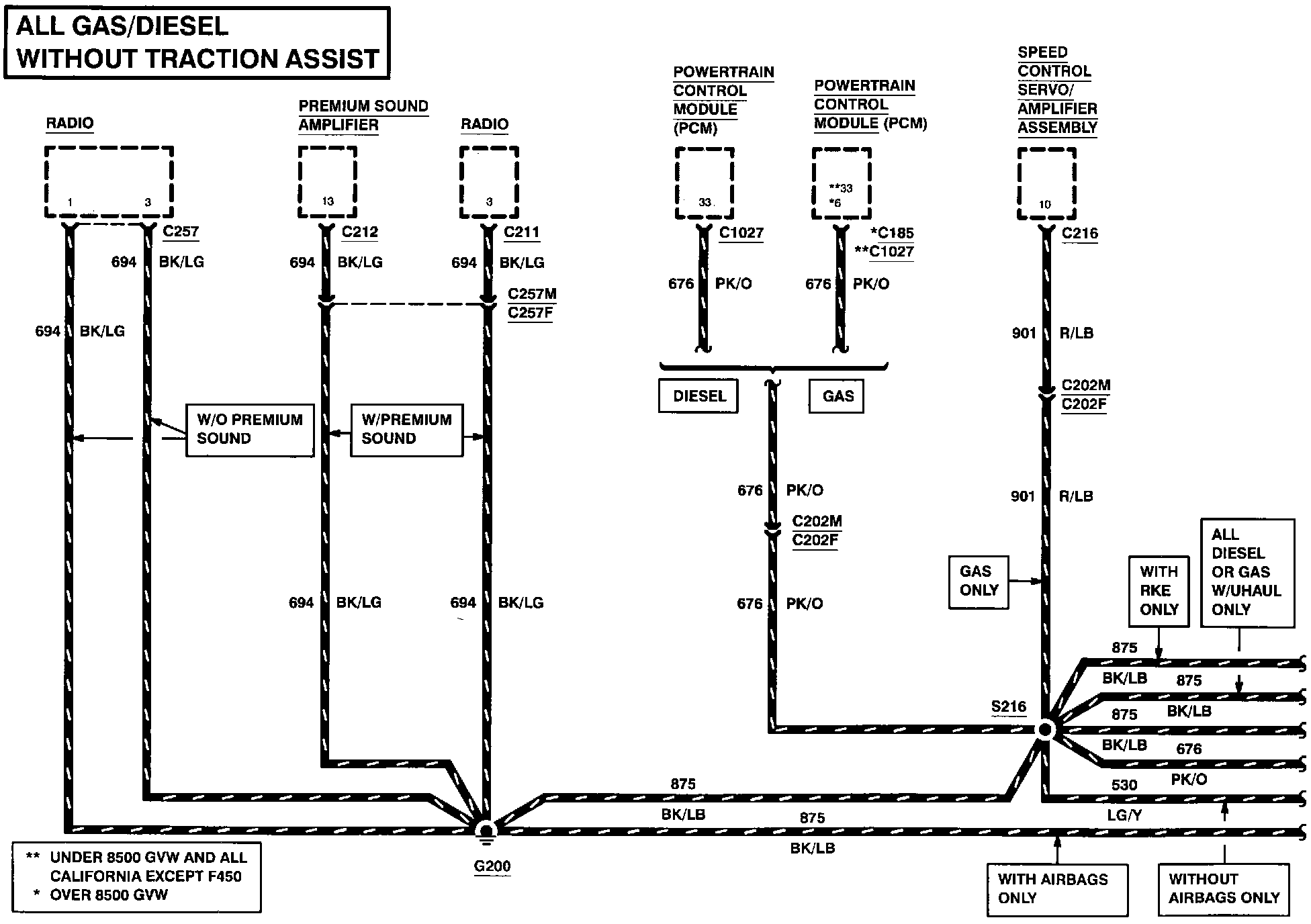

Grounds (G200):

Powertrain Control Module
Premium Sound Amplifier
Radio
Speed Control Servo/Amplifier Assembly

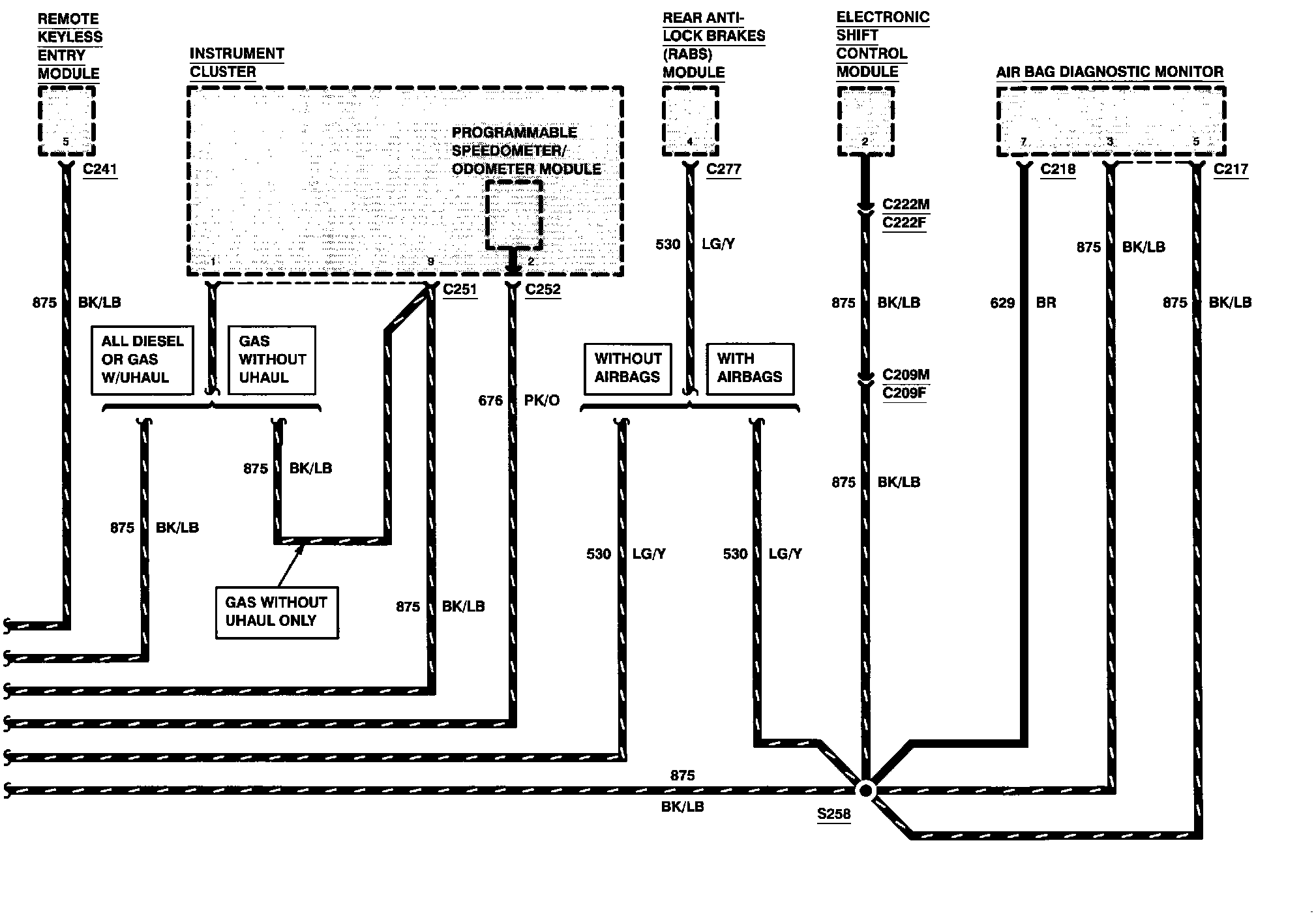

Grounds (G200):

Air Bag Diagnostic Monitor
Electronic Shift Control Module
Instrument Cluster
Programmable Speedometer/Odometer Module
Rear Anti-Lock Brakes Module
Remote Keyless Entry Module

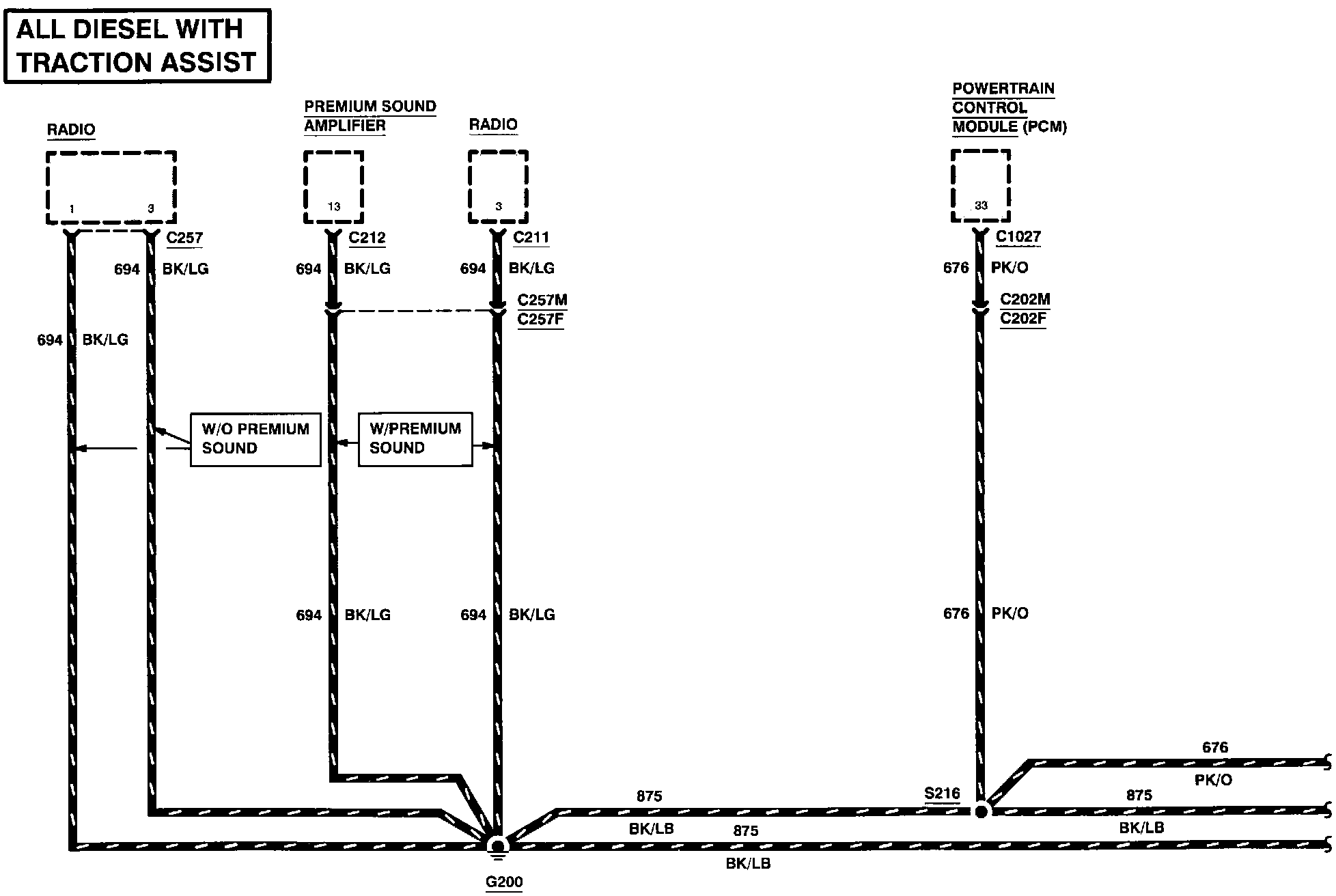

Grounds (G200):

Powertrain Control Module
Premium Sound Amplifier
Radio

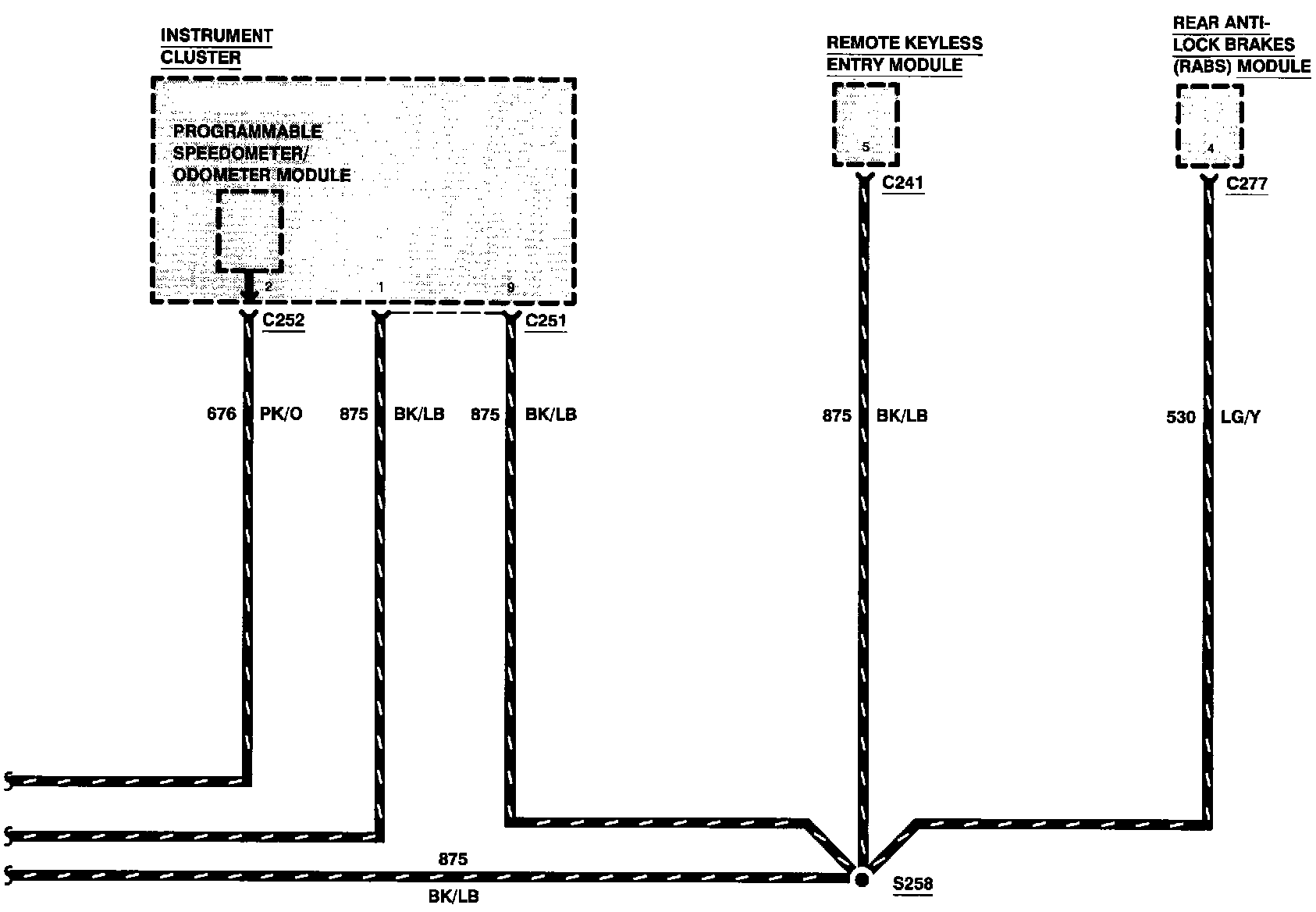

Grounds (G200):

Instrument Cluster
Programmable/Speedometer/Odometer Module
Rear Anti-Lock Brakes Module
Remote Keyless Entry Module

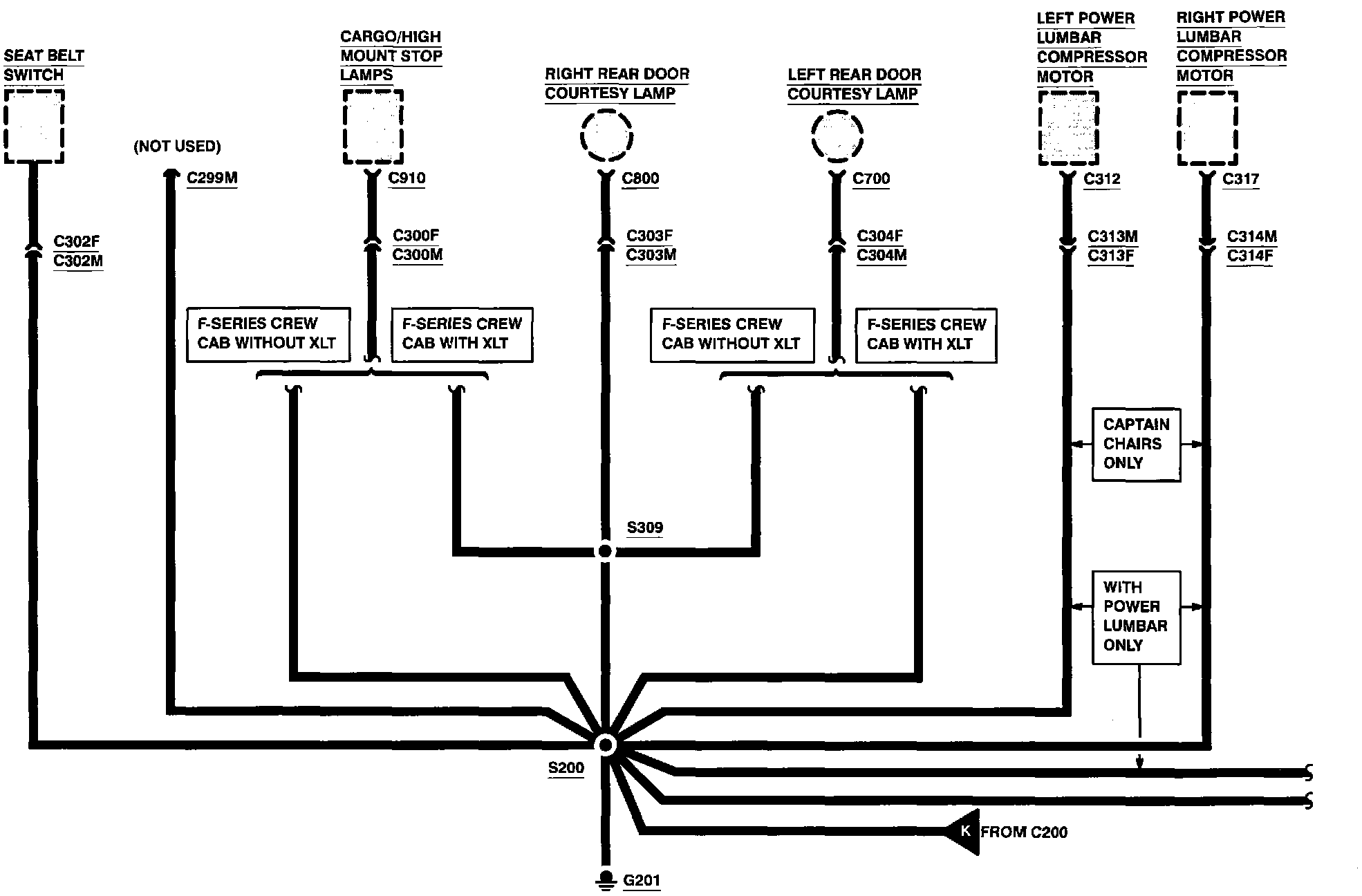

Grounds (G201):

Cargo/Hi Mount Stop Lamps
Left Power Lumbar Compressor Motor
Left Rear Door Courtesy Lamp
Right Power Lumbar Compressor Motor
Right Rear Door Courtesy Lamp
Seat Belt Switch

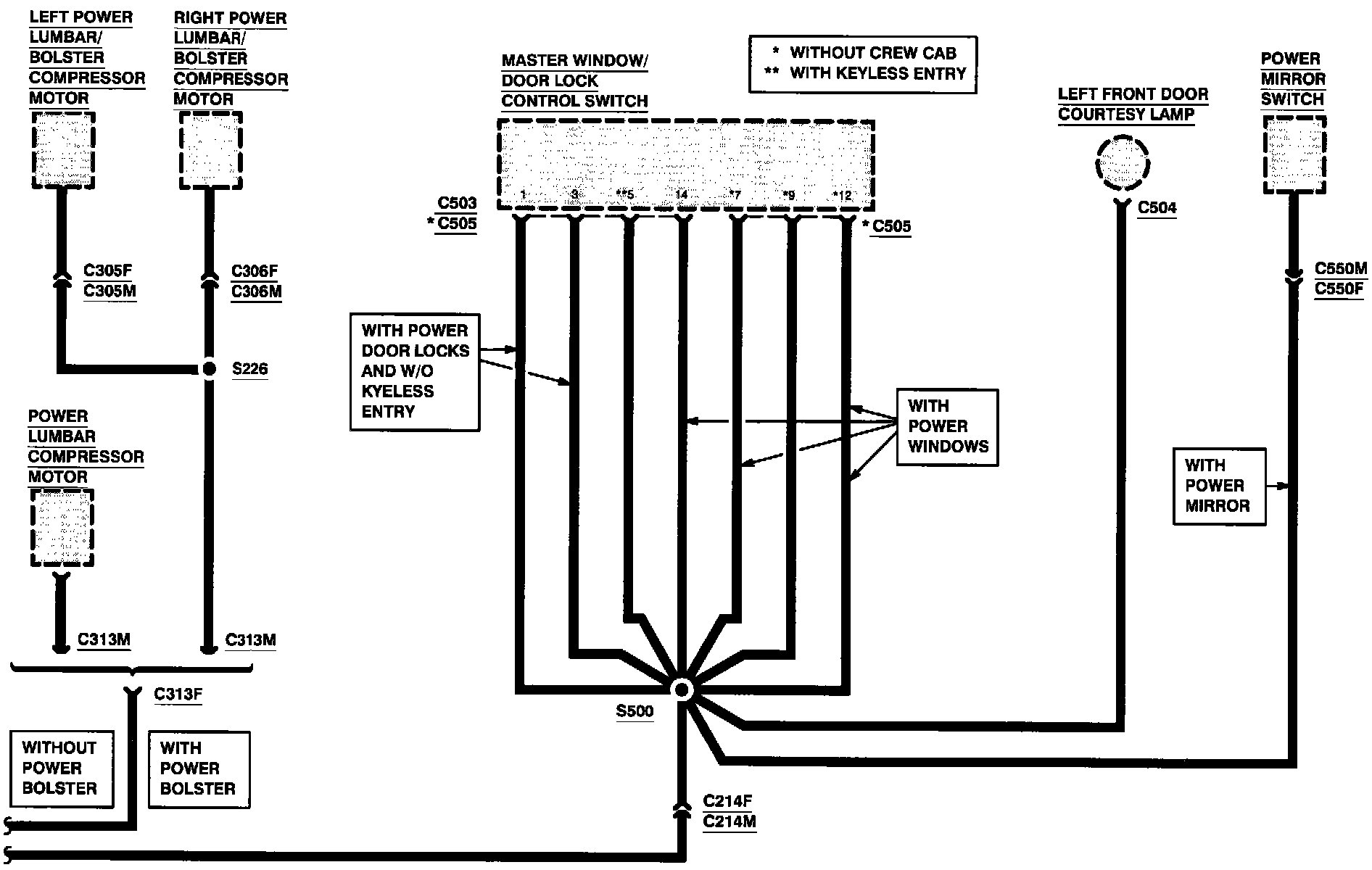

Grounds (G201):

Left Front Door Courtesy Lamp
Left Power Lumbar/Bolster Compressor Motor
Master Window/Door Lock Control Switch
Power Lumbar Compressor Motor
Power Mirror Switch
Right Power Lumbar/Bolster Compressor Motor

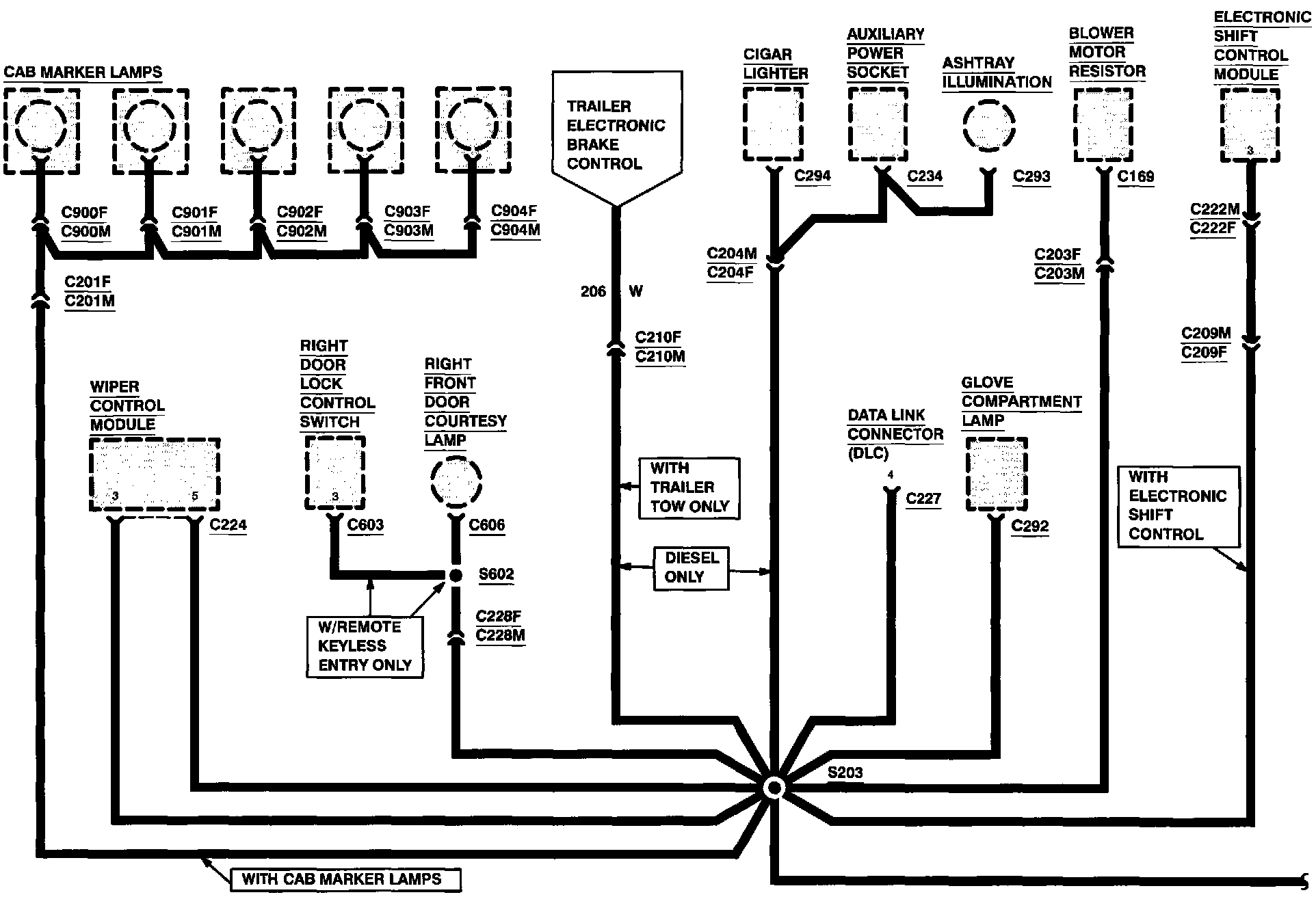

Grounds (G201):

Astray Illumination
Auxiliary Power Socket
Blower Motor Resistor
Cab Marker Lamps
Cigar Lighter
Data Link Connector
Electronic Shift Control Module
Glove Compartment Lamp
Right Door Lock Control Switch
Right Front Door Courtesy Lamp
Wiper Control Module

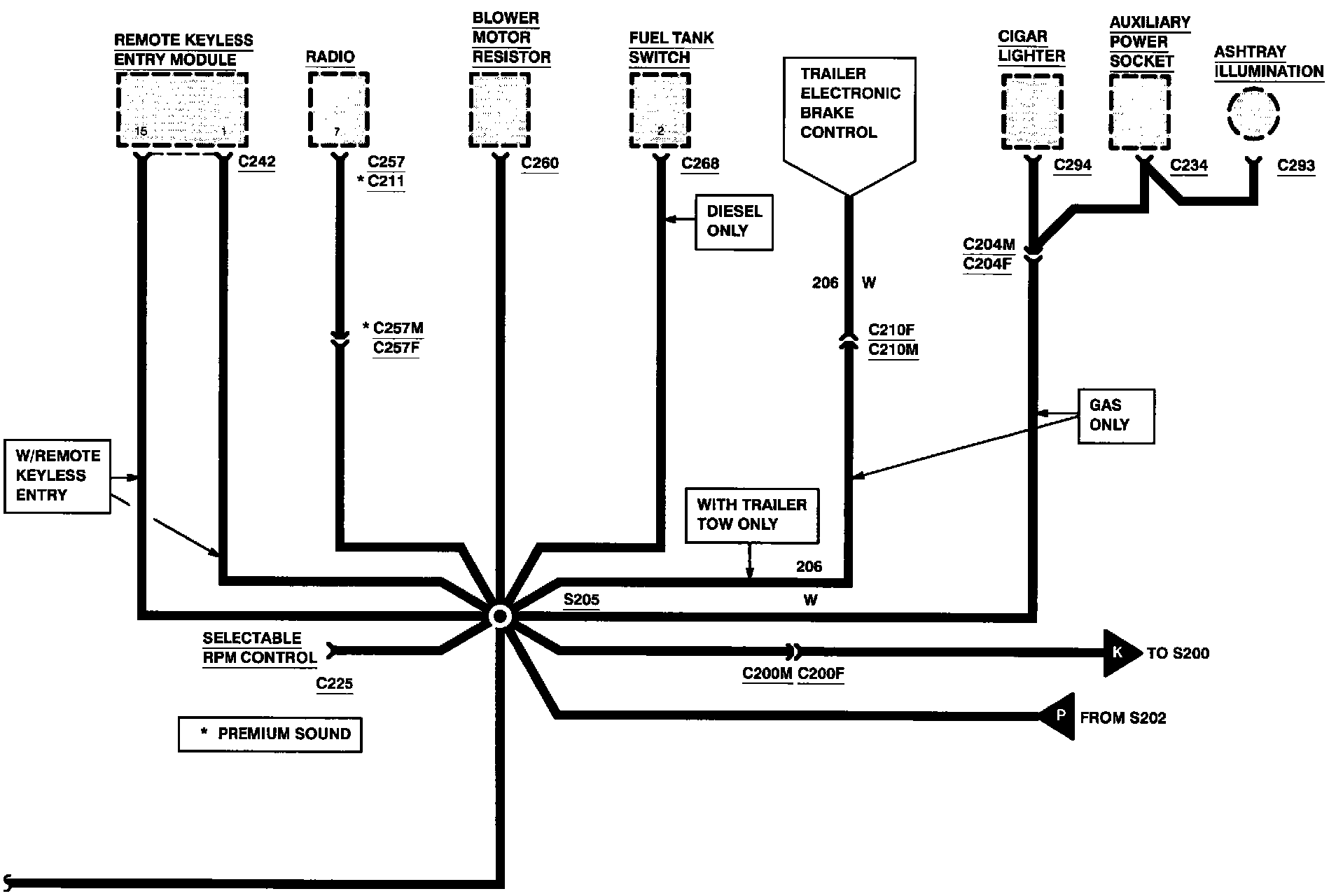

Grounds (G201):

Ashtray Illumination
Auxiliary Power Socket
Blower Motor Resistor
Cigar Lighter
Fuel Tank Switch
Radio
Remote Keyless Entry Module

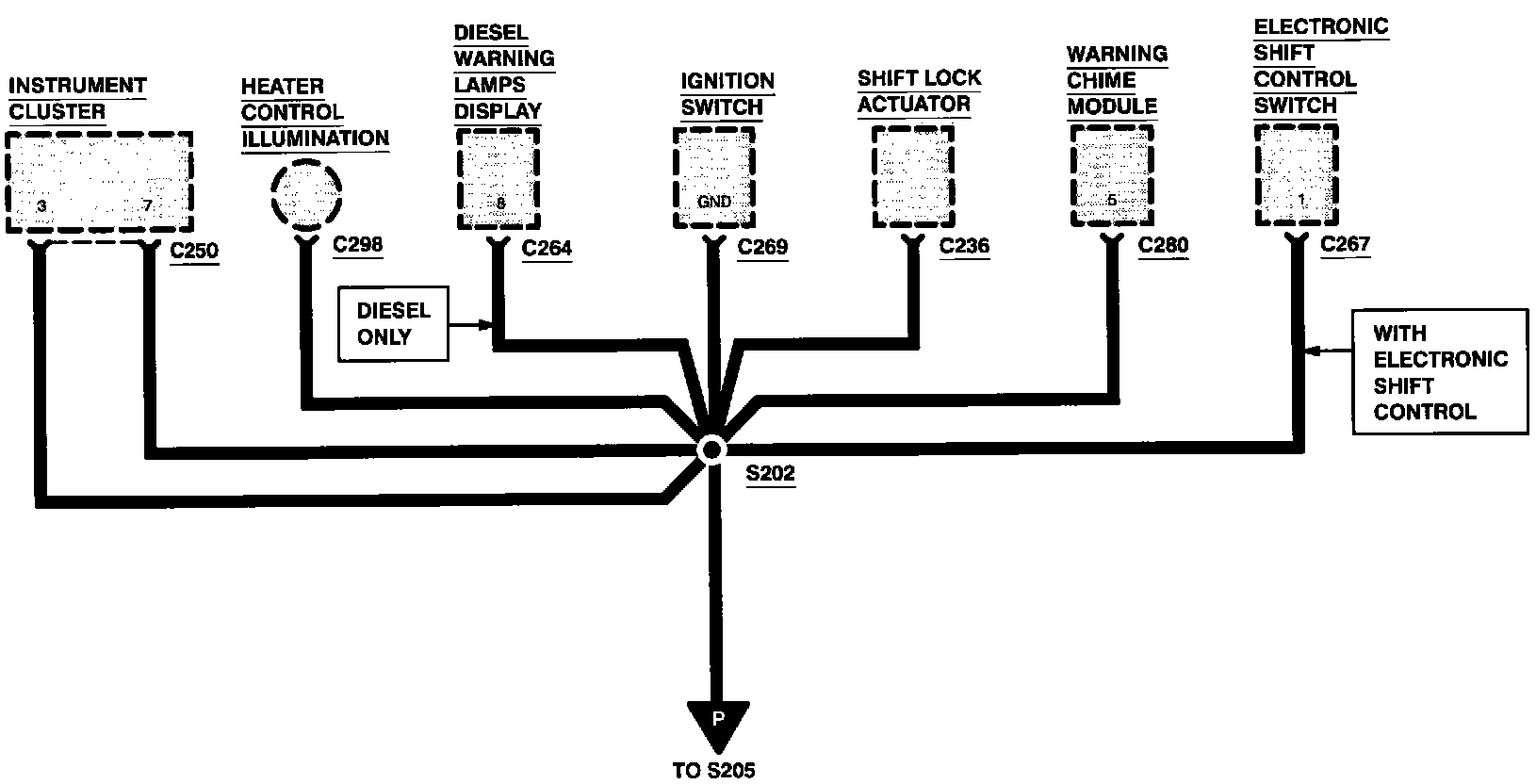

Grounds (G201):

Diesel Warning Lamps Display
Electronic Shift Control Switch
Heater Control Illumination
Ignition Switch
Instrument Cluster
Shift Lock Actuator
Warning Chime Module
Warning Chime Actuator
