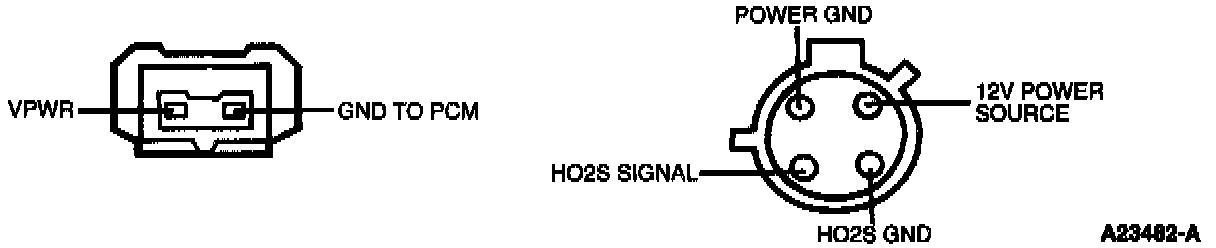

Pinpoint Test Schematics

Test Pin 29 -- HO2S
Wire Color: GY/LB

Test Pin 49/46 -- HO2S GND
Wire Color: O, GY/R

Test Pin 58 -- Bank 1
Wire Color: T

Test Pin 59 -- Bank 2
Wire Color: W

Test Pin 37/57 -- VPWR
Wire Color: R
