Engine Views

Engine View:

A/C HIGH PRESSURE CUT OUT SWITCH
CANISTER PURGE SOLENOID
DELTA PRESSURE FEEDBACK EGR SENSOR
DISTRIBUTOR
EGR CONTROL SOLENOID
ENGINE COOLANT TEMPERATURE SENSOR
FUEL INJECTORS
IDLE AIR CONTROL VALVE
IGNITION COIL
IGNITION CONTROL MODULE
INTAKE AIR TEMPERATURE SENSOR
LEFT CRASH SENSOR
MANIFOLD ABSOLUTE PRESSURE SENSOR
POWERTRAIN CONTROL MODULE
RADIO CAPACITOR
REAR ANTI-LOCK BRAKE SYSTEM DATA LINK CONNECTOR
SECONDARY AIR INJECTION BYPASS SOLENOID
SECONDARY AIR INJECTION DIVERTER SOLENOID
SPARK OUT CHECK CONNECTOR
STARTER MOTOR
STARTER RELAY
STARTER SOLENOID
THROTTLE POSITION SENSOR
VIP DATA LINK CONNECTOR

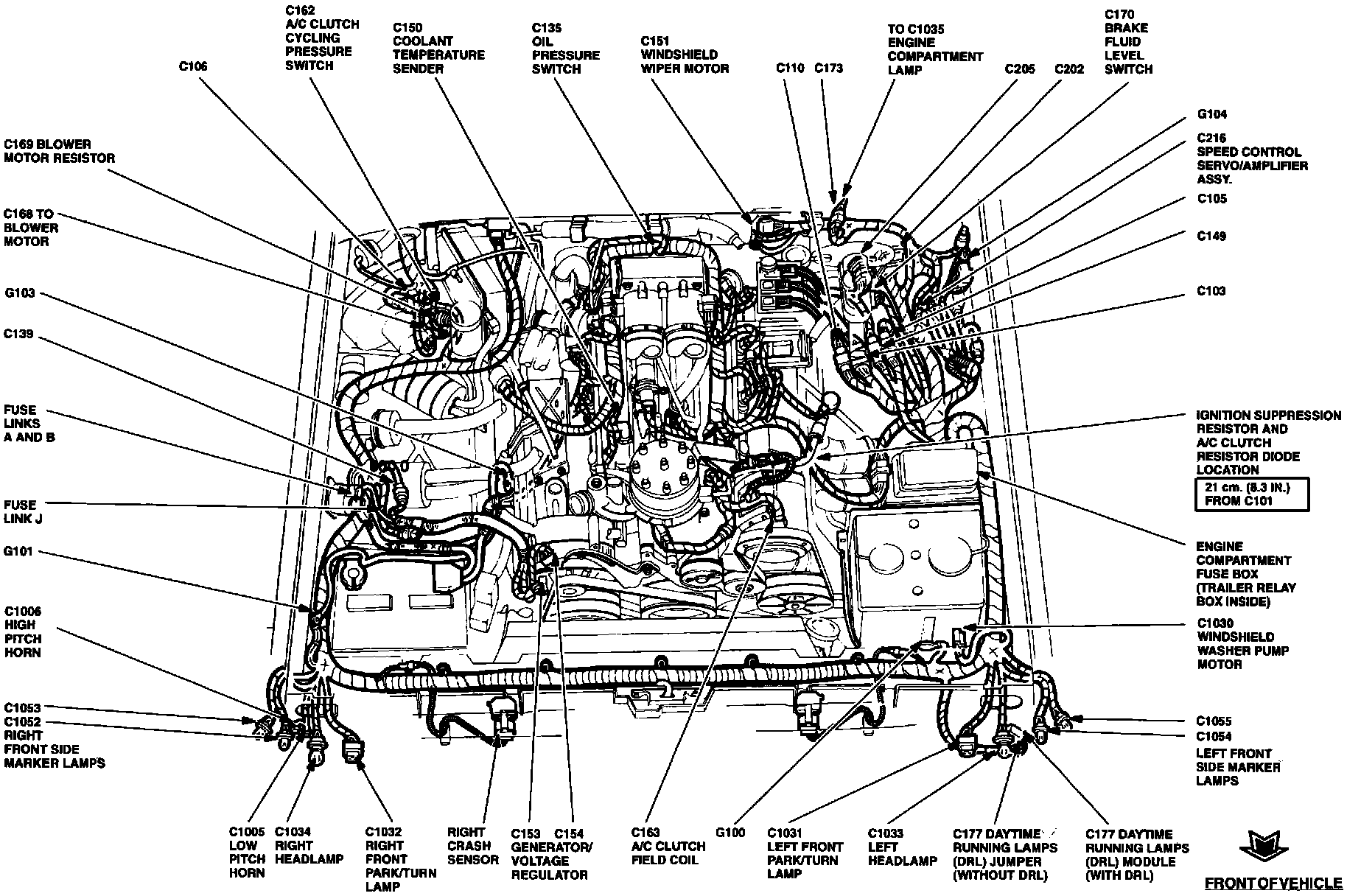

Engine View:

A/C CLUTCH CYCLING PRESSURE SWITCH
A/C CLUTCH FIELD COIL
A/C CLUTCH RESISTOR DIODE
BLOWER MOTOR
BLOWER MOTOR RESISTOR
BRAKE FLUID LEVEL SWITCH
COOLANT TEMPERATURE SENDER
DAYTIME RUNNING LAMPS JUMPER
DAYTIME RUNNING LAMPS MODULE
ENGINE COMPARTMENT FUSE BOX
ENGINE COMPARTMENT LAMP
FUSE LINK A
FUSE LINK B
FUSE LINK J
GENERATOR/VOLTAGE REGULATOR
HIGH PITCH HORN
IGNITION SUPPRESSION RESISTOR
LEFT FRONT PARK/TURN LAMP
LEFT FRONT SIDE MARKER LAMPS
LEFT HEADLAMP
LOW PITCH HORN
OIL PRESSURE SWITCH
RIGHT CRASH SENSOR
RIGHT FRONT PARK/TURN LAMP
RIGHT FRONT SIDE MARKER LAMPS
RIGHT HEADLAMP
SPEED CONTROL SERVO/AMPLIFIER ASSEMBLY
TRAILER RELAY BOX
WINDSHIELD WASHER PUMP MOTOR
WINDSHIELD WIPER MOTOR
