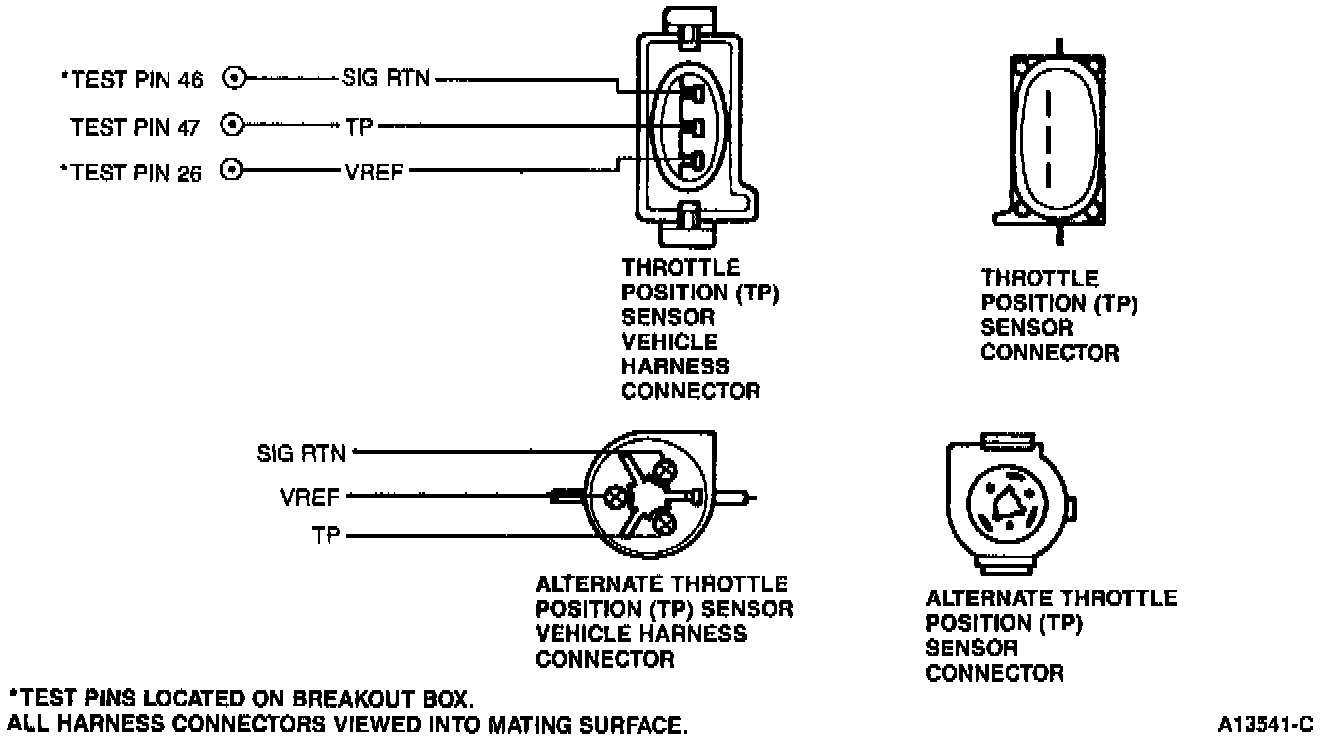

Pinpoint Test Schematics





Test Pin 46 -- SIG RTN
Wire Color: GY/R

Test Pin 26 -- VREF
Wire Color: BR/W

Test Pin 47 -- TP
Wire Color: GY/W
