Pinpoint Test Schematics

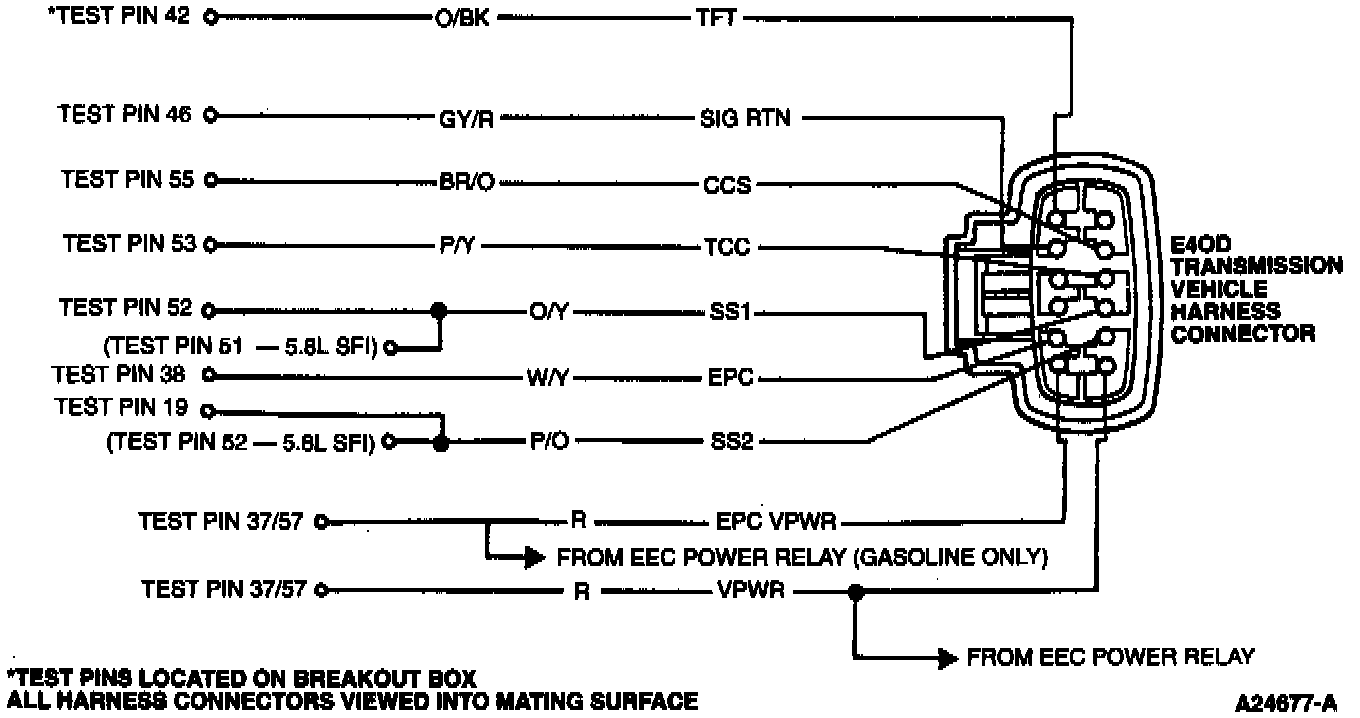

Vehicle Harness Connector

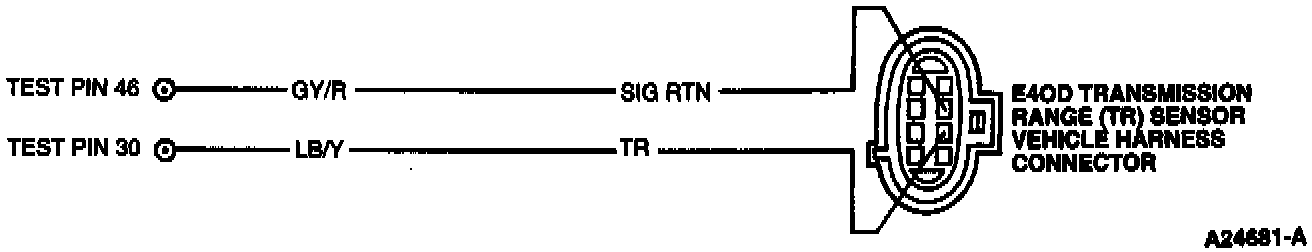

E4OD Transmission Range Sensor Connector

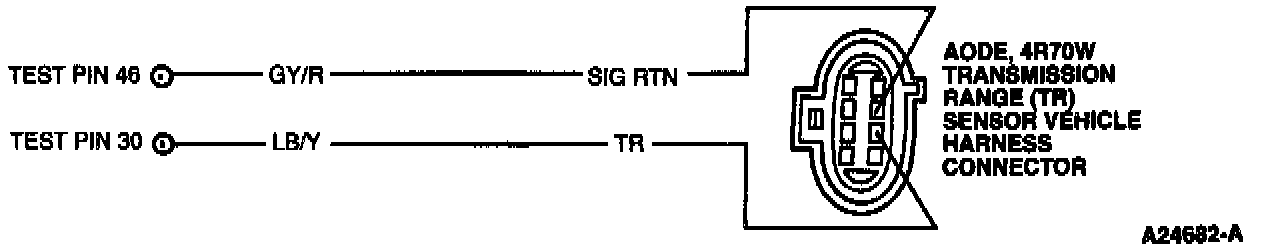

AODE, 4R70W Transmission Range Sensor Connector
