Home
>>
Ford
>>
1996
>>
Mustang V8-4.6L DOHC
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Diagrams (By Diagram Number)
>>
G105
G105

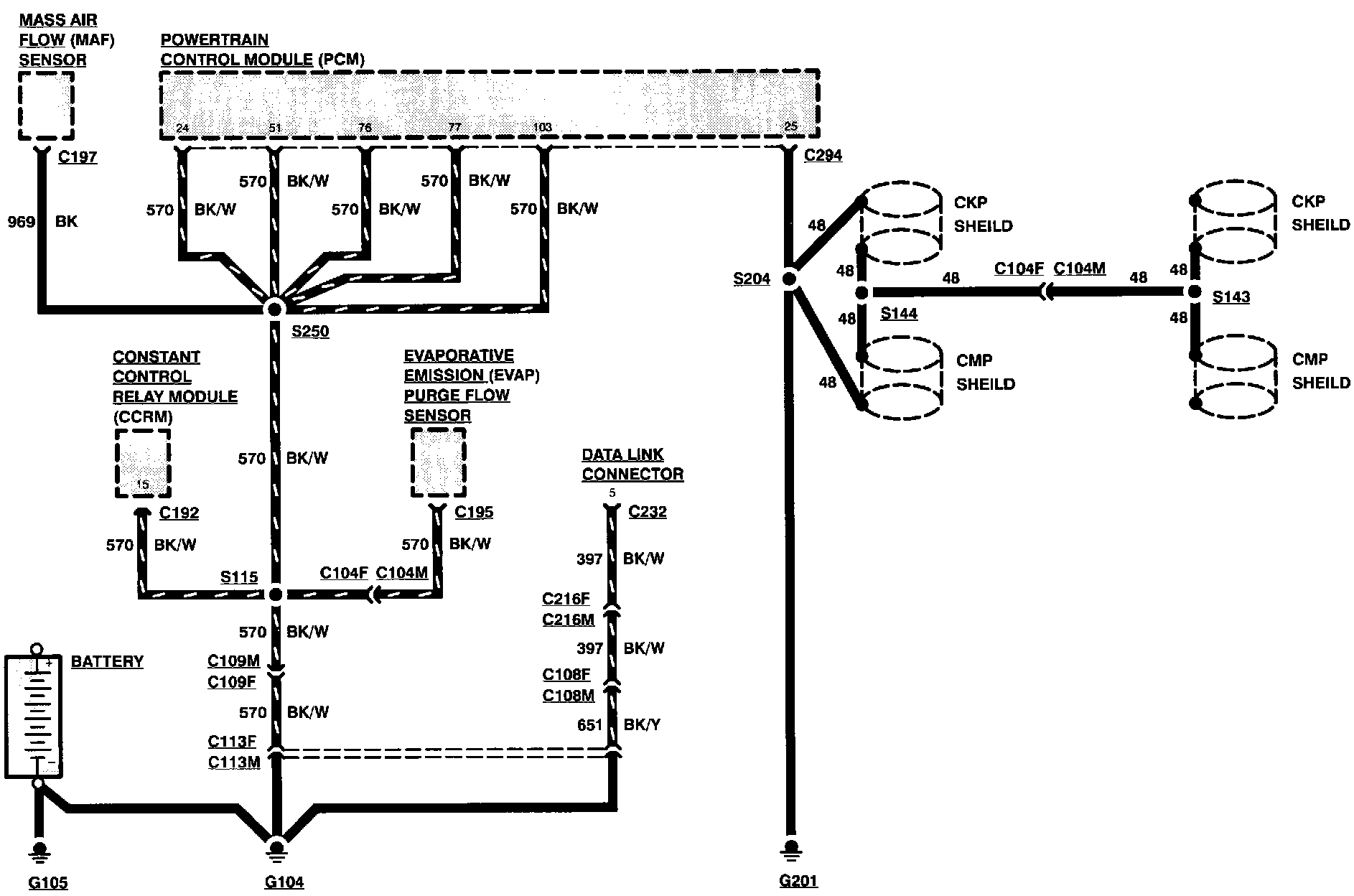

Grounds (G105,G104,G201):
