TB - Trans. Control Switch / Trans. Control Indicator Lamp
>>

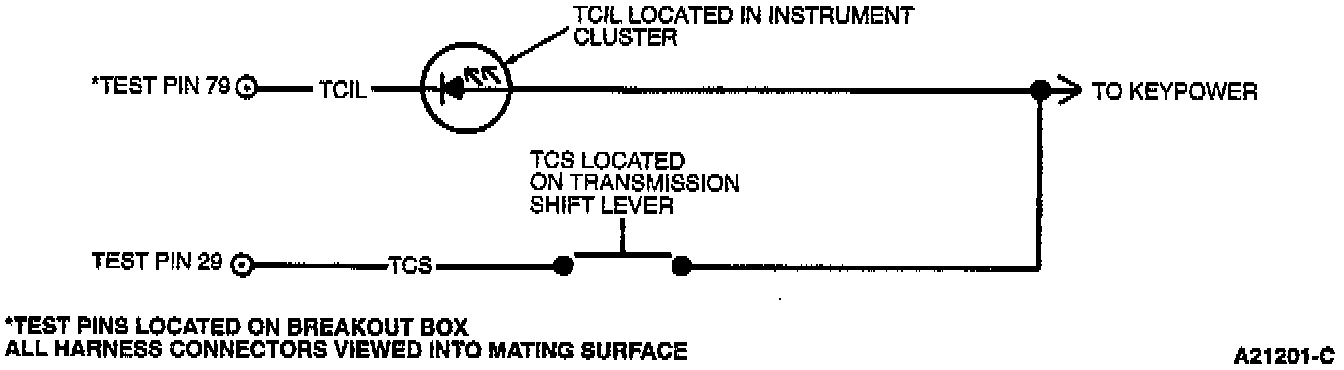

Pinpoint Test Schematics
Pinpoint Test Schematics
All Others (Except Contour/Mystique):
