Ground Diagrams (By Component Name)

Grounds (G100, G101, G104, G106):

4 Wheel Anti-Lock Brake System Module
Battery
Camshaft Position Sensor
Engine Cleaner Assembly
Engine Compartment Fuel/Relay Box
Mass Air Flow Sensor
Powertrain Control Module
Purge Flow Sensor
Rear Anti-Lock Brake System Proportion Valve Switch Assembly

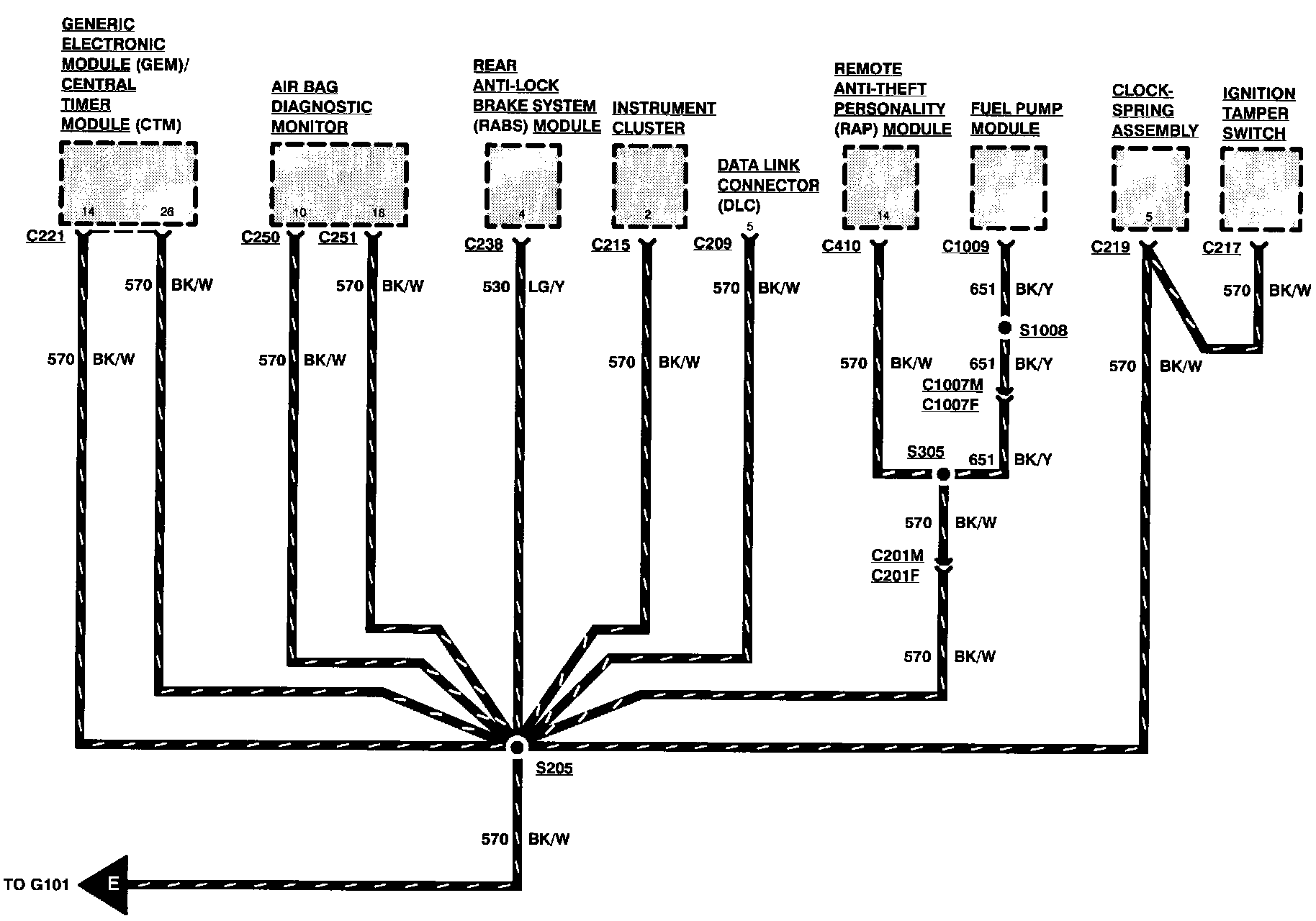

Grounds (G100, G101, G104, G106):

Air Bag Diagnostic Monitor
Clockspring Assembly
Data Link Connector
Fuel Pump Module
Generic Electronic Module /Central Timer Module
Ignition Tamper Switch
Instrument Cluster
Rear Anti-Lock Brake System Module
Remote Anti-Theft Personality Module

Grounds (G102, 103):

4 Wheel Anti-Lock Brake System Hydraulic Unit
4 Wheel Anti-Lock Brake System Main Relay
Engine Compartment Lamp
Generic Electronic Module
Powertrain Control Module
Relay Box #3
[1][2]Transmission Range Sensor
Windshield Wiper Motor

Grounds (G103):

A/C Clutch Diode
A/C Clutch Field Coil
Brake Fluid Level Switch
Flasher
Ignition Switch
Instrument Cluster
Instrument Illumination Dimming Module
Left Fog Lamp
Left Front Park/Turn Lamp
Left Headlamp
Main Light Switch
Powertrain Control Module
Shift Lock Actuator
Vehicle Speed Sensor

Grounds (G103):

4WD Mode Switch
All Lock Relay
All Unlock Relay
Auxiliary Power Socket
Blend Door Actuator
Cigar Lighter
Electronic Shift Control Module
Fog Lamp Switch
Generic Electronic Module/Central Timer Module
Heater Or A/C-Heater Control Assembly
Instrument Cluster
Passive De-Activation Module
Power Window Relay
Radio
Relay Box #1
Right Door Ajar Switch
Right Door Disarm Switch
Right Door Lock Switch
Right Illuminated Entry Switch

Grounds (G105, G200):

Anti-Theft Hood Switch
Left Backup Lamp
Left Door Ajar Switch
Left Door Disarm Switch
Left Door Lock Switch
Left Illuminated Entry Switch
Left Rear Park/Stop
Left Rear Turn Lamp
Master Window Control Switch
Power Mirror Switch
Right Backup Lamp Right Rear Turn Lamp
Right Fog Lamp
Right Front Park/Turn Lamp
Right Headlamp
Right Rear Park/Stop Lamp
Windshield Washer Pump

Grounds (G200, G201):

Amplifier
CD Changer
Fuel Pump Module
Left License Lamp
Left Power Bolster Lumbar Motor
Left Seat Control Switch
Outside Cargo/Hi Mount Stop Lamp
Radio
Right License Lamp
Right Power Lumbar Motor
Seat Belt Switch
