Fuse 12
Fuse 12 - protects the following circuits:
^
Anti-Theft
^
Brake ON/OFF Switch
^
Cigar Lighter
^
Data Link Connector
^
Door Lock
^
Mobile Telephone
^
Multi-Function Switch
^
Power Seats
^
Radio
^
Remote Keyless Entry
^
Trunk Lid Release

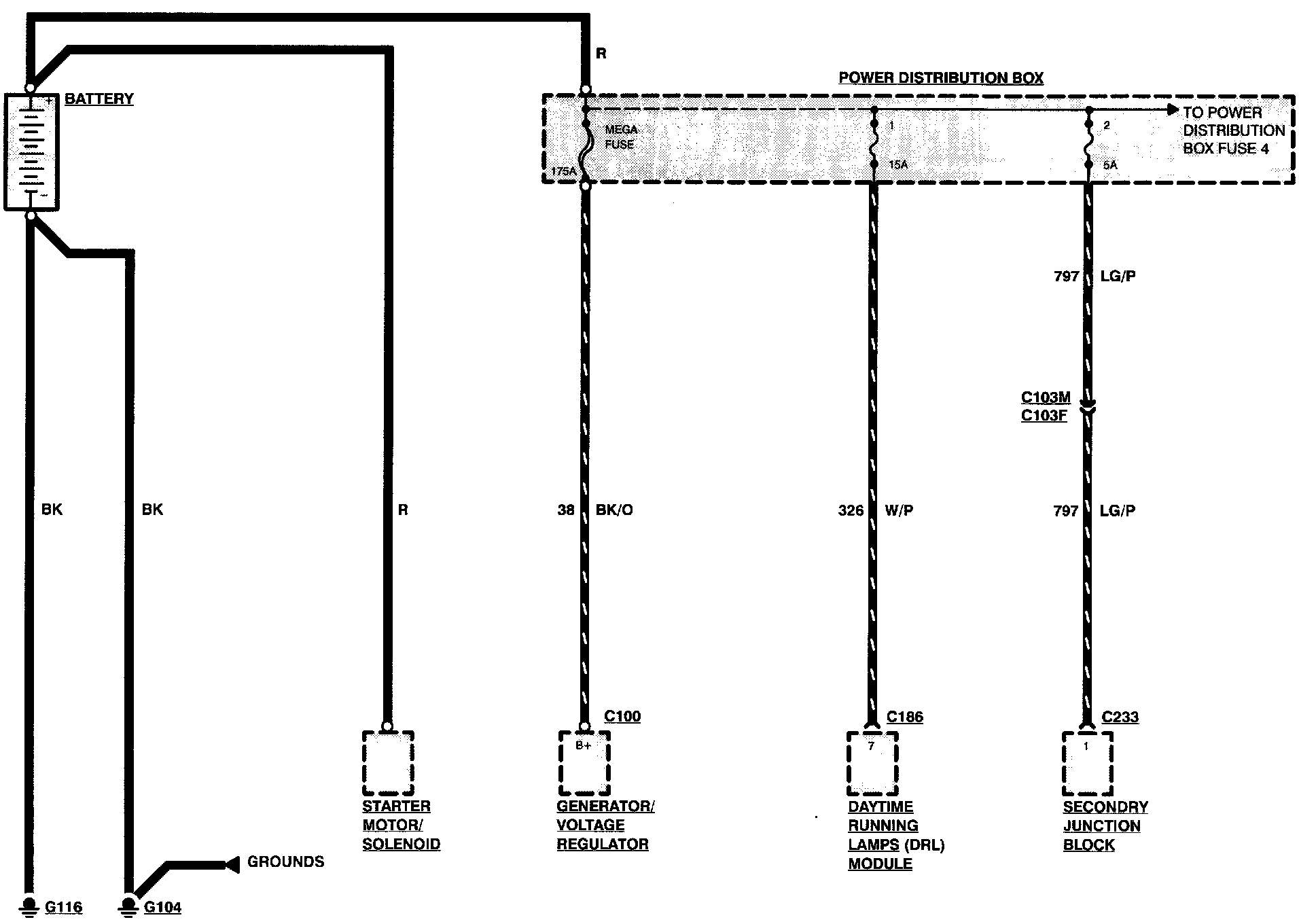

Power Distribution:

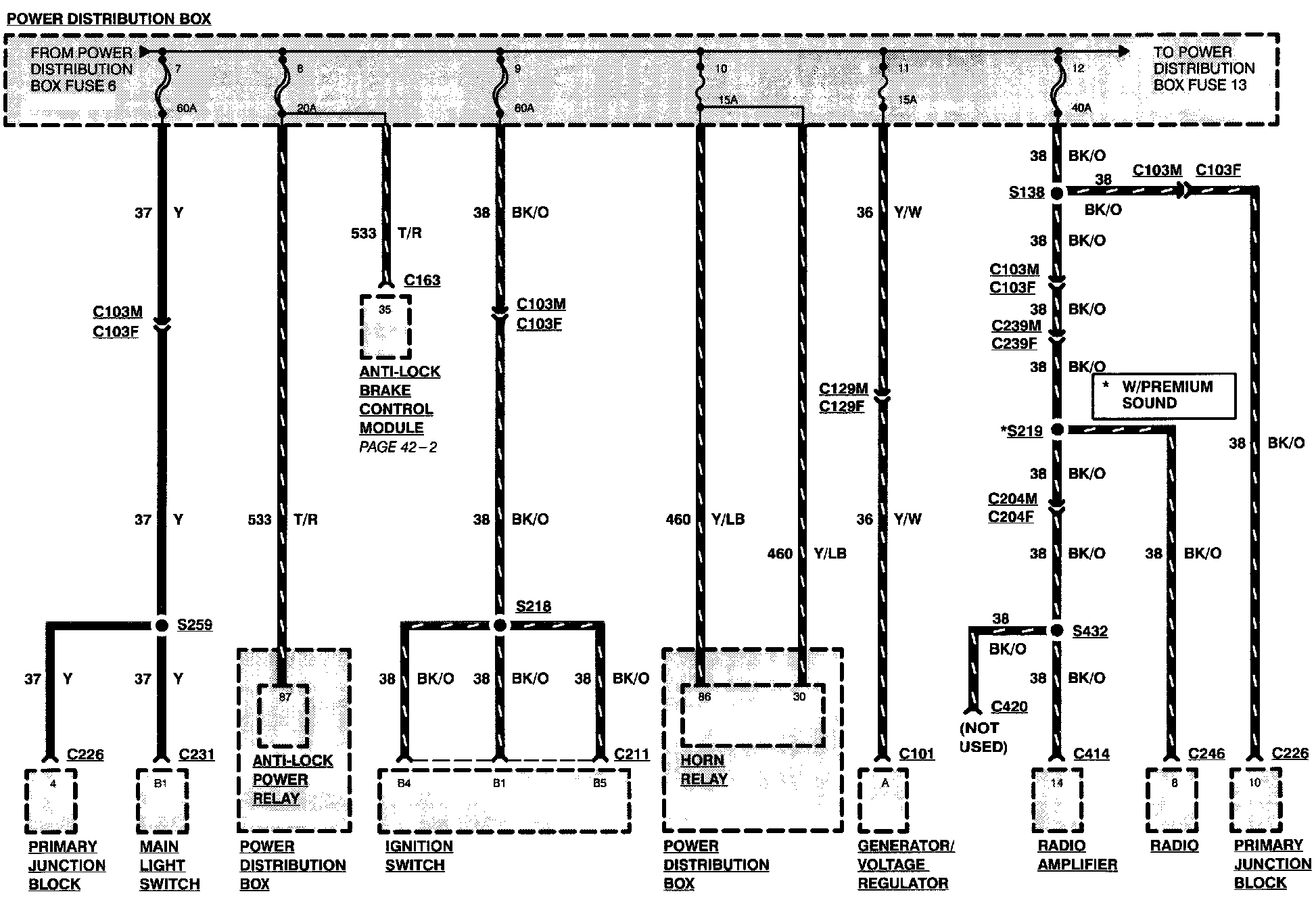

Power Distribution:
