EGR Tube: Service and Repair
Removal and Installation
1. Remove EGR valve.
2. Disconnect EGR backpressure transducer hoses from EGR valve to exhaust manifold tube.

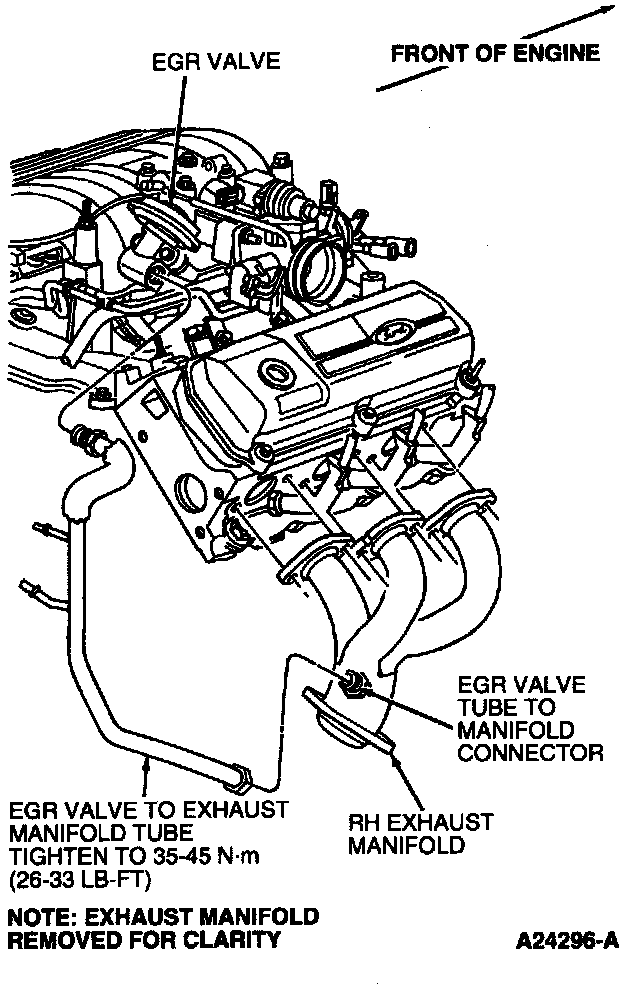

3. Disconnect EGR valve to exhaust manifold tube at EGR valve and EGR valve tube to manifold connector.
5. To install, reverse removal procedure.
^ Tighten EGR valve to exhaust manifold tube nuts to 35-45 Nm (26-33 lb ft).
^ Tighten EGR valve tube to manifold connector to exhaust manifold to 45-65 Nm (33-48 lb ft), if removed.
