Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1997
>>
Aerostar 2WD V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
Air Bag Control Module

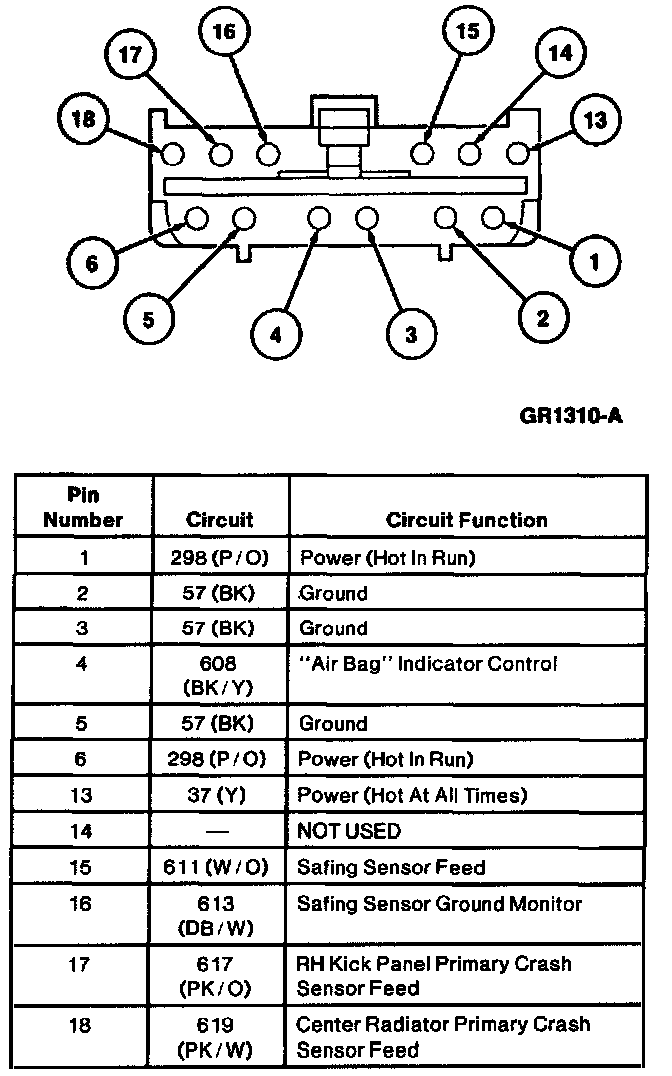

Gray Connector

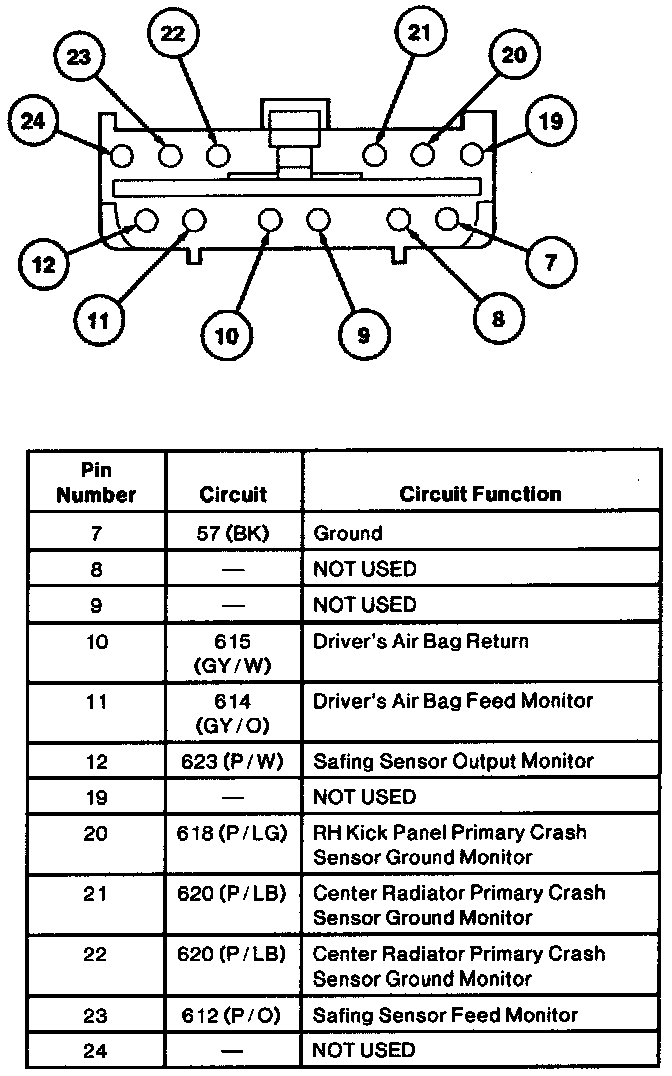

Black Connector
